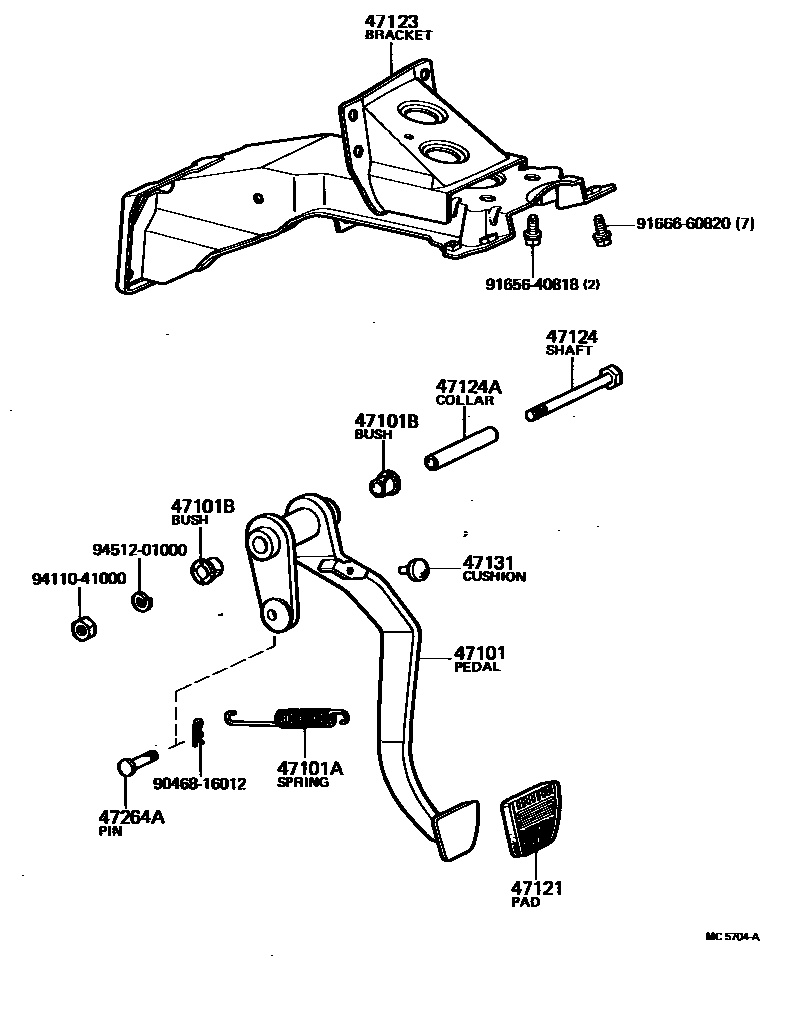

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-35160iRN3#,42..MTM197808-198008

main47101-35170iRN32,42..3FC197808-198008

main47101-35180iLN40,RN3#,4#..MTM198008-198307

main47101-35190iRN34,44..ATM198008-198307

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90506-14021iLN40,RN3#,4#197808-198307

47101BBUSH(FOR BRAKE PEDAL)

main90386-13007iLN40,RN3#,4#197808-198307

47121PAD, BRAKE PEDAL

main31321-14010iLN40,RN3#,4#..MTM197808-198307

main47121-12011iRN32,34,42,44..ATM197808-198307

sub47121-12020

47123BRACKET, BRAKE PEDAL

main55106-89112iRN3#,42197808-198008

main55106-89114iLN40,RN3#,4#198008-198307

47124SHAFT, BRAKE PEDAL

main90101-10480iLN40,RN3#,4#197808-198307

sub91552-81090

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main47144-35020iLN40,RN3#,4#197808-198307

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06008iLN40,RN3#,4#197808-198307

47264APIN(FOR PUSH ROD)

main90249-10048iLN40,RN3#,4#197808-198307

9046816012

main90468-16012

9165640818

main91656-40818

9166660820

main91666-60820

9411041000

main94110-41000

9451201000

main94512-01000

14 parts on this diagram · 1 diagram in section
