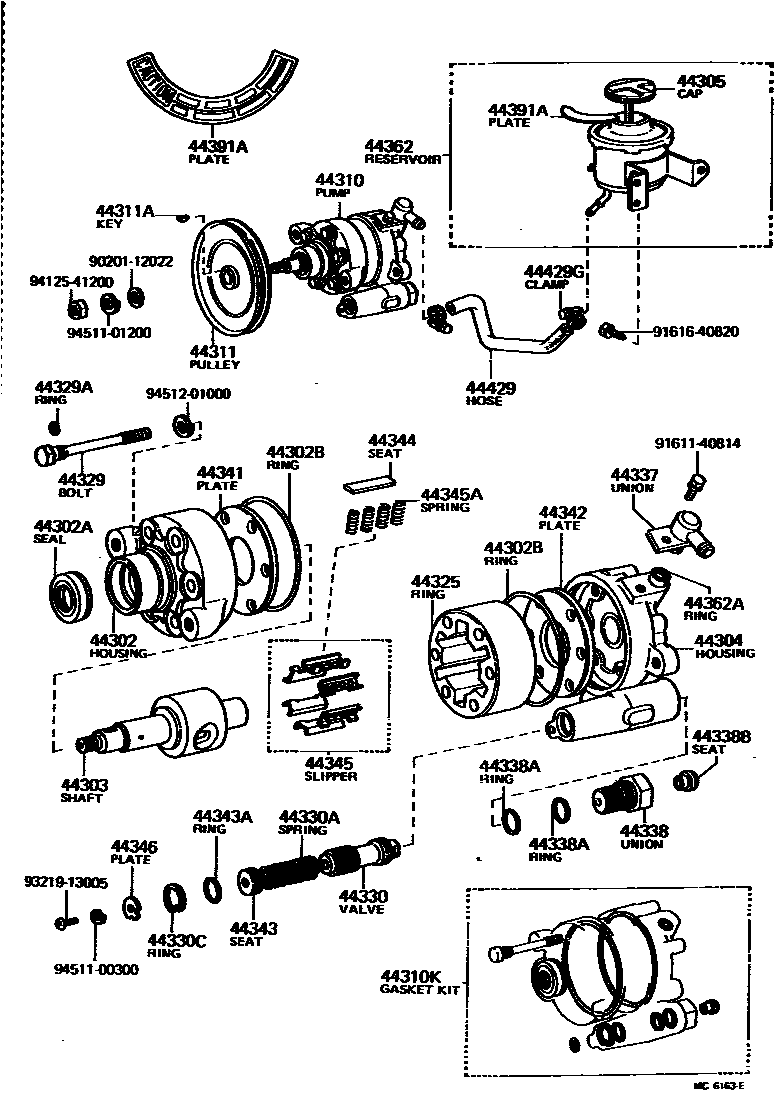

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1

44302HOUSING SUB-ASSY, VANE PUMP, FRONT

main44302-12010iRN3#,4#..MTM..(DLX,SR5)..HLF198008-198307

main44302-30020iRN37197901-198008

44302ASEAL, OIL, NO.1(FOR VANE PUMP HOUSING)

main90310-21034iRN37197901-198008

44302BRING, O, NO.1(FOR VANE PUMP HOUSING)

main90301-60001iRN3#,4#..(DLX,SR5)..HLF198008-198307

main90301-69170iRN37197901-198008

44303SHAFT SUB-ASSY, W/ROTOR

main44303-22011iRN37197901-198008

L=39.9825-39.9800

main44303-22021iRN37197901-198008

L=39.9775-39.9800

44304HOUSING SUB-ASSY, VANE PUMP, REAR

main44304-20020iRN37197901-198008

main44304-20030iRN3#,4#..MTM..(DLX,SR5)..HLF198008-198307

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-30020iRN3#,4#..MTM..(DLX,SR5)..HLF197901-198307

sub44305-22040

44310PUMP ASSY, VANE

main44320-20030iRN34,44..MTM..(DLX,SR5)..HLF198008-198104

main44320-22140iRN34,44..MTM..(DLX,SR5)..HLF198104-198307

main44320-35010iRN37197901-198008

main44320-35020iRN38,48198008-198108

main44320-35021iRN38,48198108-198307

44310KGASKET KIT, POWER STEERING PUMP

main04446-12011iRN3#,4#..MTM..(DLX,SR5)..HLF198008-198206

sub04446-22020

main04446-22020iRN34..4FC198206-198307

main04446-30010iRN37197901-198008

44311PULLEY, VANE PUMP

main44311-20010iRN3#,4#..MTM..(DLX,SR5)..HLF198008-198307

main44311-30020iRN37197901-198008

44311AKEY, VANE PUMP PULLEY

main90280-05008iRN3#,4#..MTM..(DLX,SR5)..HLF197901-198307

44325RING, FIXED(FOR VANE PUMP)

main44325-30030iRN37197901-198008

MARK 1,L=40.0025-40.0050

main44325-30040iRN37197901-198008

MARK 2,L=40.0000-40.0025

44329BOLT, VANE PUMP FRONT HOUSING & REAR HOUSING SET

main44329-30010iRN37197901-198008

44329ARING, O(FOR VANE PUMP HOUSING SET BOLT)

main96710-01007iRN37197901-198008

sub96711-19007

44330VALVE ASSY, FLOW CONTROL

main44330-12010iRN34,44..(DLX,SR5)..HLF198008-198207

MARK A,MARK A

sub44330-12130

main44330-12020iRN34,44..MTM..(DLX,SR5)..HLF198008-198207

MARK B,MARK B

sub44330-12140

main44330-12030iRN34,44..(DLX,SR5)..HLF198008-198207

MARK C,MARK C

sub44330-12150

main44330-12040iRN34,44..MTM..(DLX,SR5)..HLF198008-198207

MARK D,MARK D

sub44330-12160

main44330-12050iRN34,44..(DLX,SR5)..HLF198008-198207

MARK E,MARK E

sub44330-12170

main44330-12060iRN34,44..(DLX,SR5)..HLF198008-198207

MARK F,MARK F

sub44330-12180

main44330-30100iRN34,44..(DLX,SR5)..HLF198207-198307

MARK A,MARK A

sub44330-32130

main44330-30110iRN34,44..(DLX,SR5)..HLF198207-198307

MARK B,MARK B

sub44330-32140

main44330-30120iRN34..4FC198207-198307

MARK C,MARK C

sub44330-32150

main44330-30130iRN34,44..(DLX,SR5)..HLF198207-198307

MARK D,MARK D

sub44330-32160

main44330-30140iRN34..4FC198207-198307

MARK E,MARK E

sub44330-32170

main44330-30150iRN34,44..(DLX,SR5)..HLF198207-198307

MARK F,MARK F

sub44330-32180

main44330-35010iRN37197901-198008

MARK A

main44330-35020iRN37197901-198008

MARK B

main44330-35030iRN37197901-198008

MARK C

main44330-35040iRN37197901-198008

MARK D

main44330-35050iRN37197901-198008

MARK E

main44330-35060iRN37197901-198008

MARK F

main44330-35070iRN38,48198008-198307

MARK A,MARK A

sub44330-32070

main44330-35080iRN38,48198008-198307

MARK B,MARK B

sub44330-32080

main44330-35090iRN38,48198008-198307

MARK C,MARK C

sub44330-32090

main44330-35100iRN38,48198008-198307

MARK D,MARK D

sub44330-32100

main44330-35110iRN38,48198008-198307

MARK E,MARK E

sub44330-32110

main44330-35120iRN38,48198008-198307

MARK F,MARK F

sub44330-32120

44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)

main90501-12447iRN37197901-198307

44330CRING, SNAP(FOR FLOW CONTROL VALVE)

main96151-01700iRN37197901-198307

44337UNION, POWER STEERING SUCTION PORT

main90404-16012iRN37197901-198008

main90404-16016iRN3#,4#..MTM..(DLX,SR5)..HLF198008-198307

44338UNION, PRESSURE PORT

main44308-35020iRN38,48198212-198307

main44308-35030iRN34..4FC198212-198307

main44338-20010iRN34,44..(DLX,SR5)..HLF198008-198212

main44338-30011iRN37197901-198007

main44338-35020iRN38,48198008-198212

main44338-60020iRN37198007-198008

44338ARING, O(FOR PRESSURE PORT UNION)

main90301-22001iRN3#,4#..(DLX,SR5)..HLF198008-198307

OD=25.5,ID=22.5

main96710-01014iRN37197901-198008

ID=14,OD=17

sub96711-19014

44338BSEAT, UNION(FOR PRESSURE PORT UNION)

main90410-06030iRN37197901-198212

44341PLATE, VANE PUMP SIDE, FRONT

main44341-30020iRN37197901-198008

44342PLATE, VANE PUMP SIDE, REAR

main44341-12010iRN34..4FC198008-198307

main44341-30020iRN37197901-198008

44343SEAT, FLOW CONTROL SPRING

main44341-12010iRN3#,4#..MTM..(DLX,SR5)..HLF198008-198108

main44343-12010iRN34..4FC198108-198307

main44343-30020iRN37197901-198008

44343ARING, O(FOR FLOW CONTROL SPRING SEAT)

main96710-01014iRN3#,4#..MTM..(DLX,SR5)..HLF197901-198110

sub96711-19014

main96711-19014iRN3#,4#..(DLX,SR5)..HLF198110-198307

44344SEAT, SPRING(FOR VANE PUMP)

main44344-30010iRN37197901-198008

44345SLIPPER, VANE PUMP

main44307-22010iRN37197901-198008

NO MARK,L=39.942-39.937

main44307-22020iRN37197901-198008

NO MARK,L=39.932-39.937

44345ASPRING, COMPRESSION(FOR VANE PUMP SLIPPER)

main90501-06445iRN37197901-198008

44346PLATE, SNAP RING LOCK

main44346-30020iRN37197901-198008

44362RESERVOIR, OIL(FOR VANE PUMP)

main44360-35010iRN37197901-198008

main44360-35020iRN3#,4#..MTM..(DLX,SR5)..HLF198008-198108

sub44360-35021

main44360-35021iRN3#,4#..(DLX,SR5)..HLF198108-198307

44362ARING, O(FOR VANE PUMP OIL RESERVOIR)

main96710-01013iRN37197901-198110

sub96711-19013

main96711-19013iRN3#,4#..(DLX,SR5)..HLF198110-198307

44391PLATE, POWER STEERING OIL RESERVOIR CAUTION

main44391-30020iRN34..4FC198108-198307

44391APLATE, OIL RESERVOIR CAUTION

main44391-20010iRN37197901-198307

sub44392-35010

44429HOSE, RESERVOIR TO OIL PUMP

main44348-35010iRN37197901-198008

main44348-35020iRN3#,4#..MTM..(DLX,SR5)..HLF198008-198012

sub44348-35030

main44348-35030iRN38,48198011-198307

44429GCLAMP, RESERVOIR TO OIL PUMP HOSE

main90460-26001iRN37197901-198307

9020112022

main90201-12022

9161140814

main91611-40814

9161640820

main91616-40820

9321913005

main93219-13005

9412541200

main94125-41200

9451100300

main94511-00300

9451101200

main94511-01200

9451201000

main94512-01000

42 parts on this diagram · 2 diagrams in section
