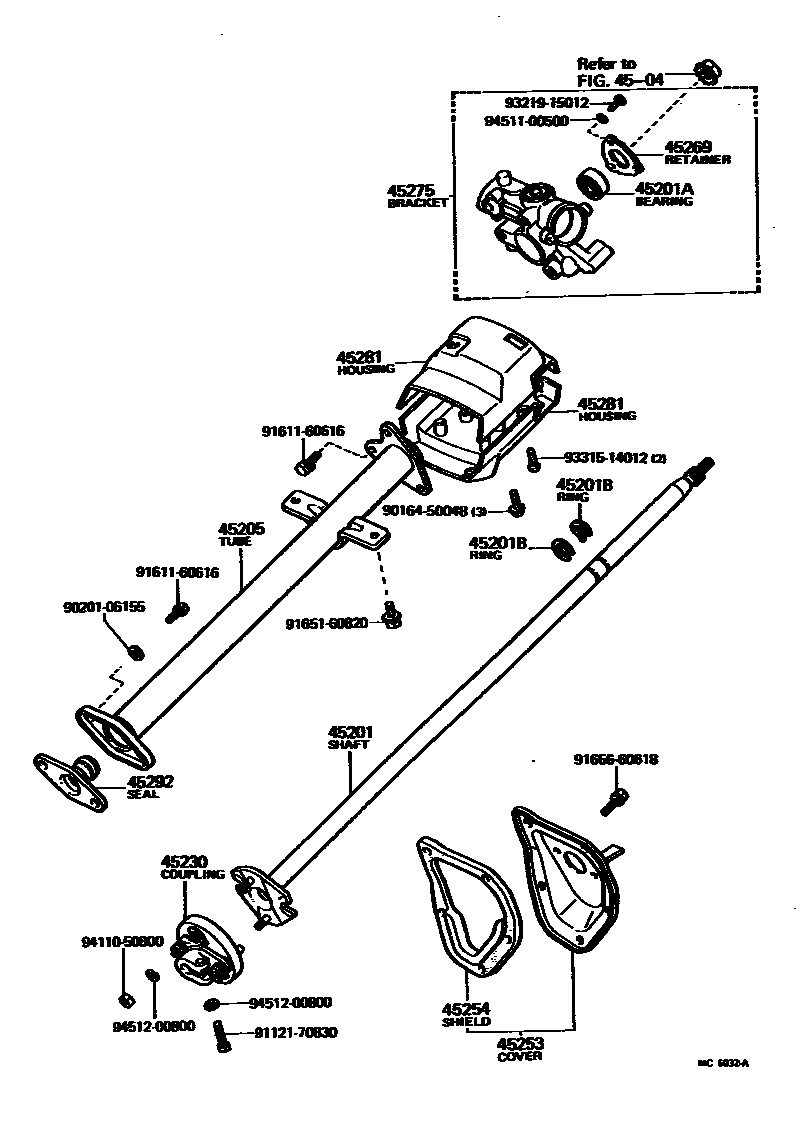

STEERING COLUMN & SHAFT

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0009 1 0011 1 0012 1 0013 1 0014 1 0015 1 0016 1 0017 1 0018 1 0019 1

4504

45201SHAFT SUB-ASSY, STEERING MAIN

main45201-35090iRN32,42197808-197908

W/O STEERING LOCK

sub45201-35100

main45201-35100iRN32,42197808-197908

W/STEERING LOCK

main45210-22050iRN38,48;RN44..HVY;LN40,RN34,44..SR5197901-198307

W/TILT STEERING

main45210-35020iRN37197901-198008

W/STEERING LOCK

main45210-35030iRN37197901-198008

W/O STEERING LOCK

main45210-35040iLN40,RN32,34,42,44197908-198108

W/O STEERING LOCK

main45210-35050iLN40,RN32,34,42,44197908-198307

W/STEERING LOCK

main45210-35060iRN38,48198008-198108

W/O STEERING LOCK

sub45210-35070

main45210-35070iRN38,48198008-198307

W/STEERING LOCK

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-18001iRN38,48;RN44..HVY;LN40,RN34,44..SR5197901-198307

W/TILT STEERING,UPR

main90363-18038iLN40,RN3#,4#197808-198307

UPR

main90363-28001iRN37,38,47,48;RN32,34,42,44..SR5197901-198307

W/TILT STEERING,LWR

main90363-30007iRN37,38,47,48197901-198307

LWR

main90369-43027iLN40,RN32,34,42,44197908-198307

LWR

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iLN40,RN3#,4#197808-198307

T=1.20,T=1.2

main90520-17269iLN40,RN3#,4#197808-198307

T=1.20,STEERING WHEEL SIDE

45205TUBE SUB-ASSY, STEERING COLUMN

main45205-35070iRN32,42197808-197908

main45205-35080iRN37197901-198008

main45205-35090iRN37197901-198008

W/TILT STEERING

main45205-35110iRN32,42197908-198008

main45205-35120iRN32,42..SR5197908-198008

W/TILT STEERING

main45870-35010iLN40,RN34,44198008-198307

main45870-35020iRN34,44..SR5198008-198307

W/TILT STEERING

main45870-35030iRN38,48198008-198307

main45870-35040iRN38,48198008-198307

W/TILT STEERING

45230COUPLING ASSY, FLEXIBLE

main45230-35020iLN40,RN32,34,42,44197808-198307

main45230-35030iRN37197901-197908

45253COVER, STEERING COLUMN HOLE

main45025-35010iRN37197901-198008

main45025-35040iRN38,48198008-198307

main45025-89103iRN32,42197808-197908

main45025-89104iLN40,RN32,34,42,44197908-198307

45254SHIELD, STEERING COLUMN HOLE

main45254-89101iRN38,48198008-198307

main45254-89102iLN40,RN34,44197808-198307

45269RETAINER, MAIN SHAFT BEARING

main45269-35010iLN40,RN3#,4#197808-198307

45275BRACKET, STEERING COLUMN, UPPER

main45280-22190iRN38,48;RN44..HVY;RN34,44..SR5198108-198208

W/TILT STEERING

sub45280-22191

main45280-22191iRN38,48;RN44..HVY;LN40,RN34,44..SR5198208-198307

W/TILT STEERING

main45280-22200iRN37,38,47,48;RN32,34,42,44..SR5197901-198108

W/TILT STEERING

sub45280-60130

main45307-35060iLN40,RN3#,4#197808-198108

W/STEERING LOCK

sub45307-35061

main45307-35070iLN40,RN3#,4#197808-198108

W/O STEERING LOCK

sub45307-35071

main45307-35100iLN40,RN3#,4#198108-198208

W/STEERING LOCK

sub45307-35101

main45307-35101iLN40,RN3#,4#198208-198307

W/STEERING LOCK

45281HOUSING, STEERING COLUMN

main45286-35120-01iLN40,RN3#,4#197808-198307

UPR,W/STEERING LOCK,BLACK,BLACK

sub45286-35120

main45286-35120-04iLN40,RN3#,4#197808-198307

UPR,W/STEERING LOCK,BLUE,BLUE

sub45286-35120

main45286-35120-05iLN40,RN3#,4#197808-198108

UPR,W/STEERING LOCK,BEIGE,BEIGE

sub45286-35120

main45286-35120-06iLN40,RN3#,4#198108-198307

UPR,W/STEERING LOCK,BROWN,BROWN

sub45286-35120

main45286-35130-01iLN40,RN3#,4#197808-198108

UPR,W/O STEERING LOCK,BLACK,BLACK

sub45286-35120

sub45286-35130

main45286-35130-04iLN40,RN3#,4#197808-198108

UPR,W/O STEERING LOCK,BLUE,BLUE

sub45286-35120

sub45286-35130

main45286-35130-05iLN40,RN3#,4#197808-198108

UPR,W/O STEERING LOCK,BEIGE,BEIGE

sub45286-35120

sub45286-35130

main45286-35140-01iRN37197901-198307

UPR,W/TILT STEERING,BLACK,BLACK

sub45286-35140

main45286-35140-04iRN37197901-198307

UPR,W/TILT STEERING,BLUE,BLUE

sub45286-35140

main45286-35140-05iRN37197901-198108

UPR,W/TILT STEERING,BEIGE,BEIGE

sub45286-35140

main45286-35140-06iLN40,RN34,44..SR5198108-198307

UPR,W/TILT STEERING,BROWN,BROWN

sub45286-35140

main45287-35070-01iLN40,RN3#,4#197808-198108

LWR,BLACK,BLACK

main45287-35070-04iLN40,RN3#,4#197808-198108

LWR,BLUE,BLUE

main45287-35070-05iLN40,RN3#,4#197808-198108

LWR,BEIGE,BEIGE

main45287-35080-01iRN37197901-198108

LWR,W/TILT STEERING,BLACK,BLACK

sub45287-35081

main45287-35080-04iRN37197901-198108

LWR,W/TILT STEERING,BLUE,BLUE

sub45287-35081

main45287-35080-05iRN37197901-198108

LWR,W/TILT STEERING,BEIGE,BEIGE

sub45287-35081

main45287-35081-01iRN38,48;RN44..HVY;LN40,RN34,44..SR5198108-198307

LWR,W/TILT STEERING,BLACK,BLACK

sub45287-35081

main45287-35081-04iRN38,48;RN44..HVY;LN40,RN34,44..SR5198108-198307

LWR,W/TILT STEERING,BLUE,BLUE

sub45287-35081

main45287-35081-06iRN38,48198108-198307

LWR,W/TILT STEERING,BROWN,BROWN

sub45287-35081

main45287-35110-01iLN40,RN3#,4#198108-198307

LWR,BLACK,BLACK

sub45287-35110

main45287-35110-04iLN40,RN3#,4#198108-198307

LWR,BLUE,BLUE

sub45287-35110

main45287-35110-06iLN40,RN3#,4#198108-198307

LWR,BROWN,BROWN

sub45287-35110

45292SEAL, MAIN SHAFT LOWER DUST

main45292-35020iRN32,42197808-197908

sub45292-35021

main45292-35030iRN37197901-198008

main45292-60030iRN38,48198008-198307

6065660618

main60656-60618

9016450048

main90164-50048

9020106155

main90201-06155

9112170830

main91121-70830

9161160616

main91611-60616

9165160820

main91651-60820

9321915012

main93219-15012

9331514012

main93315-14012

9411050800

main94110-50800

9451100500

main94511-00500

9451200800

main94512-00800

23 parts on this diagram · 17 diagrams in section
