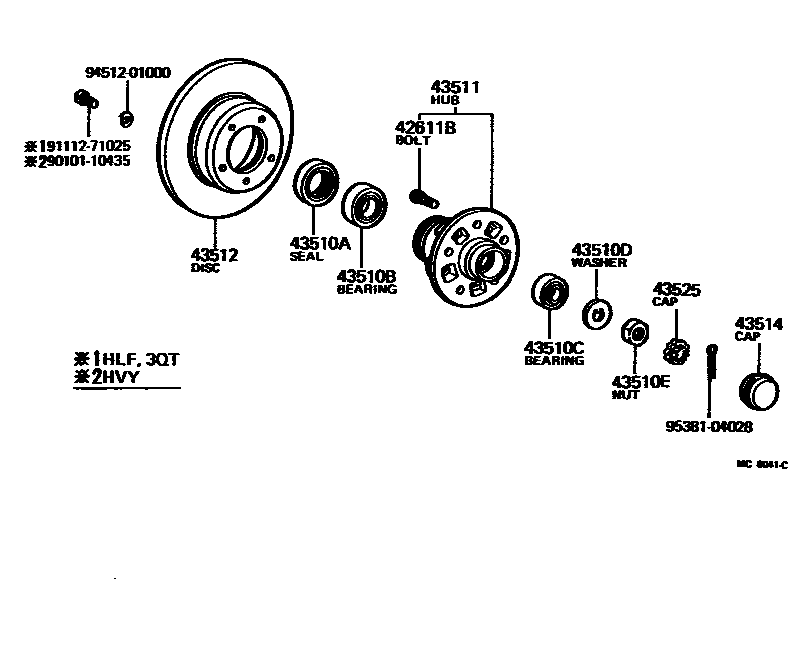

FRONT AXLE HUB

0001 1 0002 1

42611BBOLT, HUB (FOR FRONT AXLE)

main90942-02014iRN37197901-198008

main90942-02035iRN34,44197808-198307

sub90942-02047

main90942-02037iLN40198108-198307

sub90942-02049

main90942-02044iRN38,48198008-198307

sub90942-02053

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90311-50136iLN40,RN32,34,42,44197808-198307

main90311-62001iRN37,38,47,48197901-198307

43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

main90368-34039iLN40,RN32,34,42,44197808-198307

sub90368-34001

main90368-49084iRN37,38,47,48197901-198307

43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

main90368-21065iLN40,RN32,34,42,44197808-198307

sub90368-21001

main90368-45087iRN37,38,47,48197901-198307

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90214-20007iLN40,RN32,34,42,44197808-198307

main90214-42030iRN37,38,47,48197901-198307

43510ENUT (FOR STEERING KNUCKLE)

main90170-19185iLN40,RN32,34,42,44197808-198307

43511HUB, FRONT AXLE

main43502-26010iLN40,RN32,34,42,44197808-198307

sub43502-26H00

main43502-60020iRN38,48198008-198307

sub43502-39095

main43511-60021iRN37197901-198008

43512DISC, FRONT

main43512-26031iRN42,44..HVY197908-198307

main43512-35020iLN40,RN32,34,42,44..3QT,HLF197808-198307

main43512-35040iRN37197901-198008

main43512-35070iRN38,48198008-198307

sub43512-60060

43514CAP, FRONT HUB GREASE

main43423-60011iRN37,38,47,48197901-198307

sub43423-35010

main43514-35010iLN40,RN32,34,42,44197808-198307

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-22010iLN40,RN32,34,42,44197808-198307

9010110435

main90101-10435

9111271025

main91112-71025

9451201000

main94512-01000

9538104028

main95381-04028

14 parts on this diagram · 2 diagrams in section
