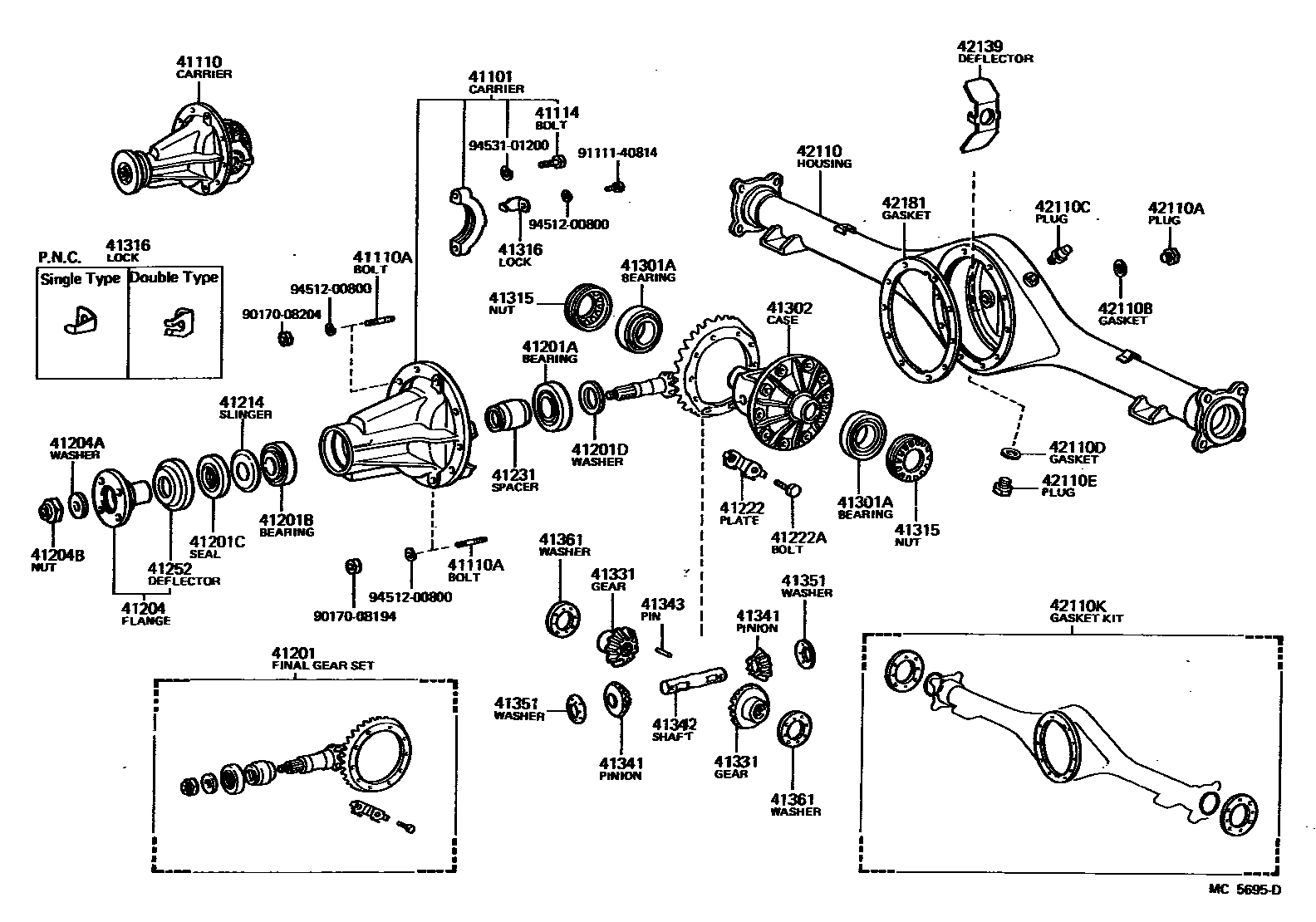

REAR AXLE HOUSING & DIFFERENTIAL
41110CARRIER ASSY, DIFFERENTIAL, REAR
R=41:10=4.100
R=41:10=4.100
R=43:11=3.909
R=41:11=3.727
R=41:11=3.727,CALIFORNIA SPEC
R=35:8=4.375
R=35:8=4.375
R=39:10=3.900
R=43:12=3.583
R=41:12=3.417
R=41:10=4.100
41110ABOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
S=14 & 14,L=42,L=42,S=14 & 14
41114BOLT, REAR DIFFERENTIAL BEARING CAP
41201FINAL GEAR KIT, DIFFERENTIAL, REAR
N=41:12
41201ABEARING (FOR REAR DRIVE PINION REAR)
41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)
T=2.36,MARK 05,T=2.35-2.37
T=2.39,MARK 06,T=2.38-2.40
T=2.42,MARK 07,T=2.41-2.43
T=2.43,MARK 08,T=2.44-2.46
T=2.48,MARK 09,T=2.47-2.49
T=2.51,MARK 10,T=2.50-2.52
T=2.54,MARK 11,T=2.53-2.55
T=2.57,MARK 12,T=2.56-2.58
T=2.60,MARK 13,T=2.59-2.61
T=2.63,MARK 14,T=2.62-2.64
T=2.66,MARK 15,T=2.65-2.67
T=2.69,MARK 16,T=2.68-2.70
T=2.72,MARK 17,T=2.71-2.73
OD=47,T=1.70,T=1.69-1.71
OD=47,T=1.73,T=1.72-1.74
OD=47,T=1.76,T=1.75-1.77
OD=47,T=1.79,T=1.78-1.80
OD=47,T=1.82,T=1.81-1.83
OD=47,T=1.85,T=1.84-1.86
OD=47,T=1.88,T=1.87-1.89
OD=47,T=1.91,T=1.90-1.92
OD=47,T=1.94,T=1.93-1.95
OD=47,T=1.97,T=1.96-1.98
OD=47,T=2.00,T=1.99-2.01
OD=47,T=2.03,T=2.02-2.04
OD=47,T=2.06,T=2.05-2.07
OD=47,T=2.09,T=2.08-2.10
OD=47,T=2.12,T=2.11-2.13
OD=47,T=2.15,T=2.14-2.16
OD=47,T=2.18,T=2.17-2.19
OD=47,T=2.21,T=2.20-2.22
OD=47,T=2.24,MARK 01,T=2.23-2.25
OD=47,T=2.27,MARK 02,T=2.26-2.28
OD=47,T=2.30,MARK 03,T=2.29-2.31
OD=47,T=2.33,MARK 04,T=2.32-2.34
41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR
41204AWASHER, PLATE (FOR REAR DRIVE PINION)
41204BNUT (FOR REAR DRIVE PINION)
41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)
41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)
41301ABEARING(FOR REAR DIFFERENTIAL CASE)
41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING
41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT
SINGLE TYPE
DOUBLE TYPE
41341PINION, REAR DIFFERENTIAL
sub41341-30050
41343PIN, REAR DIFFERENTIAL PINION SHAFT
41351WASHER, REAR DIFFERENTIAL PINION THRUST
41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.0,T=1.0
T=1.1,T=1.1
T=1.2,T=1.2
T=1.3,T=1.3
T=1.6,T=1.6
T=1.7,T=1.7
T=1.8,T=1.8
42110APLUG (FOR REAR AXLE HOUSING FILLER)
42110BGASKET (FOR REAR AXLE HOUSING FILLER PLUG)
42110CPLUG, BREATHER (FOR REAR AXLE HOUSING)
42110DGASKET (FOR REAR AXLE HOUSING DRAIN PLUG)
42110EPLUG (FOR REAR AXLE HOUSING DRAIN)
42139DEFLECTOR, REAR AXLE HOUSING OIL
42181GASKET, REAR DIFFERENTIAL CARRIER
9017008194
main90170-08194
9017008204
main90170-08204
9111140814
main91111-40814
9451200800
main94512-00800
9453101200
main94531-01200
41 parts on this diagram · 2 diagrams in section
