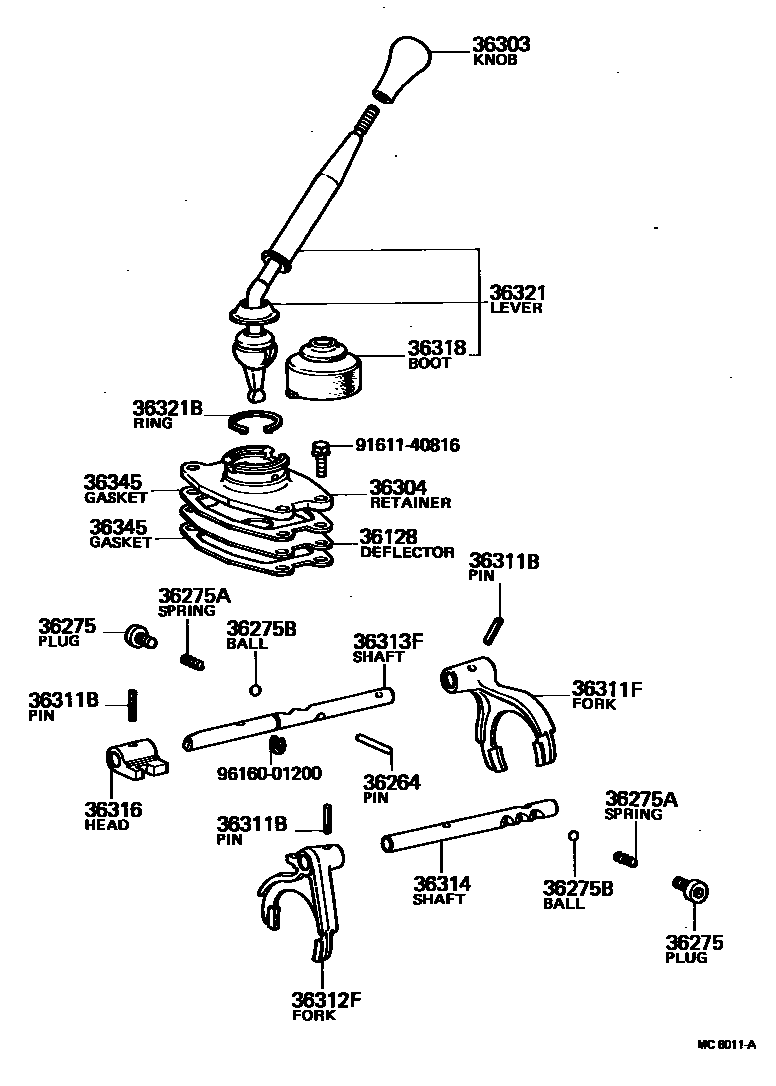

TRANSFER LEVER & SHIFT ROD

36128DEFLECTOR, BREATHER OIL

main36128-35010iRN37,38,47,48197901-198307

36264PIN OR ROLLER, SHIFT INTER-LOCK

main90250-06005iRN37,38,47,48197901-198307

L=30.8,OD=6

36275PLUG, SHIFT DETENT BALL SPRING

main90341-10064iRN37,38,47,48197901-198307

36275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL)

main90501-13001iRN37,38,47,48197901-198307

L=16.5

36275BBALL, SHIFT DETENT

main90360-08009iRN37,38,47,48197901-198307

OD=7.94,STEEL

36303KNOB SUB-ASSY, SHIFT LEVER

main36303-35020iRN37,38,47,48197901-198307

sub36303-35030

36304RETAINER SUB-ASSY, TRANSFER CONTROL SHIFT LEVER

main36304-35010iRN37,38,47,48197901-198307

36311BPIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK)

main90254-05001iRN37,38,47,48197901-198307

L=22

36311FFORK, TRANSFER GEAR SHIFT, NO.1

main36311-35010iRN37,38,47,48197901-198307

36312FFORK, TRANSFER GEAR SHIFT, NO.2

main36312-35010iRN37,38,47,48197901-198307

36313FSHAFT, TRANSFER FRONT DRIVE SHIFT FORK

main36313-35010iRN37,38,47,48197901-198307

36314SHAFT, TRANSFER HIGH AND LOW SHIFT FORK

main36314-35010iRN37,38,47,48197901-198307

36316HEAD, TRANSFER GEAR SHIFT, NO.2

main36316-35010iRN37,38,47,48197901-198307

36318BOOT, TRANSFER FRONT DRIVE SHIFT

main33555-20060iRN38,48198008-198307

main33555-35010iRN37197901-198008

sub33555-20060

36321LEVER, TRANSFER FRONT DRIVE SHIFT

main36360-35010iRN37197901-198008

sub36360-35020

main36360-35020iRN38,48198008-198307

sub36360-35030

36321BRING, HOLE SNAP (FOR TRANSFER FRONT DRIVE SHIFT LEVER)

main90521-49002iRN37197901-198007

sub90521-49003

main90521-49003iRN37,38,47,48198007-198307

36345GASKET, TRANSFER CONTROL SHIFT LEVER RETAINER

main36345-35010iRN37,38,47,48197901-198307

9161140816

main91611-40816

9616001200

main96160-01200

19 parts on this diagram · 1 diagram in section
