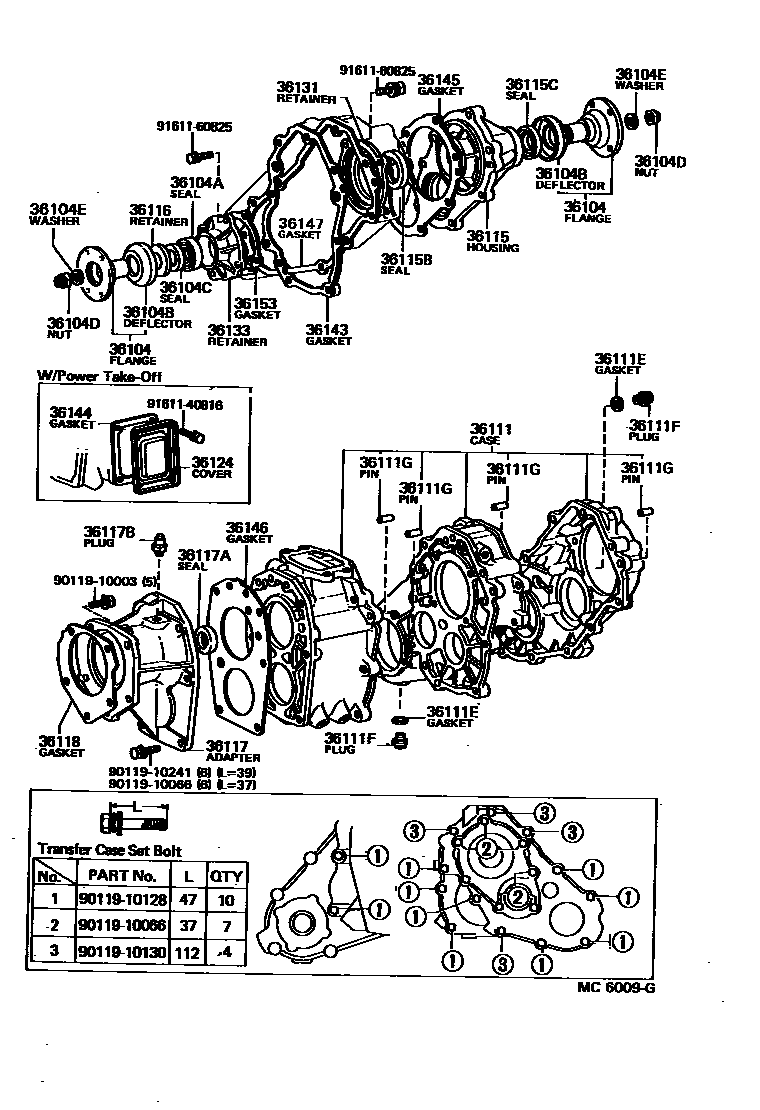

TRANSFER CASE & EXTENSION HOUSING

0001 1 0002 1

36104FLANGE, COMPANION (FOR TRANSFER OUTPUT SHAFT)

main33309-35010iRN37197901-197908

RR DRIVE

main33309-35011iRN37,38,47,48197908-198307

RR DRIVE

main33309-35020iRN37197901-197908

FR DRIVE

main33309-35021iRN37,38,47,48197908-198307

FR DRIVE

36104ASEAL, TYPE T, OIL (FOR TRANSFER OUTPUT SHAFT)

main90311-38016iRN37,38,47,48197901-198307

36104BDEFLECTOR, DUST (FOR TRANSFER OUTPUT SHAFT)

main33325-35020iRN37,38,47,48197901-198307

36104CSEAL, DUST (FOR TRANSFER OUTPUT SHAFT)

main90303-38010iRN37,38,47,48197901-198307

36104DNUT (FOR TRANSFER OUTPUT SHAFT)

main90179-20001iRN37,38,47,48197901-198307

36104EWASHER, PLATE (FOR TRANSFER OUTPUT SHAFT)

main90201-20005iRN37,38,47,48197901-198307

36111CASE, TRANSFER

main36103-35010iRN37,38,47,48197901-198111

W/O POWER TAKE-OFF

sub36103-35011

main36103-35011iRN38,48198111-198302

W/O POWER TAKE-OFF

sub36103-35012

main36103-35012iRN38,48198302-198307

sub36103-35013

main36103-35020iRN37,38,47,48197901-198108

W/POWER TAKE-OFF

sub36103-35021

36111EGASKET (FOR TRANSFER CASE)

main12157-10010iRN37,38,47,48197901-198108

main90430-18007iRN38,48198108-198307

sub90430-18008

36111FPLUG (FOR TRANSFER CASE)

main90341-18002iRN37,38,47,48197901-198305

FILLER PLUG

main90341-18006iRN38,48198305-198307

FILLER PLUG

main90341-18081iRN37,38,47,48197901-198307

DRAIN PLUG

36111GPIN, STRAIGHT (FOR TRANSFER CASE)

main90250-10113iRN37197901-197911

L=22,OD=10

main90250-10232iRN37,38,47,48197911-198307

L=15,OD=8

36115HOUSING, TRANSFER EXTENSION

main36115-35010iRN37,38,47,48197901-198307

36115BSEAL, TYPE V OIL (FOR TRANSFER EXTENSION HOUSING)

main90312-48001iRN37,38,47,48197901-198307

36115CSEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)

main90311-38140iRN37,38,47,48197901-198307

36116RETAINER, TRANSFER EXTENSION HOUSING DUST SEAL

main33145-30010iRN37,38,47,48197901-198307

36117ADAPTER, TRANSFER

main36117-35010iRN37197901-198008

sub36117-35011

main36117-35020iRN38,48198008-198307

36117ASEAL, OIL(FOR TRANSFER ADAPTER)

main90310-32001iRN37197901-198003

sub90311-32009

main90311-32009iRN37,38,47,48198003-198307

36117BPLUG, BREATHER(FOR TRANSFER ADAPTER)

main90930-03031iRN37197901-198008

36118GASKET, TRANSFER ADAPTER

main33142-26010iRN37197901-197905

main33142-35030iRN38,48198008-198307

main33142-35040iRN37197905-198008

36124COVER, TRANSFER POWER TAKE-OFF

main33161-25010iRN37,38,47,48197901-198108

36131RETAINER, TRANSFER OUTPUT SHAFT FRONT BEARING

main36131-35010iRN37,38,47,48197901-198307

36133RETAINER, TRANSFER FRONT DRIVE GEAR BEARING

main36133-35010iRN37,38,47,48197901-198307

36143GASKET, TRANSFER CASE, FRONT

main36143-35010iRN37,38,47,48197901-198307

36144GASKET, TRANSFER POWER TAKE-OFF COVER

main33162-25010iRN37,38,47,48197901-198108

36145GASKET, TRANSFER EXTENSION HOUSING

main36145-35010iRN37,38,47,48197901-198307

36146GASKET, TRANSFER REDUCTION CASE

main36146-35010iRN37,38,47,48197901-198307

36147GASKET, TRANSFER CASE

main36141-35010iRN37,38,47,48197901-198307

36153GASKET, FRONT DRIVE GEAR BEARING RETAINER

main36153-35010iRN37,38,47,48197901-198307

9011910003

main90119-10003

9011910066

main90119-10066

9011910128

main90119-10128

9011910130

main90119-10130

9011910241

main90119-10241

9161140816

main91611-40816

9161160825

main91611-60825

34 parts on this diagram · 2 diagrams in section
