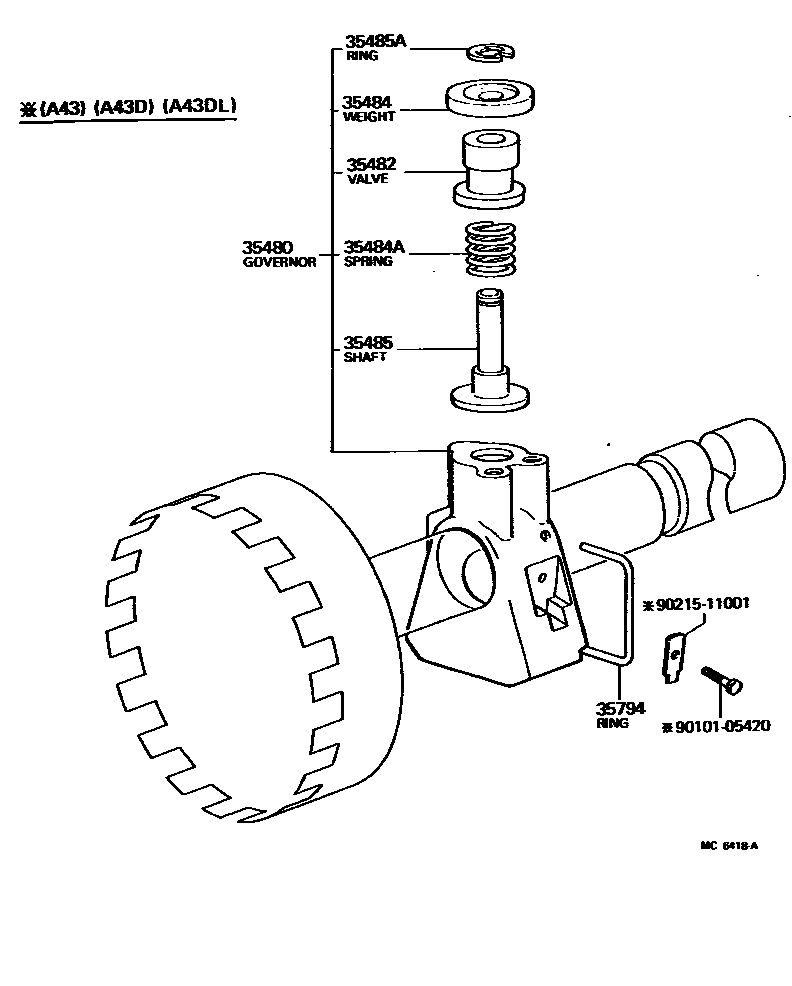

REAR OIL PUMP & GOVERNOR (ATM)

35480GOVERNOR

main35480-22020iRN32,42..3FC197808-198008

sub35480-30040

main35480-30060iRN34,44..ATM198008-198307

35482VALVE, GOVERNOR

main35482-22010iRN32,34,42,44..ATM197808-198307

35484WEIGHT, GOVERNOR, OUTER

main35484-22010iRN32,34,42,44..ATM197808-198307

35484ASPRING, COMPRESSION (FOR GOVERNOR WEIGHT)

main90501-09673iRN32,34,42,44..ATM197808-198307

35485SHAFT, GOVERNOR VALVE

main35485-22010iRN32,34,42,44..ATM197808-198307

35485ARING, E (FOR GOVERNOR VALVE SHAFT)

main90523-05020iRN32,34,42,44..ATM197808-198307

35794RING, GOVERNOR RETAINING

main35794-22010iRN32,34,42,44..ATM197808-198307

9010105420

main90101-05420

9021511001

main90215-11001

9 parts on this diagram · 1 diagram in section
