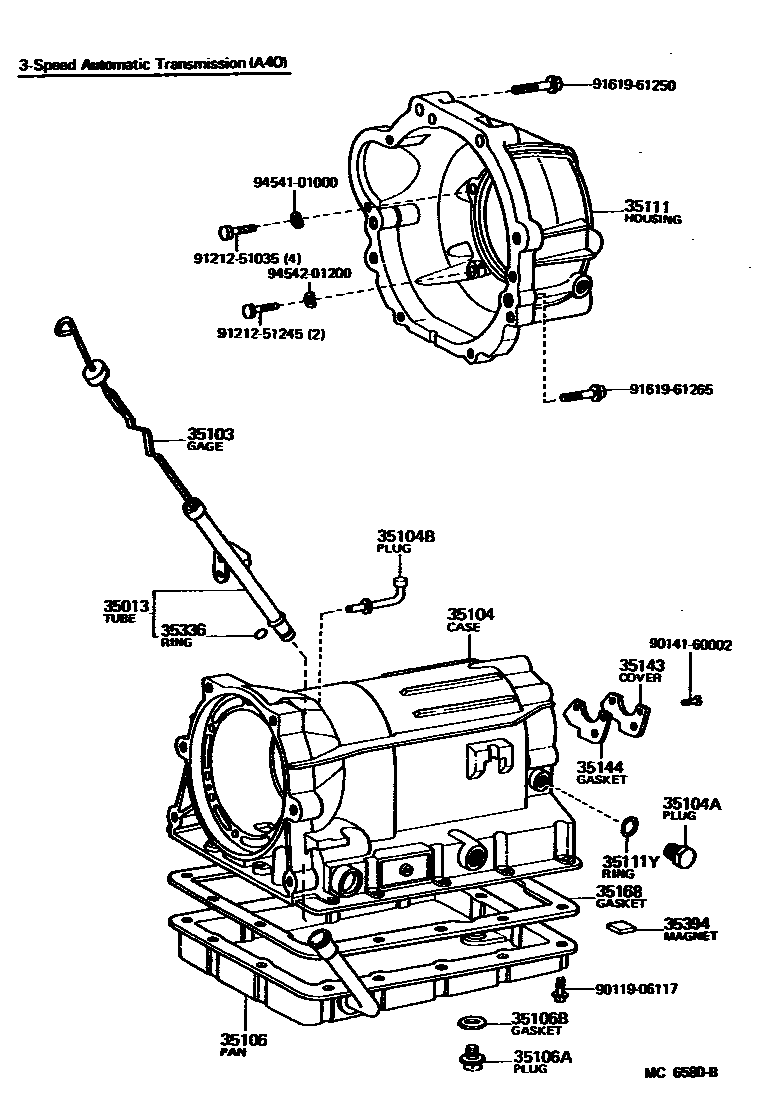

TRANSMISSION CASE & OIL PAN (ATM)

0001 1 0002 1

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-35020iRN32,42..3FC197808-198008

main35013-35030iRN34,44..ATM198008-198307

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-20071iRN32,42..3FC197808-198008

main35103-30130iRN34,44..4FC198204-198307

sub35103-30131

main35103-35010iRN34,44..4FC198008-198204

sub35103-30130

main35103-35020iRN34,44..3FC198008-198108

sub35103-22040

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-22023iRN32,42..3FC197808-198008

sub35104-22024

main35104-22024iRN34,44..3FC198008-198108

sub35104-22025

main35104-26010iRN44..4FC198008-198106

sub35104-26011

main35104-26011iRN44..4FC198106-198307

sub35104-26020

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-08001iRN34,44..4FC198108-198307

L=9.5

main90341-08079iRN32,34,42,44..ATM197808-198108

L=7.54

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03061iRN32,34,42,44..3FC197808-198108

sub90930-03069

main90930-03069iRN34,44..4FC198008-198307

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-14020iRN32,34,42,44..3FC197808-198108

sub35106-14021

main35106-30050iRN44..4FC198008-198307

sub35106-30051

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10003iRN34,44..ATM198008-198307

sub90341-10011

main90341-10006iRN34,44..4FC198307-198307

sub90341-10011

main90341-10078iRN32,42..3FC197808-198008

sub90341-10003

sub35178-30010

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iRN34,44..ATM198008-198307

main90202-10110iRN32,42..3FC197808-198008

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-20061iRN32,34,42,44..3FC197808-198108

main35111-35020iRN34,44..4FC198008-198307

sub35111-35021

35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-06196iRN32,34,42,44..ATM197808-198307

35143COVER, TRANSMISSION CASE, REAR

main35143-22010iRN32,34,42,44..ATM197808-198307

35144GASKET, TRANSMISSION CASE REAR COVER

main35144-22010iRN32,34,42,44..ATM197808-198307

sub35144-28010

35168GASKET, AUTOMATIC TRANSMISSION OIL PAN

main35168-22010iRN32,42..3FC197808-198008

sub35168-22011

main35168-22011iRN34,44..ATM198008-198307

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iRN32,34,42,44..ATM197808-198307

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011iRN32,42..3FC197808-198307

9011906117

main90119-06117

9014160002

main90141-60002

9121251035

main91212-51035

9121251245

main91212-51245

9161961250

main91619-61250

9161961265

main91619-61265

9454101000

main94541-01000

9454201200

main94542-01200

23 parts on this diagram · 2 diagrams in section
