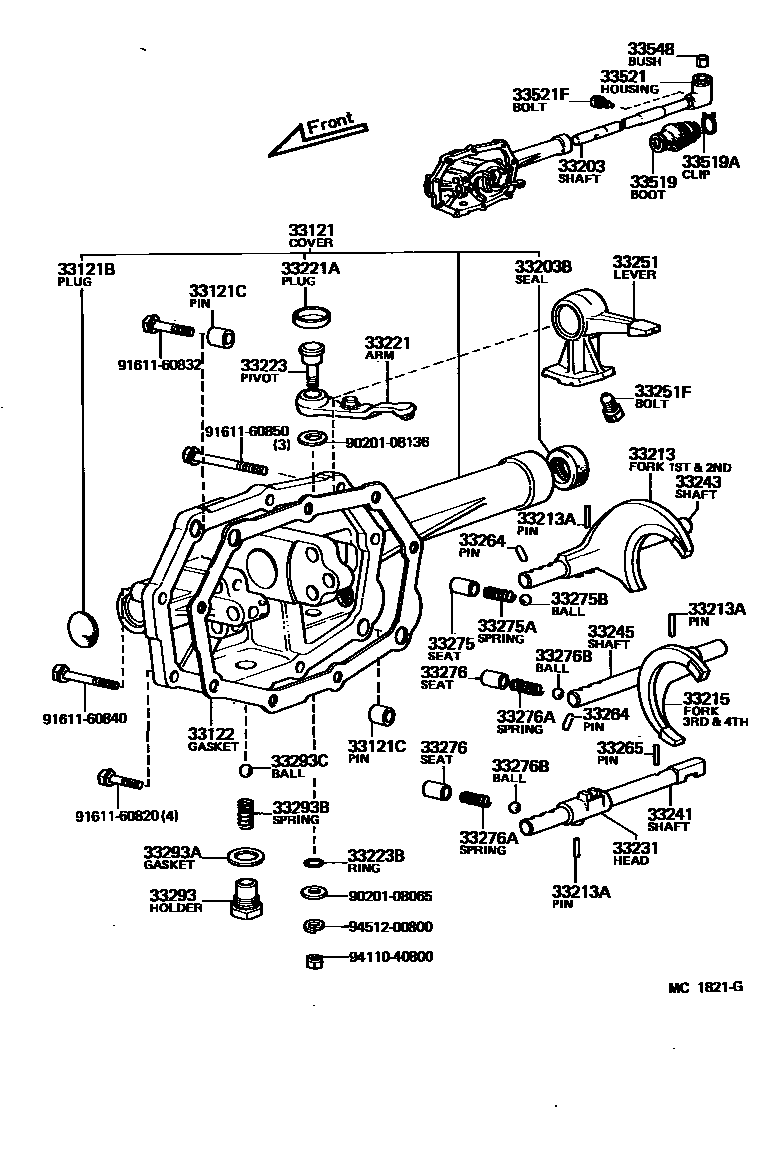

GEAR SHIFT FORK & LEVER SHAFT (MTM)

0001 1 0002 1 0004 1 0005 1 0007 1 0008 1 0009 1

33121COVER, MANUAL TRANSMISSION CASE

main33121-35070iLN40;RN44..3QT..USA198008-198208

main33121-35080iRN38,48198008-198307

main33121-35901iRN32,42..4F197808-198008

sub33102-35010

sub90311-18002

main33121-35903iRN37197901-198008

sub33102-35030

33121BPLUG, EXPANSION OR TIGHT(FOR TRANSMISSION CASE COVER)

main90330-20011iRN3#,42..4F197808-198008

main90331-14003iRN38,48198008-198211

sub90331-14004

main90331-14004iRN38,48198211-198307

33121CPIN(FOR TRANSMISSION CASE COVER)

main90250-10214iLN40,RN38,48;RN44..3QT,HVY;RN34,44..4F..HLF198008-198307

L=14,OD=10

main90253-11001iRN3#,42..4F197808-198008

L=11,OD=11

33122GASKET, MANUAL TRANSMISSION CASE COVER

main33122-30020iRN3#,42..4F197808-198008

main33122-35020iLN40,RN38,48;RN44..3QT,HVY;RN34,44..4F..HLF198008-198307

33203SHAFT SUB-ASSY, SHIFT LEVER, NO.1

main33203-20092iRN32,34,42,44..5F197808-198105

sub33251-20040

main33251-20040iRN34,44..5F198105-198307

main33261-20010iRN32,42..4F197808-198008

main33261-35030iRN37197901-198008

main33261-35060iRN34,44..4F198008-198101

main33261-35061iLN40;RN44..3QT..USA198101-198208

main33261-35070iRN38,48198008-198307

33203BSEAL, OIL(FOR SHIFT LEVER SHAFT)

main90311-18002iRN3#,42..4F197808-198008

main90312-17001iLN40,RN38,48;RN44..3QT,HVY;RN34,44..4F..HLF198008-198307

33213FORK, 1ST & 2ND SHIFT

main33212-20050iRN34,44..5F..HLF198201-198307

main33212-28010iRN3#,42..4F197808-198008

main33212-31010iRN32,34,42,44..5F..HLF197808-198201

main33212-35010iLN40,RN38,48;RN44..3QT,HVY;RN34,44..4F..HLF198008-198307

main33212-35022iLN40198208-198307

sub33212-35023

sub33242-35022

sub90105-06143

sub90520-12003

33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)

main90254-05001iRN34,44..5F..HLF198008-198307

L=22

main90254-05001iRN3#,42..MTM197808-198307

main90254-05016iLN40,RN38,48..5F198109-198307

L=25.5

33215FORK, 3RD & 4TH SHIFT

main33213-26020iRN3#,42..4F197808-198008

main33213-31010iRN34,44..MTM197808-198307

main33213-35020iLN40,RN38,48;RN44..3QT..USA198008-198307

main33213-35031iLN40198208-198307

sub33213-35033

sub33243-35042

sub33364-26020

sub90105-06143

sub90520-12003

33221ARM, REVERSE SHIFT

main33201-35020iLN40,RN38,48;RN44..3QT..USA198008-198307

main33221-28010iLN40198208-198307

main33221-30010iRN3#,42..4F197808-198008

33221APLUG, TIGHT(FOR REVERSE SHIFT ARM)

main96411-12500iRN3#,42..4F197808-198008

sub96411-42500

33223PIVOT, SHIFT ARM

main33223-30011iRN3#,42..4F197808-198008

main33223-35020iLN40,RN38,48;RN44..3QT..USA198008-198307

33223BRING, O(FOR SHIFT ARM PIVOT)

main90301-08001iRN3#,42..4F197808-198008

main96710-01010iLN40,RN38,48;RN44..3QT,HVY;RN34,44..4F..HLF198008-198111

sub96711-19010

main96711-19010iLN40,RN38,48;RN44..3QT,HVY;RN34,44..4F..HLF198111-198307

33231HEAD, REVERSE SHIFT

main33202-26011iRN38,48..5F198008-198307

main33202-35010iRN3#,4#..4F198008-198307

main33231-26010iRN3#,42..4F197808-198008

main33231-35040iLN40198208-198307

sub33231-35070

sub33214-35040

sub33244-35050

sub33245-35080

sub33395-26020

sub90105-06143

33241SHAFT, REVERSE SHIFT FORK

main33241-26010iRN3#,42..4F197808-198008

main33244-20011iRN32,42..5F197808-197905

sub33244-20902

main33244-20902iRN34,44..5F197905-198307

main33244-30030iRN34,44..4F198202-198307

main33244-35020iLN40198208-198307

sub33244-35021

sub90520-12003

main33245-35020iRN38,48..5F198008-198307

main33245-35030iRN44..3QT..USA198008-198307

33243SHAFT, 1ST & 2ND SHIFT FORK

main33242-20042iRN32,34,42,44..5F..HLF197808-198201

main33242-20060iRN34,44..5F..HLF198201-198307

main33242-26010iRN3#,42..4F197808-198008

main33242-35010iRN38,48198008-198307

main33242-35020iLN40198208-198307

sub33242-35023

sub90520-12003

33245SHAFT, 3RD & 4TH SHIFT FORK

main33243-20031iRN34,44..MTM197808-198307

main33243-26010iRN3#,4#..4F197808-198008

main33243-28010iRN38,48198102-198307

main33243-35030iRN34,44..4F;LN40,RN38,48198008-198102

sub33243-28010

main33245-35040iLN40198208-198307

sub33245-35080

sub33214-35040

sub33231-35070

sub33244-35050

sub33395-26020

sub90105-06143

33251LEVER, SHIFT & SELECT

main33251-20040iRN34,44..4F198202-198307

main33251-30040iRN3#,42..4F197808-198008

main33251-35050iLN40,RN38,48;RN44..3QT,HVY;RN34,44..4F..HLF198008-198307

main33251-35060iLN40198208-198307

sub33251-35061

sub90109-08305

33251FPIN OR BOLT (FOR SHIFT & SELECT LEVER)

main33218-35010iRN3#,42..4F197808-198307

33264PIN, OR BALL, SHIFT INTERLOCK, NO.1

main33264-30010iRN3#,42..4F197808-198008

OD=6,L=16

main33264-31010iRN44..3QT..CND;RN34,44..HLF,HVY197808-198307

main90360-10003iLN40198208-198307

OD=9.52,STEEL,BALL

main90361-10001iRN38,48198008-198307

L=32.9,OD=9.53

main90361-10002iLN40198208-198307

L=21.6,PIN,PIN,L=21.6

main90361-10003iLN40198208-198307

L=13.6,OD=9.5,PIN,L=13.6

main90361-10008iLN40,RN38,48..5F198008-198307

L=14.9,OD=9.53

33265PIN, SHIFT INTERLOCK, NO.2

main33265-30010iRN3#,42..4F197808-198008

L=28.8,OD=6.0

main90250-05010iLN40,RN38,48;RN44..3QT,HVY;RN34,44..4F..HLF198008-198307

main90250-05020iLN40198208-198307

L=11.1,OD=4.8

33275SEAT, SHIFT DETENT BALL SPRING, NO.1

main33275-10010iRN3#,42..4F197808-198008

main90341-10004iRN44..3QT..CND;RN34,44..HLF,HVY197808-198307

main90341-12003iRN38,48198008-198307

main90341-12008iLN40198208-198307

OD=18

33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)

main90501-10061iLN40198208-198307

L=22.1,L=22.1

main90501-13001iRN34,44..MTM197808-198307

L=16.5

main90501-13006iLN40198102-198307

main90501-14047iRN3#,4#..4F198008-198102

sub90501-13006

main90501-14061iLN40198208-198307

L=18.3,L=18.3

sub90501-14123

main90501-14062iLN40198208-198307

L=30.6,L=30.6

sub90501-14132

main90501-14638iRN3#,42..4F197808-198008

L=15.2

33275BBALL, SHAFT DETENT

main90360-08009iRN44..3QT..CND;RN34,44..HLF,HVY197808-198307

main90360-10003iRN3#,42..4F197808-198307

33276SEAT, SHIFT DETENT BALL SPRING, NO.2

main33275-10010iRN3#,42..4F197808-198008

main90341-10064iRN32,34,42,44..5F..HLF197808-198307

main90341-12003iLN40,RN38,48..5F198008-198307

33276ASPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL)

main90501-13001iRN34,44..MTM197808-198307

main90501-13006iRN44..3QT..USA198102-198307

main90501-14047iLN40,RN38,48..5F198008-198102

sub90501-13006

main90501-14638iRN3#,42..4F197808-198008

33276BBALL, SHIFT DETENT, NO.2

main90360-08009iRN34,44..MTM197808-198307

main90360-10003iRN44..3QT..USA197808-198307

33293HOLDER, REVERSE RESTRICT BALL

main33293-30010iRN3#,42..4F197808-198008

33293AGASKET (FOR REVERSE RESTRICT BALL HOLDER)

main12157-10010iRN3#,42..4F197808-198008

33293BSPRING, COMPRESSION (FOR REVERSE RESTRICT BALL)

main90501-16041iRN3#,42..4F197808-198008

33293CBALL (FOR REVERSE RESTRICT)

main90360-10003iRN3#,42..4F197808-198008

33519BOOT, CONTROL SHAFT DUST

main33555-20010iRN3#,42..4F197808-198008

33519ACLIP (FOR CONTROL SHAFT DUST BOOT SET)

main90467-17042iRN3#,42..4F197808-198008

sub90467-17126

33521HOUSING, SHIFT LEVER

main33521-14040iRN32,34,42,44..5F..HLF197808-198307

main33521-30020iRN37197901-198008

main33521-35021iRN32,42..4F197808-197903

main33521-35030iRN37197903-198008

main33521-35040iRN34,44..4F198008-198101

main33521-35041iLN40;RN44..3QT..USA198101-198208

main33521-35060iRN38,48198008-198307

main33521-35070iLN40198208-198307

sub33521-35071

33521FPIN OR BOLT (FOR SHIFT LEVER HOUSING)

main33218-35010iRN38,48197808-198307

main90113-08001iRN44..3QT..CND;LN40,RN34,44..5F198101-198307

main90254-05016iRN32,34,42,44..5F..HLF197808-198307

33548BUSH, SHIFT LEVER

main33548-30010iRN3#,42..4F197808-198008

main33548-31010iRN32,42..5F197808-198307

9020108065

main90201-08065

9020108136

main90201-08136

9161160820

main91611-60820

9161160832

main91611-60832

9161160840

main91611-60840

9161160850

main91611-60850

9411040800

main94110-40800

9451200800

main94512-00800

44 parts on this diagram · 7 diagrams in section
