SPEEDOMETER DRIVEN GEAR (MTM)

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33403-69016iRN34,44..5F..DLX198008-198202

N=17,MARK 17:6,N=17

main33403-69026iRN3#,42..MTM197808-198008

N=19

main33403-69065iRN34,44..5F198008-198307

N=18,MARK 18:6,N=18

main33482-39025iLN40198008-198307

N=19,MARK 19:6,N=19

main33482-39055iRN34,44..4F..HLF198008-198307

N=16

main33482-39065iRN34,44..5F..DLX198008-198307

N=17,N=17

main33482-39075iRN38,48198008-198108

N=20

main33482-39135iRN34,44..5F..SR5198101-198307

N=18,MARK 18:6,N=18

33403ABUSH (FOR MANUAL TRANSMISSION SPEEDOMETER SHAFT SLEEVE)

main90386-09078iRN32,42..MTM197808-197811

33403CRING, O (FOR MANUAL TRANSMISSION SPEEDOMETER SHAFT)

main90301-09017iRN32,42..MTM197808-197811

33404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)

main33404-30040iRN38,48197808-198307

main33404-35010iLN40,RN34,44198008-198307

main33404-39016iRN32,42..MTM197808-197811

33404ARING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90301-18018iLN40,RN3#,4#..MTM197808-198307

33404BCOLLAR, SPEEDOMETER FLEXIBLE TUBE SHAFT GASKET (MTM)

main90201-07069iRN32,42..MTM197808-197811

33404CGASKET, SPEEDOMETER FLEXIBLE TUBE SHAFT (MTM)

main90303-06017iRN32,42..MTM197808-197811

33404ESEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iRN32,42..5F197808-198307

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iLN40;RN44..3QT,HVY;RN34,44..4F..HLF198008-198307

33485PLATE, SPEEDOMETER SLEEVE LOCK (MTM)

main33485-30010iRN32,42..MTM197808-197811

main33485-30020iRN32,42..5F197808-198307

9161140814

main91611-40814

9161140816

main91611-40816

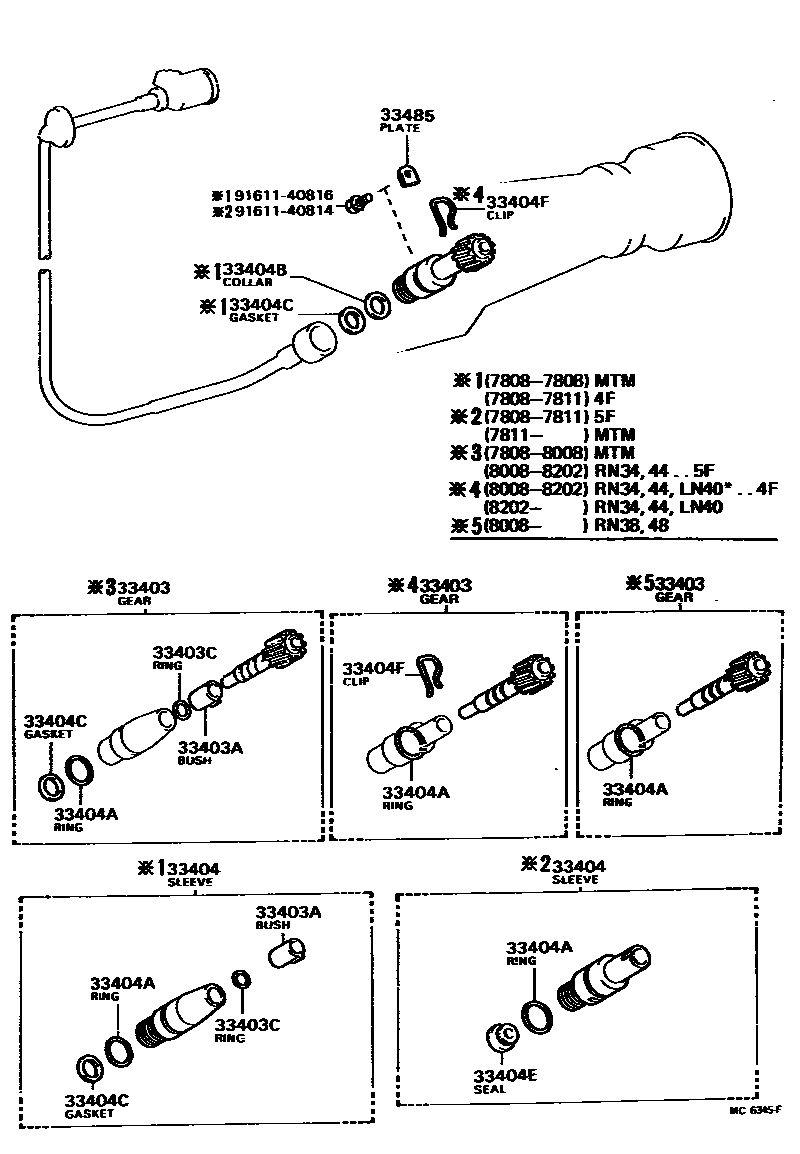

12 parts on this diagram · 1 diagram in section
