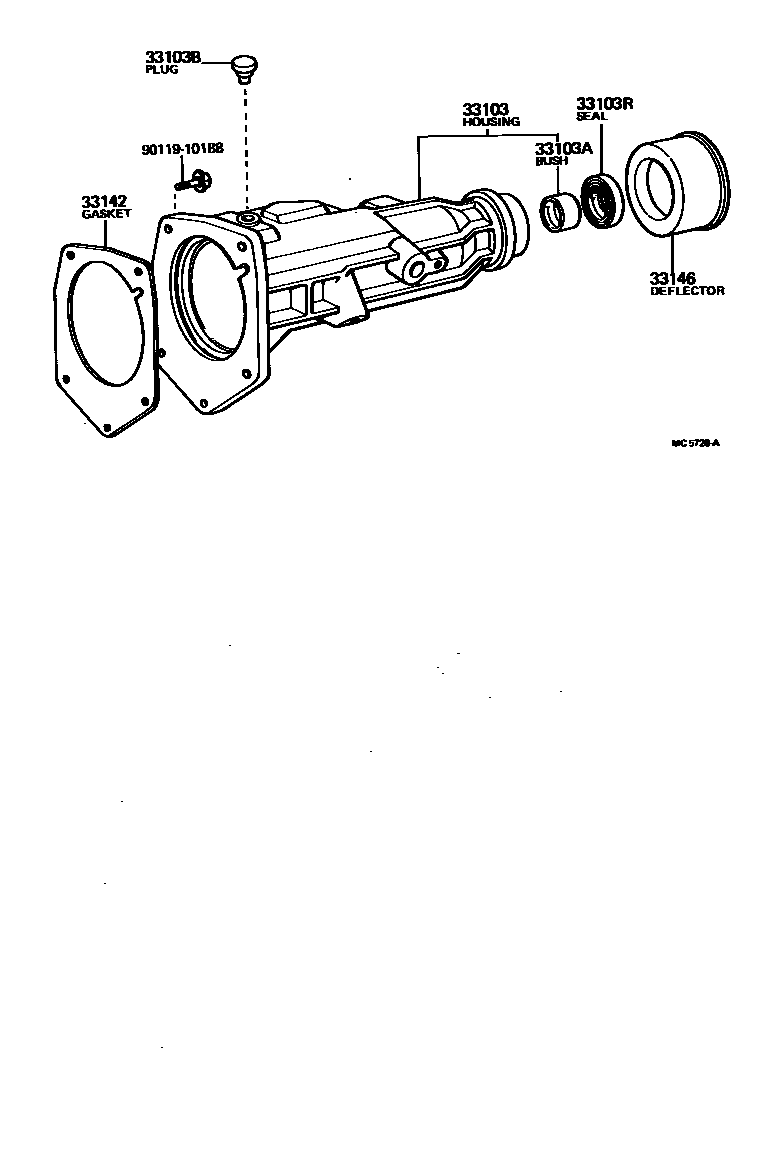

EXTENSION HOUSING (MTM)

0001 1 0002 1 0004 1 0007 1

33103HOUSING SUB-ASSY, EXTENSION(MTM)

main33103-20100iRN34,44..MTM197808-198306

main33103-20101iRN34,44..MTM198306-198307

main33103-35060iRN32,42..4F197808-198008

sub33103-35061

main33103-35080iRN34,44..4F198008-198101

sub33103-35081

sub33584-35031

sub91651-60835

main33103-35081iLN40;RN44..3QT..USA198101-198208

sub33103-35905

main33103-35090iLN40198208-198307

sub33103-35091

sub90119-10186

sub90119-10337

33103ABUSH(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90999-72023iLN40;RN44..3QT..USA197808-198307

sub90999-73139

main90999-73062iRN44..3QT..CND;RN34,44..HLF,HVY197808-198307

33103BPLUG, BREATHER(FOR TRANSMISSION EXTENSION HOUSING)

main90930-03001iRN32,42..4F197808-198008

33103RSEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90311-38043iLN40;RN44..3QT,HVY;RN44..4F..HLF;RN32,34,42..4F197808-198307

sub90311-38040

33142GASKET, EXTENSION HOUSING(MTM)

main33138-28010iLN40198208-198307

main33142-20020iRN32,34,42,44..5F..HLF197808-198307

main33142-26010iRN32,42..4F197808-198008

main33142-35030iLN40;RN44..3QT,HVY;RN34,44..4F..HLF198008-198208

33146DEFLECTOR, EXTENSION HOUSING DUST(MTM)

main33146-30010iLN40,RN32,34,42,44..MTM197808-198307

sub33146-30020

9011910188

main90119-10188

7 parts on this diagram · 4 diagrams in section
