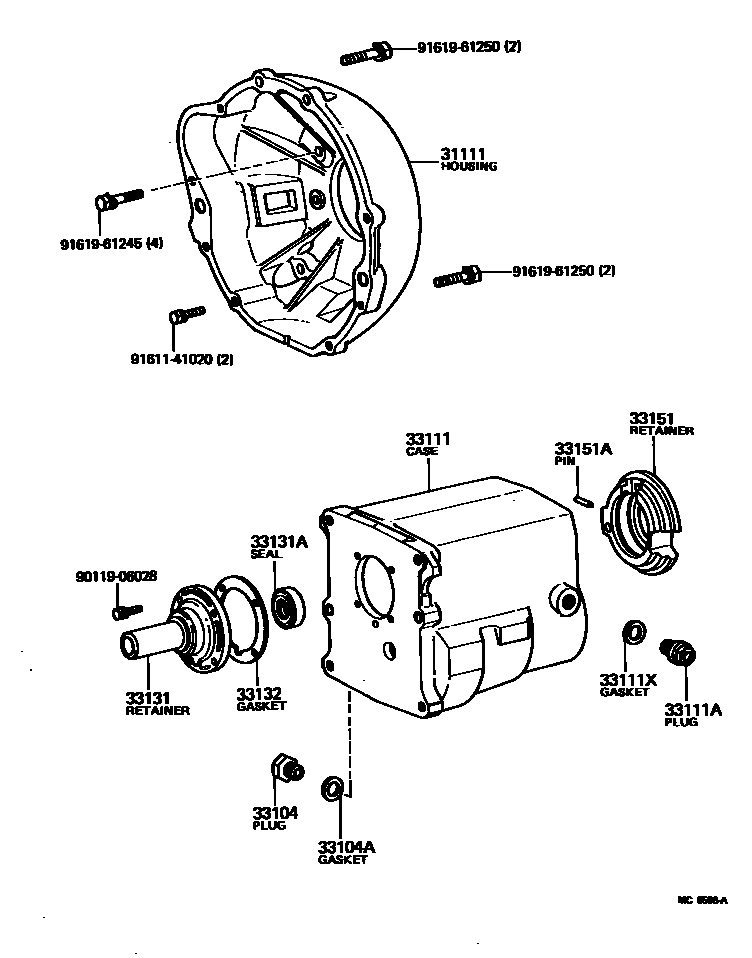

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1 0002 1 0005 1 0008 1 0009 1

31111HOUSING, CLUTCH

main31111-20090iRN37197901-198008

main31111-20110iRN44..3QT..CND;RN34,44..HLF,HVY197808-198307

main31111-22111iLN40198208-198307

sub31111-22112

main31112-25010iLN40198101-198103

main31112-35010iLN40198103-198208

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18057iLN40,RN3#,4#..MTM197808-198307

33104AGASKET, DRAIN PLUG(MTM)

main12157-10010iRN44..3QT..CND;RN34,44..HLF,HVY197808-198307

main90430-18007iLN40,RN38,48;RN44..3QT,HVY;RN34,44..4F..HLF198108-198307

sub90430-18008

33111CASE, MANUAL TRANSMISSION

main33101-20010iRN32,42..5F197808-197901

sub33101-20011

main33101-20011iRN32,34,42,44..5F..HLF197901-198207

sub33101-30021

main33101-20012iRN34,44..MTM198207-198307

sub33101-20011

main33101-35010iLN40198208-198307

sub33101-35050

main33111-35031iRN3#,42..4F197808-198008

main33111-35041iLN40198101-198208

sub33111-35042

sub33131-35022

sub33132-35022

sub90363-32019

main33111-35050iRN38,48;RN44..3QT..USA198008-198211

sub33111-35051

sub33131-35022

sub33132-35022

sub90363-32019

main33111-35051iRN38,48198211-198307

33111APLUG, MANUAL TRANSMISSION CASE

main90341-18002iLN40,RN3#,4#..MTM197808-198305

main90341-18006iLN40,RN3#,4#..MTM198302-198307

33111XGASKET, TRANSMISSION CASE PLUG

main12157-10010iLN40,RN3#,4#..MTM197808-198307

main90430-18007iLN40,RN38,48;RN44..3QT..USA198108-198307

sub90430-18008

33131RETAINER, BEARING, FRONT(MTM)

main33131-20050iRN3#,42..4F197808-198008

main33131-28010iLN40198208-198307

main33131-31010iRN34,44..MTM197808-198307

main33131-35021iRN38,48198008-198211

main33131-35022iRN38,48198211-198307

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-30115iRN32,42..5F197808-198307

main90311-32106iRN3#,42..4F197808-198008

33132GASKET, FRONT BEARING RETAINER(MTM)

main33132-28010iLN40198208-198307

main33132-30030iRN3#,42..4F197808-198008

main33132-35021iLN40,RN38,48;RN44..3QT..USA198008-198211

main33132-35022iRN38,48198211-198307

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33151-20010iRN32,34,42,44..5F..HLF197808-198307

main33151-26010iRN3#,42..4F197808-198008

main33151-28010iLN40198208-198307

main33151-35011iRN38,48198008-198307

33151APIN, SLOTTED SPRING(FOR OUTPUT SHAFT REAR BEARING RETAINER)

main90254-05005iRN3#,42..4F197808-198008

9011906028

main90119-06028

9161141020

main91611-41020

9161961245

main91619-61245

9161961250

main91619-61250

15 parts on this diagram · 5 diagrams in section
