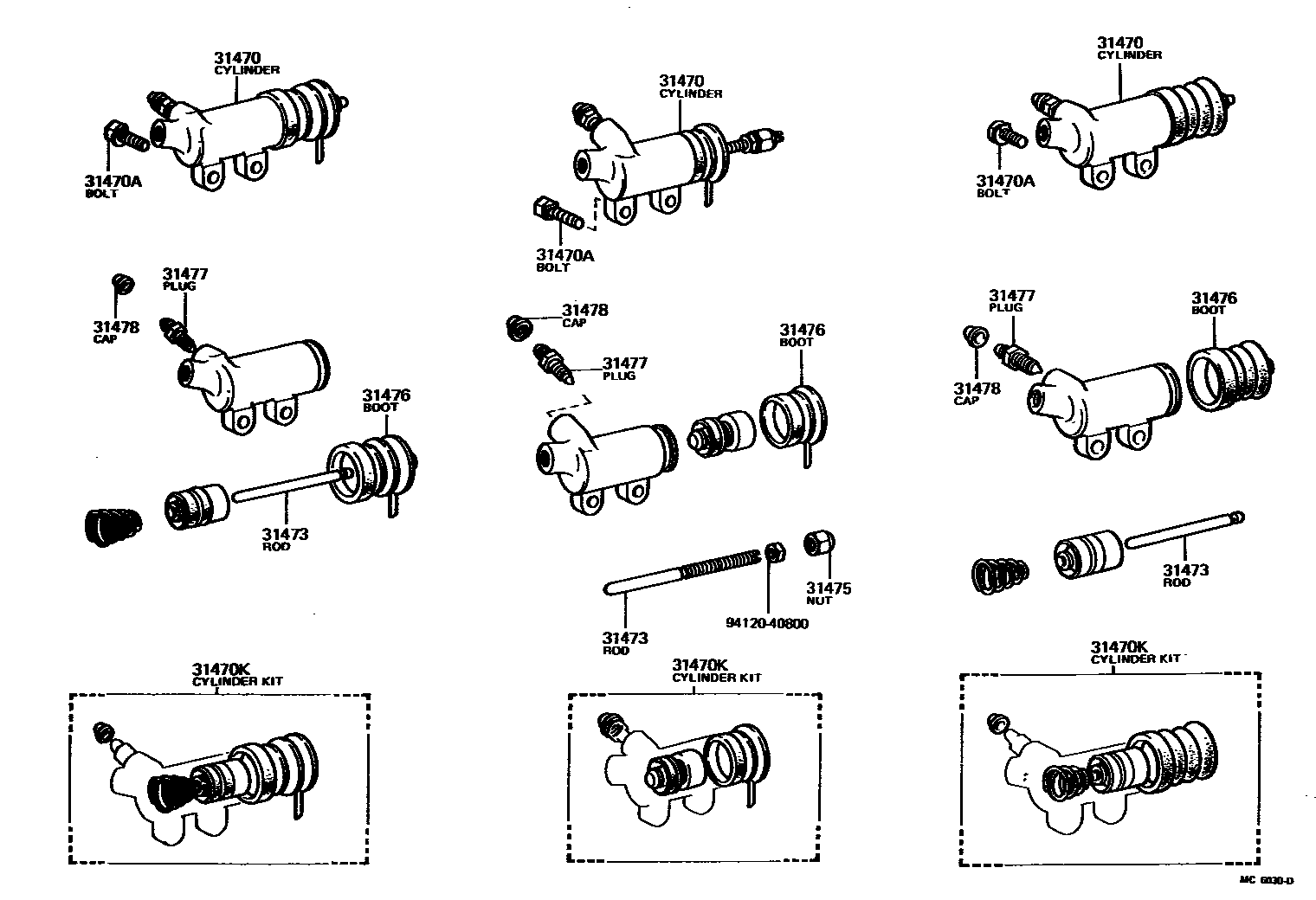

CLUTCH RELEASE CYLINDER

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-20091iRN37197901-198008

sub31470-26020

main31470-30220iLN40198208-198307

sub31470-30221

main31470-35040iRN34,44..5F197808-198108

sub31470-35041

main31470-35050iRN38,48;RN34,44..4F198008-198307

sub31470-30260

main31470-35060iLN40198101-198208

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-40825iLN40,RN3#,4#..MTM197808-198307

*8-1.25PX25-25

sub91611-B0825

31470KCYLINDER KIT, CLUTCH RELEASE

main04313-22020iLN40,RN3#,4#..MTM198008-198307

sub04313-12030

main04313-30054iRN37197901-198008

main04313-30100iRN34,44..5F197808-198108

main04313-35040iLN40198101-198208

sub04313-36140

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-20030iRN32,42..MTM197808-198108

main31473-22010iRN38,48;RN34,44..4F198008-198307

main31473-30021iRN37197901-198008

main31473-35040iLN40198101-198208

31475NUT, CLUTCH RELEASE CYLINDER PUSH ROD

main31475-30020iRN37197901-198008

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-20040iRN37197901-198008

main31476-22010iRN34,44..4F;LN40,RN38,48198008-198307

main31476-30040iRN32,42..MTM197808-198108

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iLN40,RN3#,4#..MTM197808-198307

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iLN40,RN3#,4#..MTM197808-198307

9412040800

main94120-40800

9 parts on this diagram · 1 diagram in section
