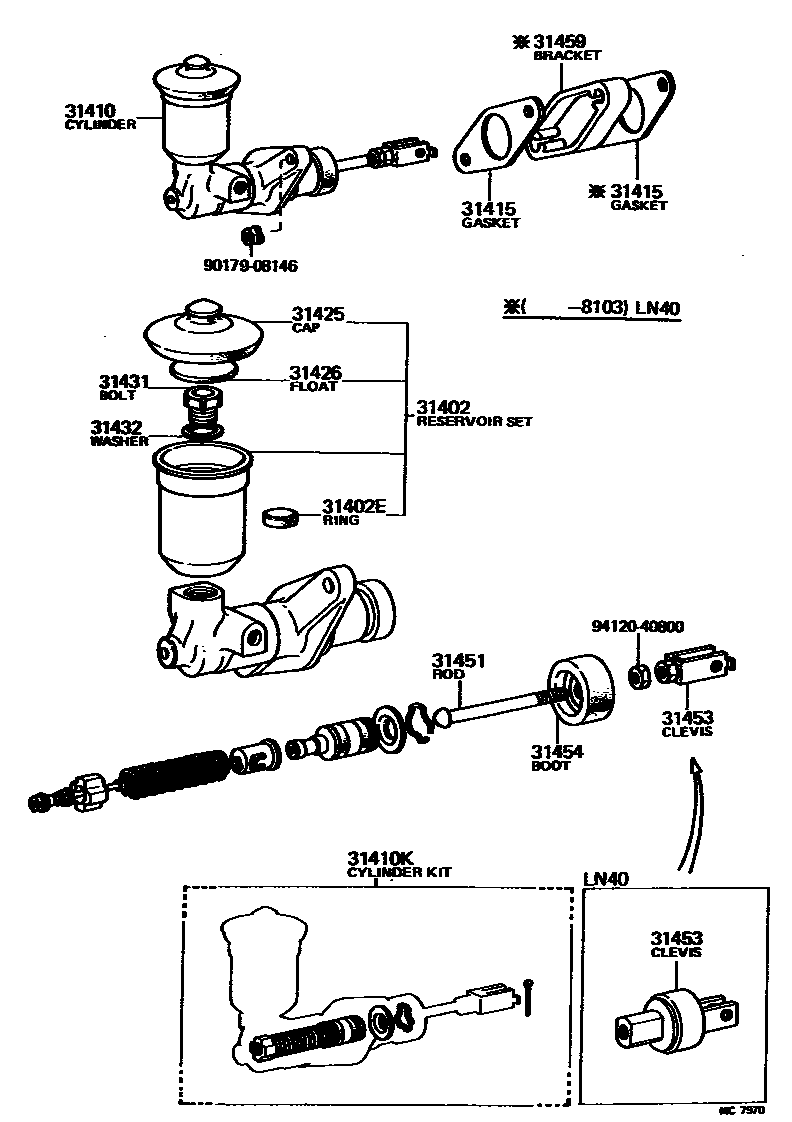

CLUTCH MASTER CYLINDER

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-30030iLN40198101-198307

main31402-35010iRN3#,4#..MTM197808-198307

sub31402-20010

31402ERING(FOR CLUTCH MASTER CYLINDER RESERVOIR)

main90562-18151iRN3#,4#..MTM197808-198307

31410CYLINDER ASSY, CLUTCH MASTER

main31410-24011iLN40198103-198207

sub31410-24H00

main31410-24012iLN40198207-198307

sub31410-22140

main31410-35100iRN3#,4#..MTM197808-198307

sub31410-35101

main31410-35110iLN40198101-198103

sub31410-35220

31410KCYLINDER KIT, CLUTCH MASTER

main04311-14010iRN3#,4#..MTM197808-198212

sub04311-14011

main04311-14011iRN3#,4#..MTM198212-198307

sub04311-14012

main04311-20050iLN40198103-198108

sub04311-14011

main04311-30080iLN40198101-198307

sub04311-14020

31415GASKET, CLUTCH MASTER CYLINDER

main31415-30030iLN40197808-198307

31425CAP, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main31440-35010iRN3#,4#..MTM197808-198307

sub47230-20040

main47230-20040iLN40198101-198307

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-30011iLN40,RN3#,4#..MTM197808-198307

31431BOLT, CLUTCH MASTER CYLINDER RESERVOIR SET

main31427-35010iRN3#,4#..MTM198101-198307

main47231-20010iRN3#,4#..MTM197808-198101

main47231-30010iLN40198101-198307

31432WASHER, CLUTCH RESERVOIR SET BOLT

main47232-30010iLN40198101-198307

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-12010iRN3#,4#..MTM197808-198307

main31451-30060iLN40198101-198307

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-30040iLN40198101-198207

main31404-30041iLN40198207-198307

main31453-22010iRN3#,4#..MTM197808-198307

sub31453-35010

31454BOOT, CLUTCH MASTER CYLINDER

main31454-14010iLN40,RN3#,4#..MTM197808-198307

main31454-24010iLN40198103-198307

31459BRACKET, CLUTCH MASTER CYLINDER

main31459-35010iLN40198101-198103

9017908146

main90179-08146

9412040800

main94120-40800

15 parts on this diagram · 1 diagram in section
