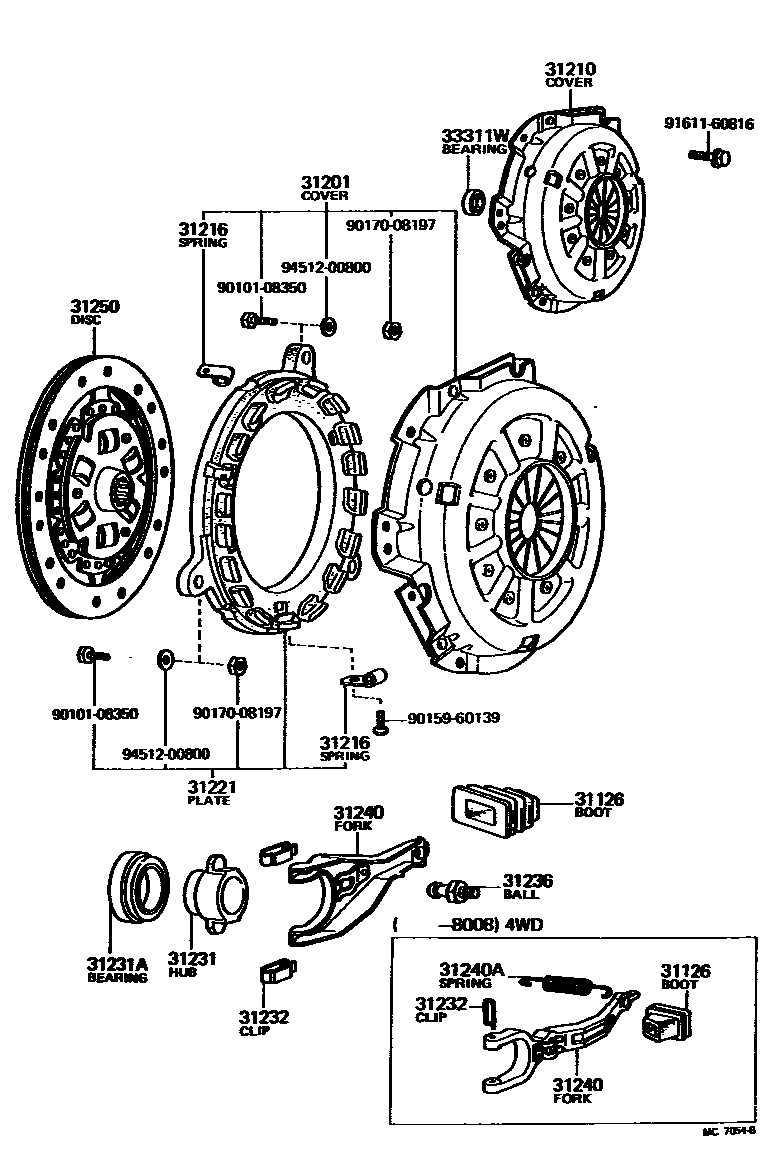

CLUTCH & RELEASE FORK

0001 1 0002 1

31126BOOT, CLUTCH RELEASE FORK

main31126-20050iRN37197901-198008

main31126-20060iRN3#,4#..MTM197808-198307

main31126-20070iLN40198208-198307

main31126-25021iLN40198101-198208

31201COVER SUB-ASSY, CLUTCH

main31201-29075iRN3#,42..MTM197808-197908

sub31201-29076

main31201-29076iRN3#,42..MTM197908-198008

sub31201-29085

main31201-29085iLN40198101-198307

sub31201-26010

main31201-29115iRN3#,4#..MTM198107-198307

sub31201-24010

main31201-39107iRN3#,4#..MTM198008-198107

sub31201-29115

31210COVER ASSY, CLUTCH

main31210-20130iRN3#,42..MTM197808-197908

sub31210-20131

main31210-20131iRN3#,42..MTM197908-198008

sub31210-26040

main31210-24010iRN3#,4#..MTM198107-198307

sub31210-24011

main31210-30182iRN3#,4#..MTM198008-198107

sub31210-24010

main31210-36029iLN40198101-198307

sub31210-36200

31216SPRING, CLUTCH RETRACTING

main31216-30010iLN40,RN3#,4#..MTM197808-198307

31221PLATE, CLUTCH PRESSURE

main31221-29025iRN3#,42..MTM197808-198008

main31221-39056iLN40198101-198307

sub31221-36025

main31221-39115iRN3#,4#..MTM198008-198307

sub31221-30100

31231HUB, CLUTCH RELEASE BEARING

main31231-20030iRN37197901-197903

sub31231-20031

main31231-20031iRN37197903-198008

main31231-20070iRN32,42..MTM197808-197903

sub31231-20071

main31231-20071iRN32,42..MTM197903-198008

main31231-20090iRN3#,4#..MTM198008-198307

main31231-30080iLN40198101-198208

31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)

main90363-40001iRN32,42..MTM197808-198002

sub90363-40008

main90363-40003iRN37197901-198002

sub90363-40010

main90363-40008iRN32,42..MTM198002-198008

main90363-40010iRN37198002-198008

main90363-40015iRN3#,4#..MTM198008-198012

sub90363-40022

main90363-40022iLN40,RN3#,4#..MTM198012-198307

31232CLIP OR SPRING, RELEASE BEARING HUB

main31232-22010iRN3#,4#..MTM197808-198307

main31232-30010iRN37197901-198008

main31232-30020iLN40198101-198208

31236BALL, RELEASE FORK

main31236-20020iRN3#,42..MTM197808-198108

sub31236-30060

main31236-25010iLN40198101-198208

main31236-30060iLN40,RN34,44198108-198307

main31236-35020iRN38,48198008-198307

31240FORK ASSY, CLUTCH RELEASE

main31204-20020iRN37197901-198008

sub31204-26010

main31204-20050iRN32,42..MTM197808-198008

main31204-20070iRN3#,4#..MTM198008-198307

sub31204-20072

main31204-20090iLN40198208-198307

main31204-26010iLN40198101-198208

31240ASPRING, TENSION(FOR CLUTCH RELEASE FORK RETURN)

main90506-16004iRN37197901-198008

31250DISC ASSY, CLUTCH

main31250-22101iLN40198105-198108

sub31250-22102

main31250-25063iLN40198101-198103

sub31250-35080

main31250-35050iRN3#,42..MTM197808-197902

sub31250-35051

main31250-35051iRN3#,42..MTM197902-198008

sub31250-35052

main31250-35070iRN3#,4#..MTM198008-198106

sub31250-35100

main31250-35080iLN40198103-198105

sub31250-22101

main31250-35090iLN40198108-198210

sub31250-60060

main31250-35100iRN3#,4#198106-198307

sub31250-35101

main31250-60060iLN40198210-198307

sub31250-26050

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iLN40,RN3#,4#..MTM198008-198307

sub90363-12024

main97143-06201iRN3#,42..MTM197808-198008

sub90363-12002

9010108350

main90101-08350

9015960139

main90159-60139

9017008197

main90170-08197

9161160816

main91611-60816

9451200800

main94512-00800

18 parts on this diagram · 2 diagrams in section
