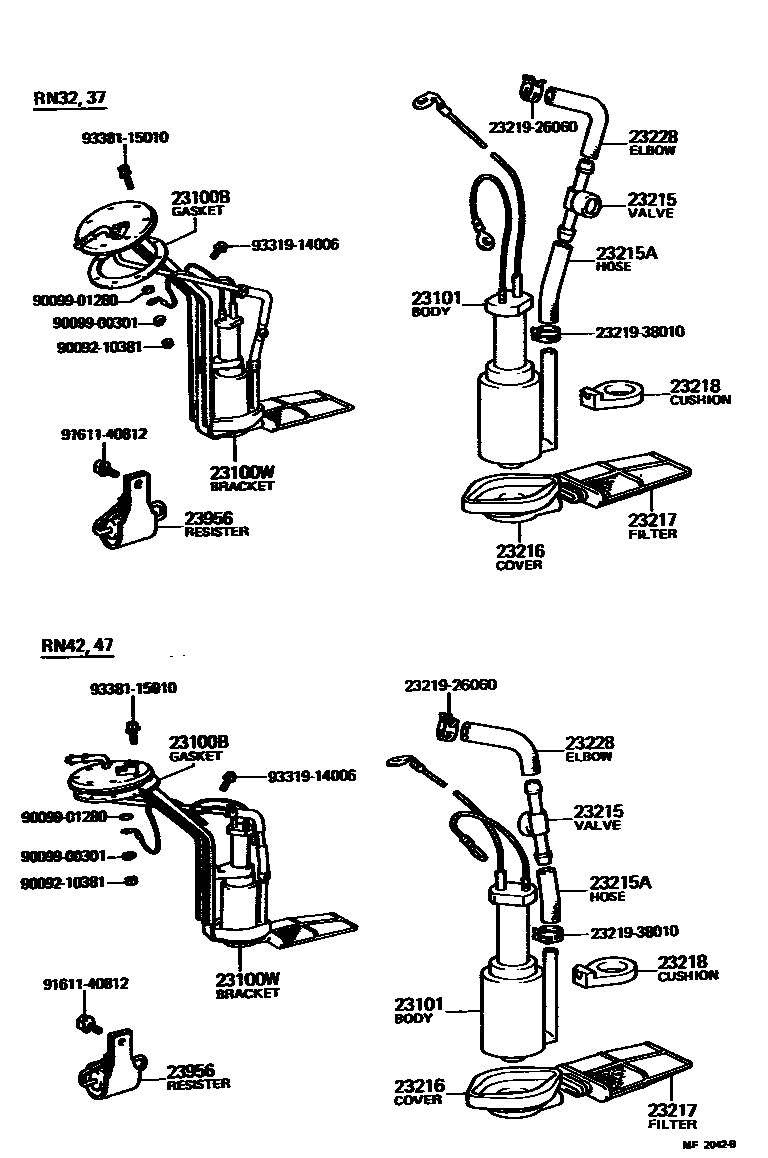

FUEL PUMP & PIPE

0001 1 0002 1

23100PUMP ASSY, FUEL

main23100-39315i20R..RN3#,4#197908-198008

sub23100-38070

main23100-39335i22R..RN3#,4#198008-198108

sub23100-39336

main23100-39336i22R..RN3#,4#198108-198307

23100BGASKET, FUEL PUMP

main83361-14010i20R..RN3#,4#197808-197908

main90923-05005i20R,22R..RN3#,4#197908-198307

sub90923-05019

23100WBRACKET(FOR FUEL PUMP & FUEL SENDER GAGE)

main85681-35010i20R..RN3#197808-197908

main85681-35020i20R..RN4#197808-197908

23101BODY SUB-ASSY, FUEL PUMP

main23101-38010i20R..RN3#,4#197808-197908

23215VALVE, RELIEF

main85675-21010i20R..RN3#,4#197808-197908

23215AHOSE, FUEL PUMP, NO.1

main90099-19101i20R..RN3#,4#197808-197908

23216COVER, FUEL PUMP

main85676-14010i20R..RN3#,4#197808-197908

23217FILTER, FUEL PUMP

main85677-14010i20R..RN3#,4#197808-197908

23218CUSHION, RUBBER

main23218-38010i20R..RN3#,4#197808-197908

23228ELBOW

main23228-38020i20R..RN3#,4#197808-197908

23956RESISTOR, FUEL PUMP

main85671-20011i20R..RN3#,4#197808-197908

2321926060CLIP, HOSE

main23219-26060

2321938010CLIP, HOSE

main23219-38010

9009210381

main90092-10381

9009900301

main90099-00301

9009901280

main90099-01280

9161140812

main91611-40812

9331914006

main93319-14006

9338115010

main93381-15010

19 parts on this diagram · 2 diagrams in section
