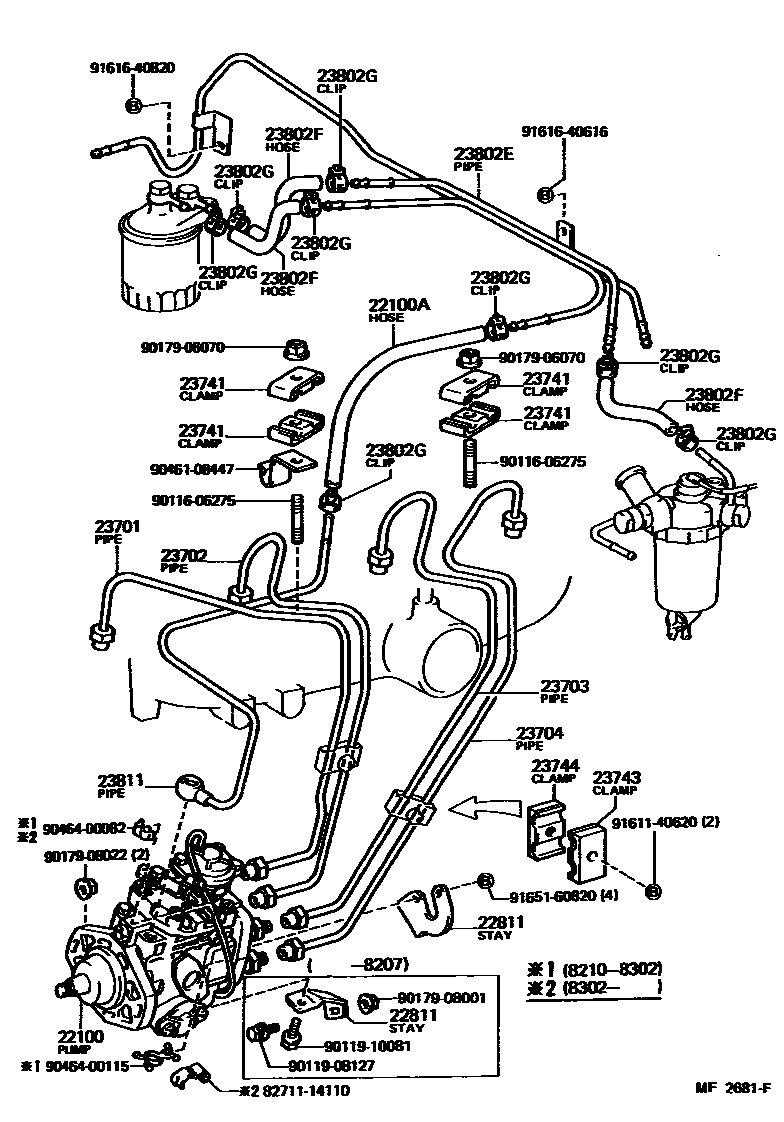

INJECTION PUMP ASSEMBLY

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-54170iL..LN40198101-198108

sub22100-54171

sub23811-54051

main22100-54171iL..LN40198108-198109

sub22100-54250

sub23600-54030

main22100-54250iL..LN40198108-198109

HAC

main22100-54250iL..LN40198109-198210

main22100-54290iL..LN40..SR5198210-198307

main22100-54300iL..LN40..DLX198210-198307

sub22100-54290

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main95332-08040iL..LN40198101-198307

L=400(*H,L=320)

sub95333-08040

22811STAY, INJECTION PUMP, NO.1

main22811-54030iL..LN40198101-198207

main22811-54040iL..LN40198207-198307

sub22811-54041

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-54051iL..LN40198101-198307

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-54050iL..LN40198101-198307

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-54050iL..LN40198101-198307

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-54050iL..LN40198101-198307

23741CLAMP, INJECTION PIPE, NO.1

main23741-56010iL..LN40198101-198307

23743CLAMP, INJECTION PIPE, NO.3

main23741-54010iL..LN40198101-198307

23744CLAMP, INJECTION PIPE, NO.4

main23742-54010iL..LN40198101-198307

23802EPIPE SUB-ASSY, FUEL

main23801-54010iL..LN40198101-198307

23802FHOSE, FUEL

main95332-08020iL..LN40198101-198307

*H,L=140

sub95333-08020

23802GCLIP

main90467-13001iL..LN40198101-198307

sub96135-51300

23811PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)

main23811-54050iL..LN40198101-198108

main23811-54051iL..LN40198108-198307

8271114110WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14110

9011606275

main90116-06275

9011908127

main90119-08127

9011910081

main90119-10081

9017906070

main90179-06070

9017908001

main90179-08001

9017908022

main90179-08022

9046108447

main90461-08447

9046400082

main90464-00082

9046400115

main90464-00115

9161140620

main91611-40620

9161640616

main91616-40616

9161640820

main91616-40820

9165160820

main91651-60820

28 parts on this diagram · 1 diagram in section
