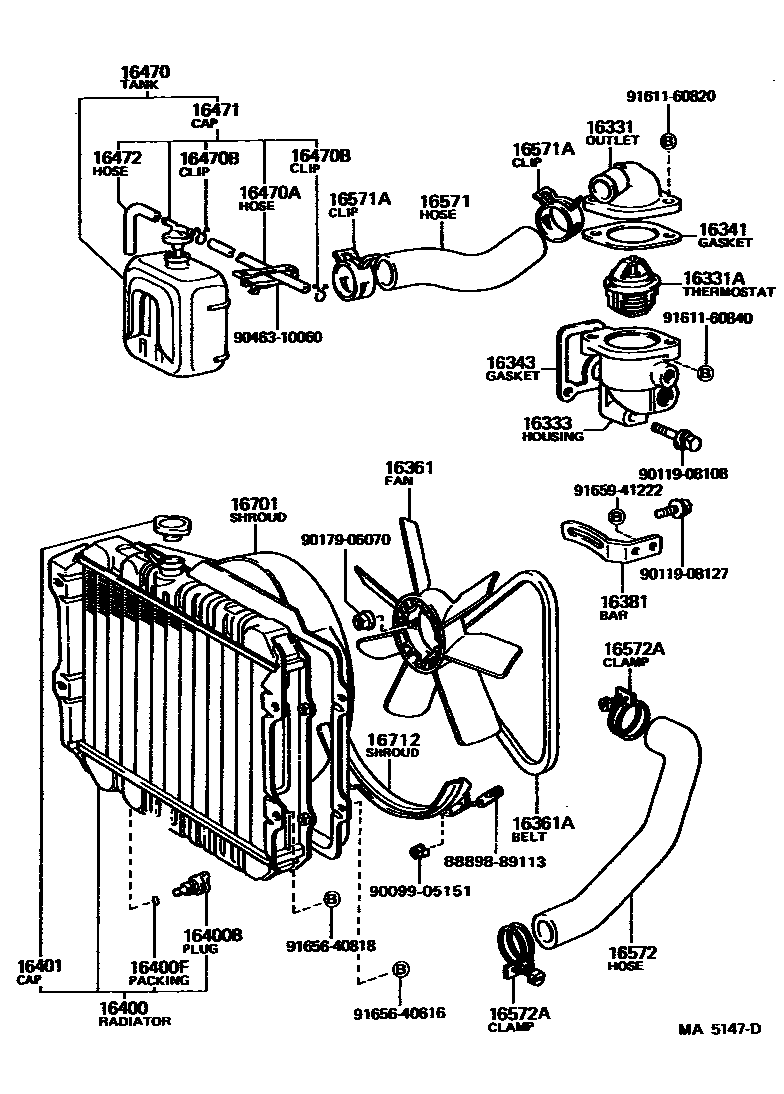

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

16331OUTLET, WATER

main16331-35020i22R..RN3#,4#198008-198208

main16331-35030i22R..RN38,48..USA198108-198208

CALIFORNIA SPEC

main16331-35050i22R..RN3#,4#198208-198307

sub16331-35051

main16331-37080i22R..RN38,48..USA198208-198307

CALIFORNIA SPEC,W/COOLER

main16331-38011i20R..RN3#,4#197808-197908

main16331-38012i20R..RN3#,4#197908-198008

main16331-54010iL..LN40198101-198307

16331ATHERMOSTAT

main90916-03034i20R..RN37..USA197808-198008

*WAX 82-95,FUJI-THOMSON

main90916-03034i20R..RN42..HVY197908-198008

*CAL,*WAX 82-95,FUJI-THOMSON

main90916-03036i20R..RN37..CND197901-198208

*WAX 88-100,FUJI-THOMSON

sub90916-03040

main90916-03043iL..LN40198101-198110

*WAX 88-100

sub90916-03062

main90916-03055i22R..RN3#,4#198208-198307

*WAX 88-100,*WAX 88-100

sub90916-03078

main90916-03062iL..LN40198110-198307

*WAX 88-100,*WAX 88-100

sub90916-03072

16333HOUSING, WATER OUTLET

main16333-54011iL..LN40198101-198307

16341GASKET, WATER OUTLET

main16341-35010i22R..RN3#,4#198208-198307

main16341-38010i20R..RN3#,4#197808-198008

sub16341-38012

main16341-38020i22R..RN3#,4#198008-198208

sub16341-38021

main16341-41010iL..LN40198101-198304

sub16341-38021

main16341-54020iL..LN40198304-198307

sub16341-34010

16343GASKET, WATER OUTLET HOUSING

main16343-54011iL..LN40198101-198307

sub16343-54021

16361FAN

main16361-34030iL..LN40198101-198307

7 BLADES

main16361-38010i20R,22R..RN3#,4#197808-198307

7 BLADES,OD=380

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02133iL..LN40198211-198307

L=990

main99331-00880i20R..RN3#,4#197808-197908

L=880

main99331-10880i20R,22R..RN3#,4#197908-198307

L=880

main99332-10985iL..LN40198101-198207

L=985

main99332-11000iL..LN40198207-198211

L=1000

16381BAR, FAN BELT ADJUSTING

main16381-38020i20R,22R..RN3#,4#197808-198307

main16381-54011iL..LN40198101-198307

16400RADIATOR ASSY

main16400-34290i20R..RN37197901-198008

main16400-34360i22R..RN38,48198008-198307

main16400-35020i22R..RN34,44..ATM198008-198009

sub16400-35021

sub16572-35011

main16400-35021i22R..RN34,44..ATM198009-198307

main16400-35030i22R..RN44..HVY198008-198009

sub16400-35031

sub16572-35011

main16400-35031i22R..RN44..HVY198009-198307

sub16400-35021

main16400-35050i22R..RN34,44..MTM..(3QT,HLF)198008-198009

sub16400-35051

sub16572-35011

main16400-35051i22R..RN34,44..MTM..(3QT,HLF)198009-198307

sub16400-35031

main16400-38100i20R..RN32,42..MTM..(3QT,HLF)197808-198008

main16400-38110i20R..RN32,42..3FC197808-198008

main16400-38150i20R..RN42..HVY197908-198008

sub16400-35050

sub16572-35010

main16400-54081iL..LN40198101-198307

sub16400-54082

16400BPLUG, RADIATOR DRAIN COCK

main90910-09054i20R,22R..RN3#,4#197808-198307

16400FPACKING(FOR RADIATOR DRAIN COCK)

main96710-01007iL..LN40197808-198110

sub96711-19007

main96711-19007iL..LN40198110-198307

16401CAP SUB-ASSY, RADIATOR

main16401-36011iL..LN40197808-198307

16470TANK ASSY, RADIATOR RESERVE

main16470-89106iL..LN40198101-198307

sub16470-89104

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main90445-12065iL..LN40198101-198307

L=600(*H,L=580)

sub90445-12078

main90445-12077i20R,22R..RN3#,4#197808-198307

sub90099-33370

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i20R,22R..RN3#,4#197808-198307

16471CAP SUB-ASSY, RESERVE TANK

main16405-89104iL..LN40198101-198307

main85037-14010i20R..RN3#,4#197808-197902

main85339-14010i20R,22R..RN3#,4#197902-198307

16472HOSE, BREATHER

main85338-14020i20R,22R..RN3#,4#..USA197902-198307

main85338-20020i20R,22R..RN3#,4#..USA197902-198307

COLD SPEC

main85338-22020iL..LN40198110-198307

main85338-89102iL..LN40198101-198110

16571HOSE, RADIATOR, INLET

main16571-35040i22R..RN3#,4#198103-198307

main16571-37010i20R,22R..RN3#,4#197908-198103

sub16571-35030

main16571-38012i20R..RN3#,4#197808-197908

main16571-54050iL..LN40198101-198307

sub16571-54090

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-37001iL..LN40198101-198108

WATER OUTLET SIDE

sub90467-37003

main90467-37001i20R..RN3#,4#197808-198008

OUTLET SIDE,ID=37

sub90467-37003

main90467-37001i22R..RN3#,4#198008-198307

ID=37

sub90467-37003

main90467-37001iL..LN40198108-198307

sub90467-37003

main96111-10440i20R..RN3#,4#197808-198008

RADIATOR SIDE,ID=44

main96111-10440iL..LN40198101-198108

RADIATOR SIDE

16572HOSE, RADIATOR, OUTLET

main16572-35010i22R..RN34,44198008-198009

main16572-35011i22R..RN34,44198009-198307

main16572-38080i20R,22R..RN37,38,47,48197901-198307

RADIATOR SIDE

main16572-38090i20R..RN32,42197808-198008

main16572-54050iL..LN40198101-198307

main16573-38020i20R,22R..RN37,38,47,48197901-198307

ENGINE SIDE

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90460-50016i22R..RN34,44198008-198307

PUMP SIDE

sub96111-10500

main90467-37001i22R..RN34,44198008-198009

RADIATOR SIDE

sub90467-37003

main96111-10450i22R..RN34,44198110-198307

RADIATOR SIDE

main96111-10460i22R..RN34,44197808-198307

RADIATOR SIDE

main96111-10460i20R,22R..RN37,38,47,48197901-198307

main96111-10480i20R..RN32,42197808-198008

PUMP SIDE

main96111-10500iL..LN40198101-198307

PUMP SIDE

16701SHROUD SUB-ASSY, FAN

main16701-89101iL..LN40198101-198307

main16711-89106i20R,22R..RN32,34,42,44197808-198307

main16711-95111i20R,22R..RN37,38,47,48197901-198307

16712SHROUD, FAN, NO.2

main16831-89102i20R,22R..RN32,34,42,44197808-198307

W/COOLER

main16831-89103iL..LN40198101-198307

W/COOLER

main16831-95111i20R,22R..RN37,38,47,48197901-198307

W/COOLER

8889889113TUBE SUB-ASSY, EQUALIZER

main88898-89113

9009905151

main90099-05151

9011908108

main90119-08108

9011908127

main90119-08127

9017906070

main90179-06070

9046310060

main90463-10060

9161160820

main91611-60820

9161160840

main91611-60840

9165640616

main91656-40616

9165640818

main91656-40818

9165941222

main91659-41222

34 parts on this diagram · 7 diagrams in section
