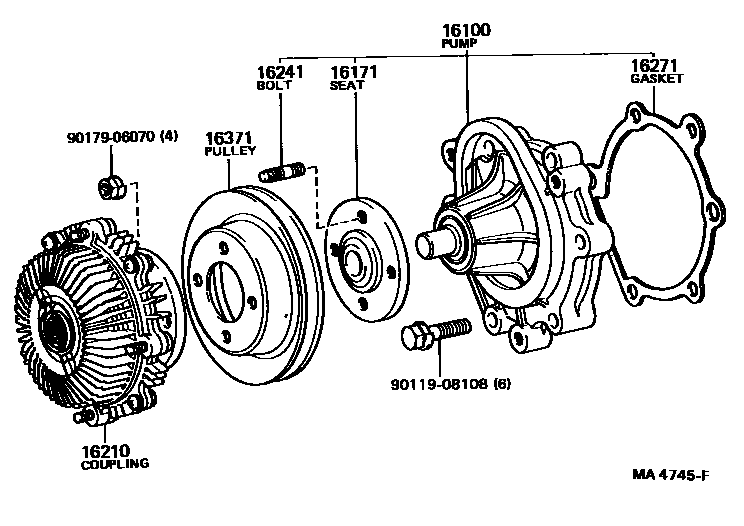

WATER PUMP

0001 1 0002 1

16100PUMP ASSY, ENGINE WATER

main16100-59049iL..LN40198101-198105

sub16100-59125

main16100-59125iL..LN40198105-198108

sub16100-59215

main16100-59126iL..LN40198108-198210

sub16100-59127

main16100-59127iL..LN40198210-198307

sub16100-59128

16171SEAT, WATER PUMP PULLEY

main16171-38022i20R,22R..RN3#,4#197808-198307

main16171-54010iL..LN40198101-198108

main16171-54011iL..LN40198108-198307

16210COUPLING ASSY, FLUID

main16210-38050i22R..RN34,44..MTM197808-198307

main16210-38060i22R..RN44..4FC198208-198307

main16210-54040iL..LN40198101-198307

16241BOLT, STUD(FOR WATER PUMP COUPLING)

main16193-13020iL..LN40198208-198307

main16193-33030i22R..RN3#,4#198008-198307

main16193-54010iL..LN40198101-198208

main16241-28020i20R..RN3#,4#197808-198008

16271GASKET, WATER PUMP

main16271-54011iL..LN40198101-198105

sub16271-54012

main16271-54012iL..LN40198105-198307

sub16271-54013

16371PULLEY, FAN

main16173-38011i20R,22R..RN3#,4#197808-198307

main16371-54010iL..LN40198101-198307

9011908108

main90119-08108

9017906070

main90179-06070

8 parts on this diagram · 2 diagrams in section
