11802BEARING SET, CAMSHAFT

main11802-54010i198101-198307

STD

main11803-54010i198101-198307

U/S 0.125

main11804-54010i198101-198307

U/S 0.25

13502IDLER SUB-ASSY, TIMING BELT, NO.2

main13503-54010i198205-198307

sub13503-54020

13505IDLER SUB-ASSY, TIMING BELT, NO.1

main13505-54010i198101-198307

13505ASPRING, TENSION(FOR IDLER)

main90506-14038i198101-198307

13511CAMSHAFT

main13501-54020i198210-198307

main13501-54030i198205-198210

main13511-35010i198008-198208

main13511-38011i197808-198307

main13511-54010i198101-198205

sub13501-54H00

13511APIN, STRAIGHT(FOR CAMSHAFT KNOCK)

main90250-05121i198205-198307

L=15,OD=5

main90250-06001i197808-198307

L=14,OD=6,L=14,OD=6

13523GEAR OR SPROCKET, CAMSHAFT TIMING

main13523-35010i198207-198307

N=36

sub13523-35020

main13523-38011i197808-198207

N=36

13523AKEY, WOODRUFF(FOR TIMING GEAR)

main90280-05008i198101-198205

13523BWASHER, PLATE(FOR TIMING GEAR)

main90201-14007i198101-198210

sub90201-14030

13523PPULLEY, CAMSHAFT TIMING

main13523-54010i198101-198205

N=42

main13523-54020i198205-198307

13558BRACKET, SPRING(FOR IDLER)

main13558-54010i198101-198307

13568BELT, TIMING

main13568-59015i198101-198205

sub13568-59016

main90280-05008i198205-198307

13613PPULLEY, INJECTION PUMP DRIVE

main13613-54010i198101-198205

N=42

sub13613-54030

main13613-54020i198205-198307

sub13603-54020

13711VALVE, INTAKE

main13711-35010i198008-198307

sub13711-35051

main13711-38010i197808-198008

main13711-54010i198101-198307

13711ASEAL OR RING, O(FOR VALVE STEM OIL)

main90913-02023i198108-198212

main90913-02024i197808-198108

sub90913-02023

main90913-02036i198101-198107

main90913-02053i198212-198307

sub90913-02110

main90913-02060i198107-198307

sub90913-02059

13711BSPRING, COMPRESSION(FOR INNER)

main90501-44002i198101-198307

WD=4.35,CW=6.25

13711DWASHER, PLATE(FOR VALVE SPRING SEAT)

main90201-20579i197808-198307

13715VALVE, EXHAUST

main13715-35020i198008-198307

main13715-38050i197808-198008

main13715-54010i198101-198307

13741RETAINER, VALVE SPRING

main13741-38010i197808-198307

main13741-54010i198101-198307

13741ALOCK, VALVE SPRING RETAINER

main90913-03005i197808-198307

main90913-03016i198101-198307

13801ARM SUB-ASSY, VALVE ROCKER, NO.1

main13801-35010i198110-198307

main13801-54010i198101-198106

sub13801-54011

main13801-54011i198106-198207

main13801-54012i198207-198210

main13801-54020i198210-198307

sub13801-54021

main13811-38010i197808-198110

sub13801-35010

sub90179-08049

sub90913-05019

13801BNUT, HEXAGON(FOR VALVE ADJUSTING)

main90170-08210i197808-198307

sub90170-08005

main90179-08049i198108-198307

13801CSCREW, VALVE ADJUSTING

main90913-05016i197808-198102

sub90913-05019

main90913-05019i198102-198307

13801DSPRING, COMPRESSION(FOR ROCKER ARM)

main90501-12008i197808-198307

WD=1.4,CW=8.5

sub90501-14064

main90501-16163i198101-198307

13802ARM SUB-ASSY, VALVE ROCKER, NO.2

main13802-54010i198101-198106

sub13802-54011

main13802-54011i198106-198210

main13802-54020i198210-198307

sub13802-54021

13901SHAFT SUB-ASSY, VALVE ROCKER, NO.1

main13901-54010i198101-198307

main13911-38010i197808-197811

sub13911-38011

main13911-38011i197811-198307

sub13911-35010

13951SUPPORT, VALVE ROCKER, NO.1

main13951-38011i197808-197910

sub13951-38012

sub90116-08089

main13951-38012i197910-198307

sub13951-35010

main13951-54010i198101-198210

main13951-54020i198210-198307

13951ABOLT(FOR ROCKER SUPPORT SET)

main90119-08191i198101-198307

*8-1.25PX55-30

13951BSCREW OR BOLT(FOR VALVE ROCKER SHAFT LOCK)

main91611-60614i198101-198207

sub91611-B0614

main91611-60620i198207-198307

main93210-16008i197808-198307

sub93210-56008

9009905166

main90099-05166

9010510061

main90105-10061

9010908021

main90109-08021

9011914005

main90119-14005

9020108001

main90201-08001

9020109562

main90201-09562

9151161435

main91511-61435

9161160850

main91611-60850

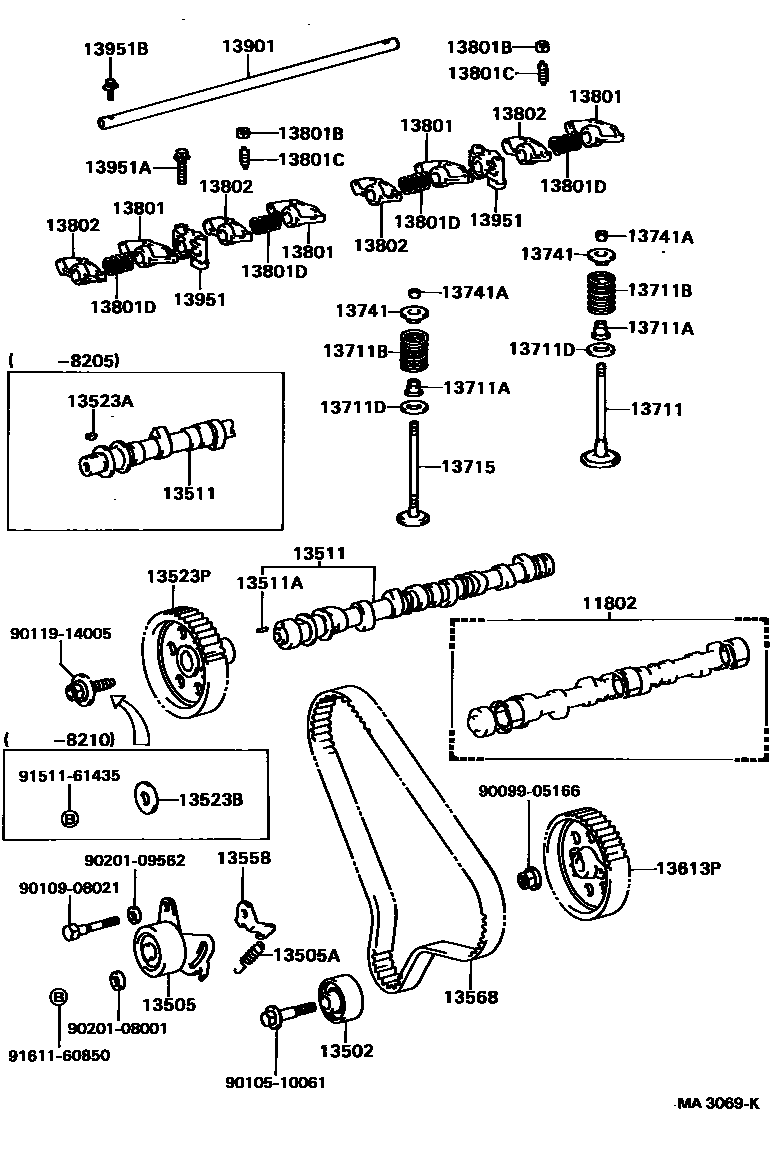

CAMSHAFT & VALVE
