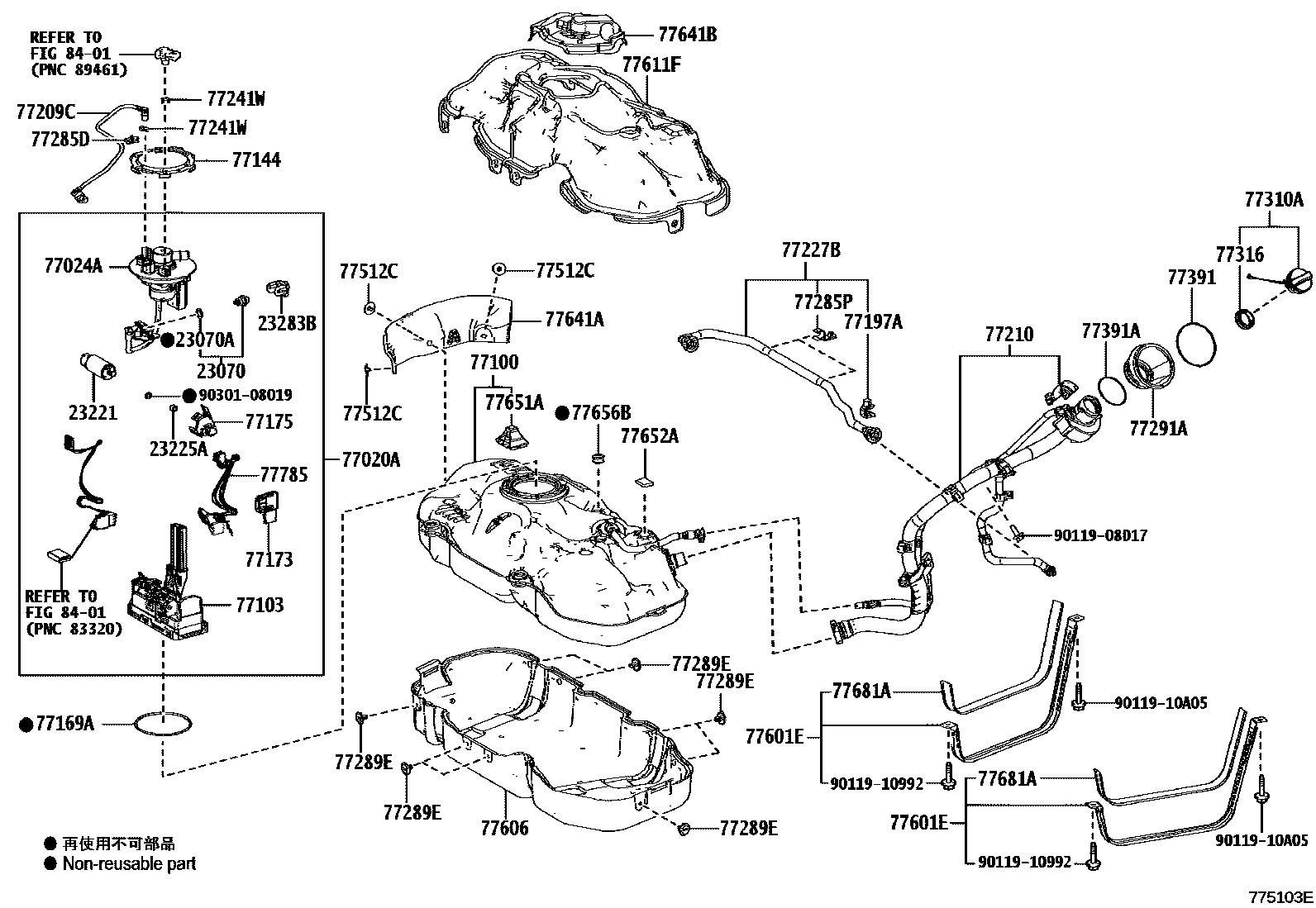

FUEL TANK & TUBE
23070VALVE ASSY, FUEL MAIN
23070ARING, O, NO.1(FOR FUEL MAIN VALVE)
23221PUMP, FUEL
23225ASPACER, FUEL PUMP
23283BHOLDER, FUEL PRESSURE REGULATOR
77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE
77024APLATE SUB-ASSY, FUEL SUCTION
77103SUB-TANK SUB-ASSY, FUEL
77144RETAINER, FUEL PUMP GAUGE
77169AGASKET, FUEL SUCTION TUBE SET
77175SUPPORT, FUEL SUCTION, NO.2
77197ACLAMP, EVAPORATION VENT TUBE, NO.2
77209CTUBE SUB-ASSY, FUEL TANK MAIN
77210PIPE ASSY, FUEL TANK FILLER
77227BTUBE, FUEL TANK BREATHER, NO.7
77285DCLAMP, FUEL TUBE, NO.1
77285PCLAMP, NO.1(FOR CHARCOAL CANISTER PIPE)
77289ECLAMP, FUEL TANK, NO.1
77291ASHIELD, FUEL TANK FILLER PIPE
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77391RING, FUEL INLET BOX
77391ARING, FUEL INLET BOX
77512CBRACKET, FUEL TANK
77601EBAND SUB-ASSY, FUEL TANK
77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77641APROTECTOR, FUEL TANK, NO.1
77641BCOVER, FUEL TANK
77651ACUSHION, FUEL TANK, NO.1
77652ACUSHION, FUEL TANK, NO.2
77656BCUSHION, FUEL TANK, NO.6
77681ASEAT, FUEL TANK BAND
77785HARNESS, FUEL PUMP
8401
9011908D17
main90119-08D17
9011910992
main90119-10992
9011910A05
main90119-10A05
9030108019
main90301-08019
42 parts on this diagram · 3 diagrams in section
