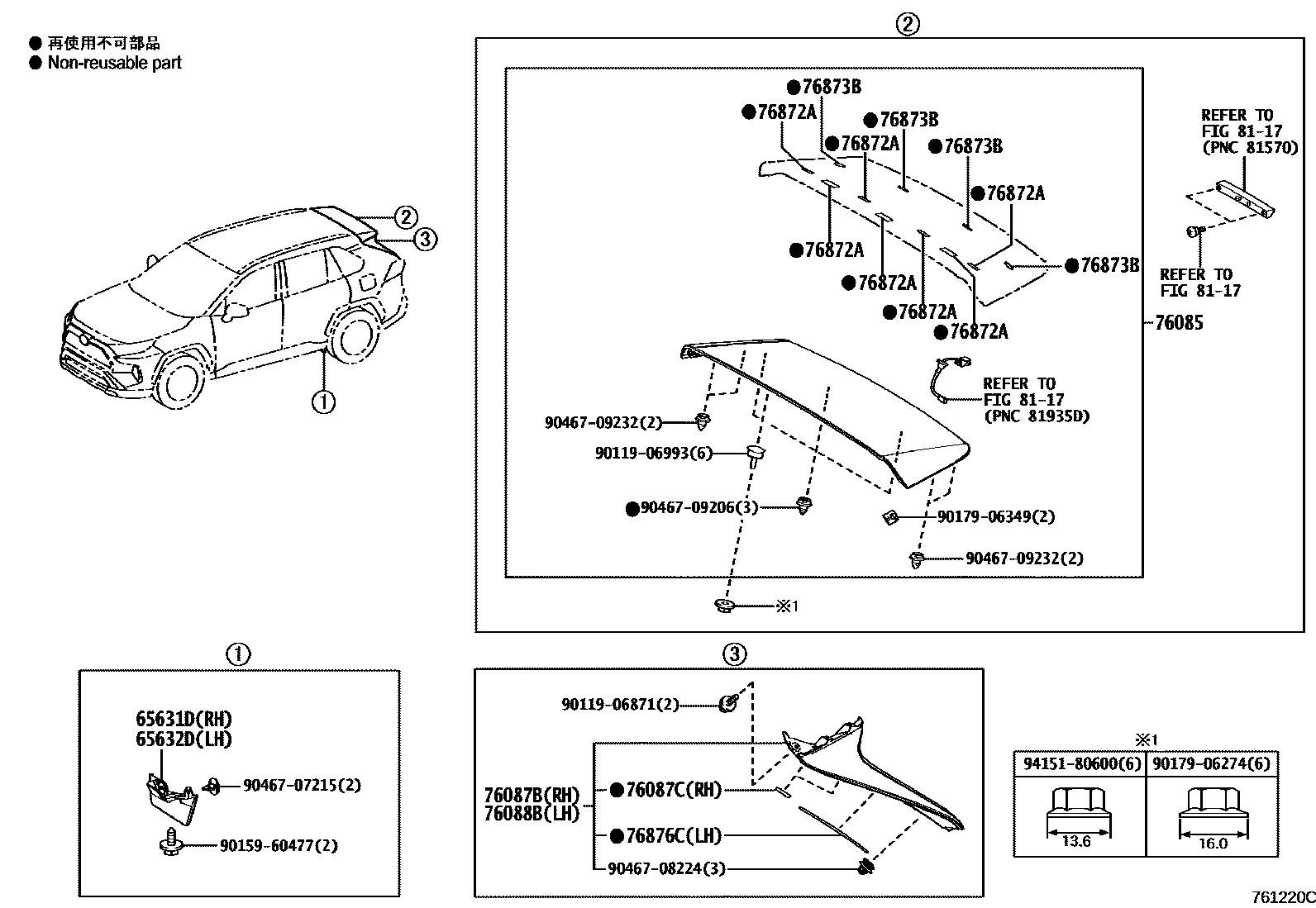

SPOILER & SIDE MUDGUARD

65631DPLATE, REAR WHEEL HOUSE, FRONT RH

main65631-42040iAXAP54202006-202210

65632DPLATE, REAR WHEEL HOUSE, FRONT LH

main65632-42040iAXAP54202006-202210

76085SPOILER SUB-ASSY, REAR

main76085-42908iAXAP54202006-202210

PAINT REQ.

76087BSPOILER SUB-ASSY, REAR SIDE, RH

main76087-42050iAXAP54202006-202210

76087CPROTECTOR, REAR SIDE SPOILER

main87268-42010×4iAXAP54202006-202210

76088BSPOILER SUB-ASSY, REAR SIDE, LH

main76088-42050iAXAP54202006-202210

76872APROTECTOR, REAR SPOILER, NO.1

main76872-42060×7iAXAP54202006-202210

76873BPROTECTOR, REAR SPOILER, NO.2

main76873-42020×4iAXAP54202006-202210

76876CPROTECTOR, REAR SPOILER, NO.4

main76875-42020×2iAXAP54202006-202210

8117

9011906871

main90119-06871

9011906993

main90119-06993

9015960477

main90159-60477

9017906274

main90179-06274

9017906349

main90179-06349

9046707215

main90467-07215

9046708224

main90467-08224

9046709206

main90467-09206

9046709232

main90467-09232

9415180600

main94151-80600

20 parts on this diagram · 1 diagram in section
