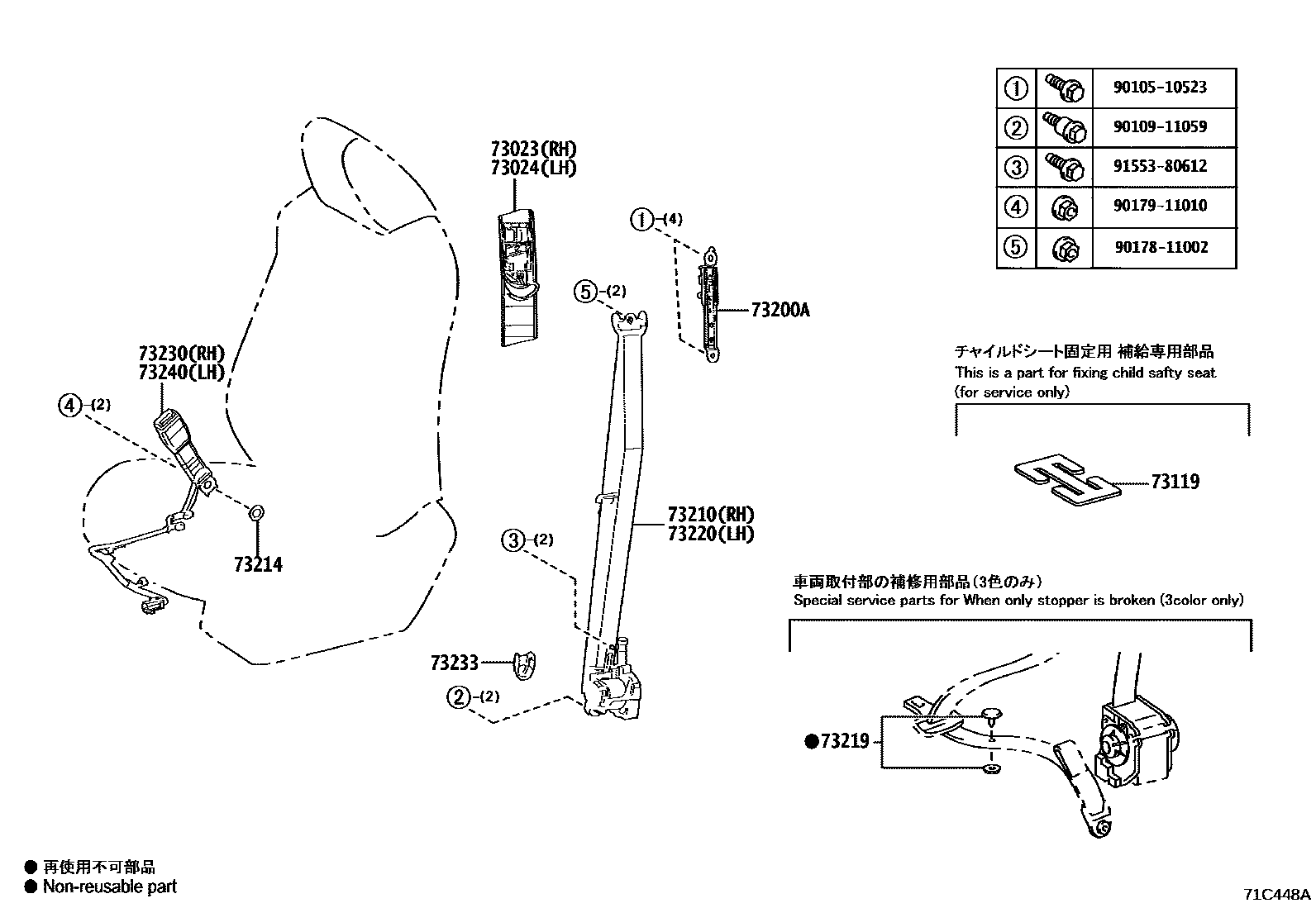

SEAT BELT

0001 1FRONT SEAT 0002 1REAR SEAT

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-12030-C0iAXAP54202006-202310

BLACK,TRIM2#

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-12020-C0iAXAP54202006-202310

BLACK,TRIM2#

73119PLATE, SEAT BELT WEBBING CLIP

main73119-22010¥1,110

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-42020iAXAP54¥3,340202006-202310

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-42440-C1iAXAP54202006-202310

BLACK,TRIM2#

73214PLATE, FRONT SEAT BELT ANCHOR

main73214-75010iAXAP54¥170202006-202310

73219STOPPER, TONGUE PLATE

main73219-02010iAXAP54¥80202006-202310

BLACK

main73219-02020iAXAP54¥80202006-202310

GRAY

main73219-02030iAXAP54¥80202006-202310

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-47221-C7iAXAP54202006-202207

BLACK,TRIM2#

sub73220-47221¥31,500

sub73220-47222¥26,200

main73220-47222-C7iAXAP54202208-202310

BLACK/BLACK,TRIM2#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-42300-C0iAXAP54202006-202310

BLACK,TRIM2#

73233COVER, LAP BELT OUTER ANCHOR

main73233-60020-C1iAXAP54202006-202310

BLACK,TRIM2#

sub73233-60020¥500

sub73233-35010¥620

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-42270-C0iAXAP54202006-202310

BLACK,TRIM2#

9010510523

main90105-10523¥100

9010911059

main90109-11059¥240

9017811002

main90178-11002¥100

9017911010

main90179-11010¥110

9155380612

main91553-80612¥60

16 parts on this diagram · 2 diagrams in section
