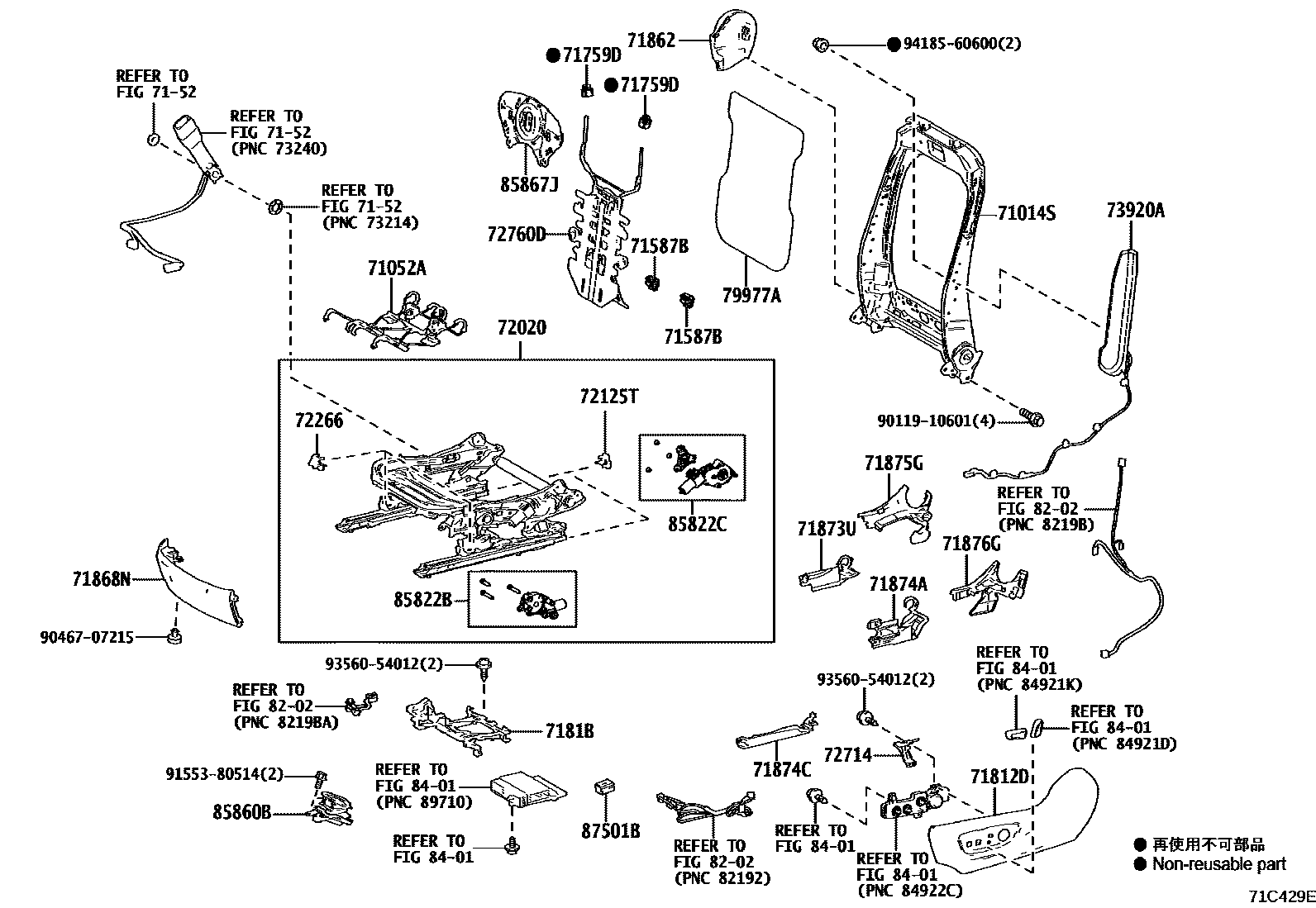

SEAT & SEAT TRACK

0001 1DRIVER SIDE,POWER SEAT 0002 1PASSENGER SIDE,POWER SEAT 0003 1PASSENGER SIDE,POWER SEAT 0004 1PASSENGER SIDE,MANUAL SEAT 0005 1FRONT SEAT COVER & PAD 0006 1FRONT SEAT FITTING PARTS 0007 1REAR SEAT BACK 0008 1REAR SEAT CUSHION 0009 1REAR SEAT FITTING PARTS

71014SFRAME SUB-ASSY, FRONT SEATBACK, LH

main71014-42211iAXAP54202006-202310

71052ASPRING SUB-ASSY, FRONT SEAT CUSHION, LH

main71051-47090iAXAP54202006-202310

7152

71587PROTECTOR, FRONT SEATBACK EDGE

main71587-47010iAXAP54202006-202310

71587BPROTECTOR, FRONT SEATBACK EDGE

main71587-47010iAXAP54202006-202310

71759DHOOK, FRONT SEATBACK, NO.2

main71759-50040iAXAP54202006-202310

71812DSHIELD, FRONT SEAT CUSHION, LH

main71812-42210-C0iAXAP54202006-202310

BLACK,TRIM2#

7181BHOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH

main7181B-42010iAXAP54202006-202310

71862SHIELD, FRONT SEAT CUSHION, INNER LH

main71862-47090-C1iAXAP54202006-202310

BLACK,TRIM2#

sub71862-47090

71868NSHIELD, FRONT SEAT CUSHION, FRONT LH

main71868-42040-C0iAXAP54202006-202310

BLACK,TRIM2#

71873SHIELD, FRONT SEAT CUSHION, LOWER RH

main71874-42040

main71873-42050

main71873-60160

71873USHIELD, FRONT SEAT CUSHION, LOWER RH

main71874-42040iAXAP54202006-202310

71874SHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-42050

main71873-42060

main71874-42060

71874ASHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-42050iAXAP54202006-202310

71874CSHIELD, FRONT SEAT CUSHION, LOWER

main71874-42060iAXAP54202006-202310

71875GCOVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)

main71876-42090-C0iAXAP54202006-202310

BLACK,TRIM2#

71876GCOVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)

main71876-42080-C0iAXAP54202006-202310

BLACK,TRIM2#

72020ADJUSTER ASSY, FRONT SEAT, LH

main72020-42370iAXAP54202006-202310

72125TCOVER, FRONT SEAT TRACK, UPPER REAR LH

main72125-47020iAXAP54202006-202310

sub72125-47010

72266COVER, SEAT TRACK UPPER RAIL, LH

main72265-47020iAXAP54202006-202310

72714BRACKET, SEAT ADJUSTER SHIELD CLAMP, LH

main72714-42010iAXAP54202006-202310

72760DADJUSTER ASSY, LUMBAR SUPPORT, LH

main72750-33140iAXAP54202006-202310

73920AAIRBAG ASSY, FRONT SEAT, LH

main73920-42080iAXAP54202006-202310

79977FELT, SEATBACK

main79977-76010

main79977-12090

79977AFELT, SEATBACK

main79977-76010iAXAP54202006-202310

8202

8401

85822BMOTOR ASSY, POWER SEAT TILT, LH

main85801-42060iAXAP54202210-202310

main85801-42060iAXAP54202006-202210

W(POWER SEAT)

main85801-50130iAXAP54202006-202210

W(POWER SEAT+MEMORY)

85822CMOTOR ASSY, POWER SEAT LIFTER, LH

main85801-42050iAXAP54202006-202210

W(POWER SEAT)

main85801-42050iAXAP54202210-202310

main85801-50140iAXAP54202006-202210

W(POWER SEAT+MEMORY)

85860BBLOWER ASSY, SEAT CUSHION CLIMATE CONTROL, LH

85867JBLOWER, SEATBACK CLIMATE CONTROL, LH

87501BCONTROL SUB-ASSY, SEAT HEATER, LH

9011910601

main90119-10601

9046707215

main90467-07215

9155380514

main91553-80514

9356054012

main93560-54012

9418560600

main94185-60600

37 parts on this diagram · 9 diagrams in section
