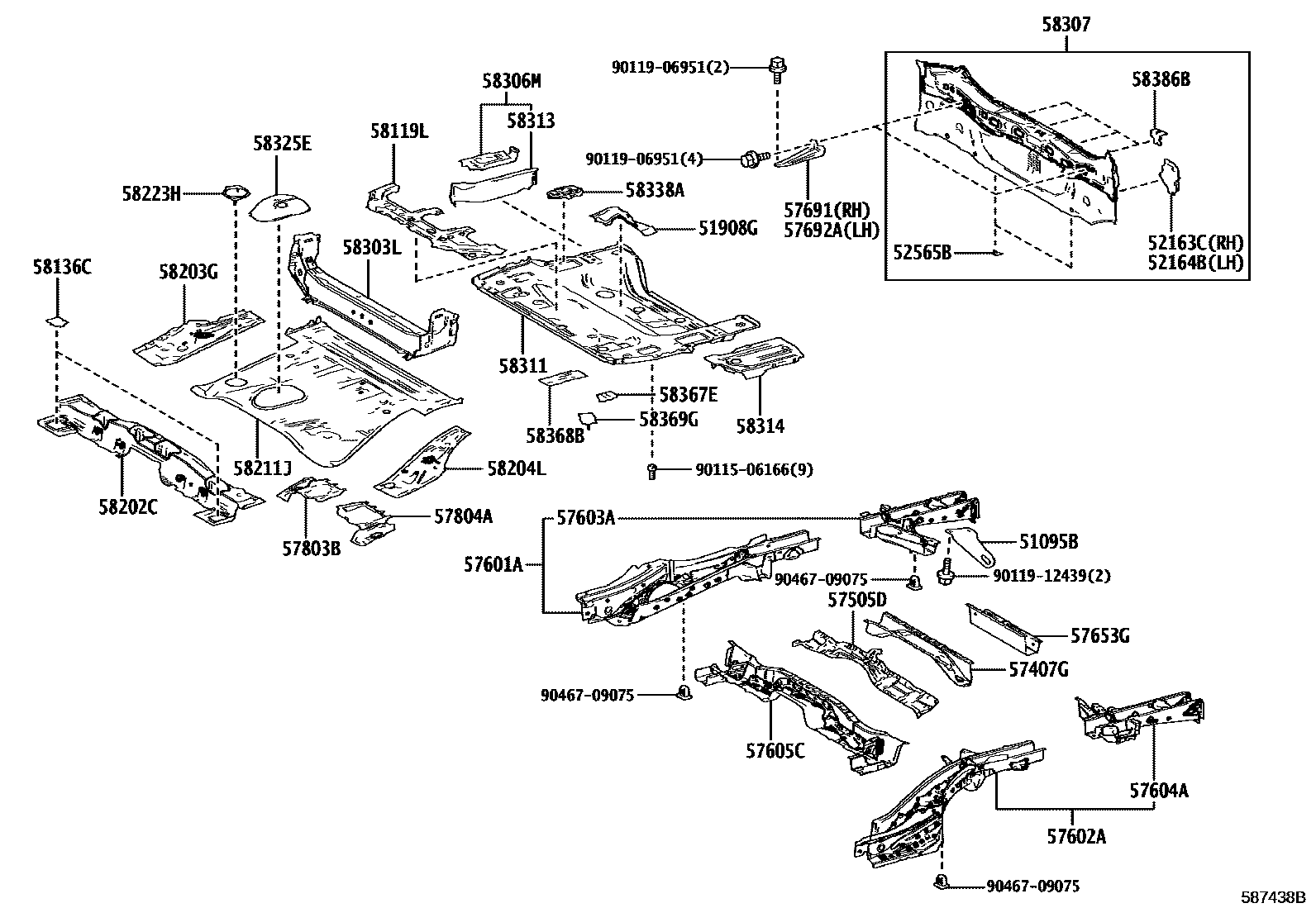

REAR FLOOR PANEL & REAR FLOOR MEMBER
51095BHOOK SUB-ASSY, TRANSPORT, REAR RH
51908GBRACKET SUB-ASSY, SPARE TIRE CARRIER
52163CPLATE, REAR BUMPER REINFORCEMENT, RH
52164BPLATE, REAR BUMPER REINFORCEMENT, LH
52565BRETAINER, REAR BUMPER, LOWER
57505DREINFORCEMENT SUB-ASSY, FRONT FLOOR UNDER
57601AMEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57602AMEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57605CMEMBER SUB-ASSY, REAR FLOOR CROSS
57653GMEMBER, REAR FLOOR CROSS, NO.2
57691BRACE, REAR FLOOR NO.2 CROSSMEMBER, INNER RH
57692ABRACE, REAR FLOOR NO.2 CROSSMEMBER, INNER LH
57803BREINFORCE SUB-ASSY, BELT ANCHOR, NO.2 RH
57804AREINFORCE SUB-ASSY, BELT ANCHOR, NO.2 LH
58136CCOVER, REAR FLOOR HOLE
58202CPAN SUB-ASSY, CENTER FLOOR, FRONT
58203GREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, RH.
58204LREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, LH
58211JPAN, CENTER FLOOR
58223HREINFORCEMENT, FLOOR PANEL SIDE, RH
58303LPANEL SUB-ASSY, REAR FLOOR PARTITION
58306MPANEL SUB-ASSY, REAR FLOOR SIDE
58313PANEL, REAR FLOOR SIDE, RH
58314PANEL, REAR FLOOR SIDE, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58338AREINFORCEMENT, REAR FLOOR PAN, NO.2
58367EBRACKET, FUEL TUBE, NO.1
58368BBRACKET, FUEL TUBE, NO.2
58369GBRACKET, FUEL TUBE, NO.3
58386BBRACKET, REAR BUMPER COVER, NO.2
9011506166
main90115-06166
9011906951
main90119-06951
9011912439
main90119-12439
9046709075
main90467-09075
40 parts on this diagram · 1 diagram in section
