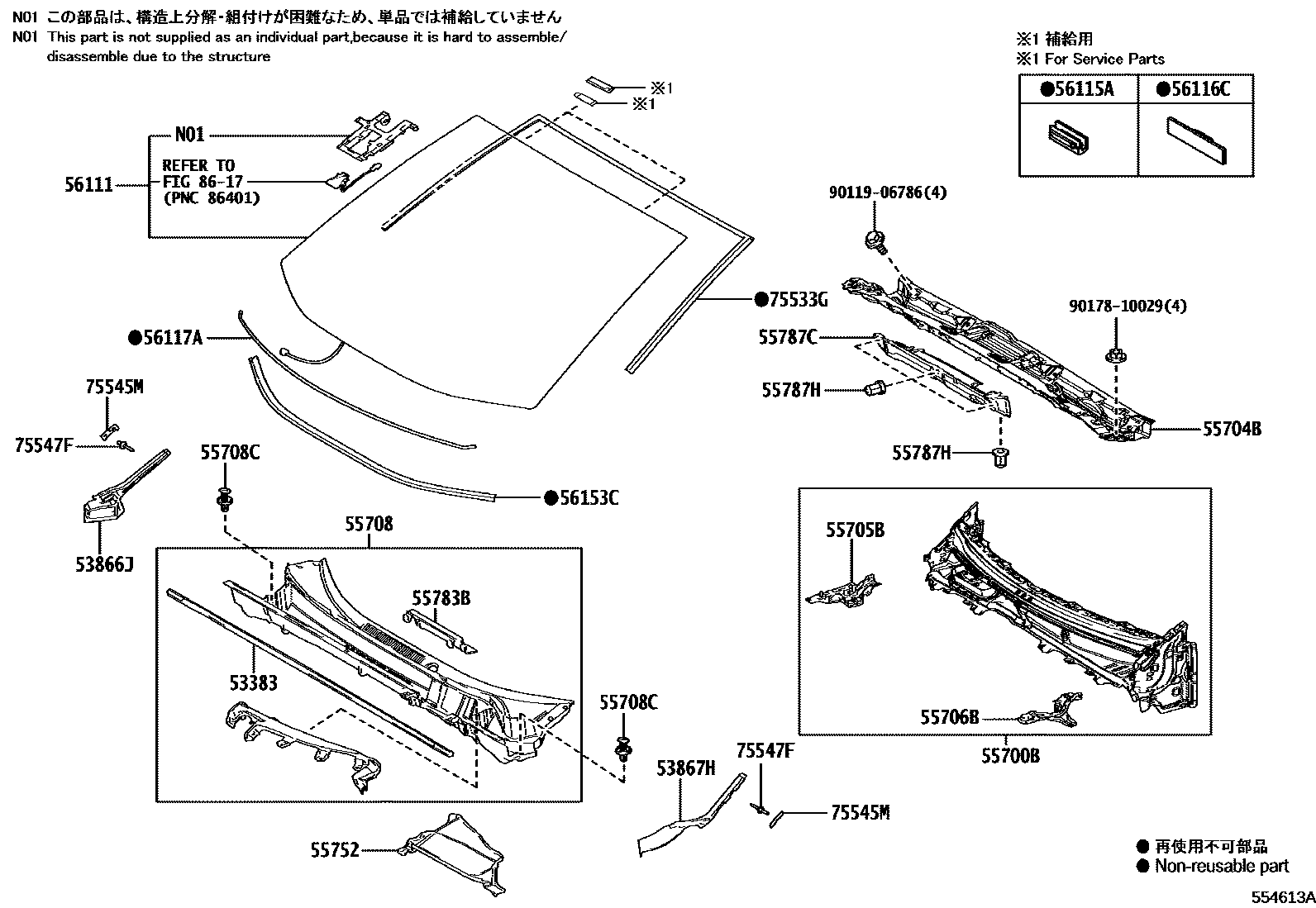

COWL PANEL & WINDSHIELD GLASS
53383SEAL, HOOD TO COWL TOP
53866JSEAL, FRONT FENDER TO COWL SIDE, RH
53867HSEAL, FRONT FENDER TO COWL SIDE, LH
55700BCOWL ASSY
55704BPANEL SUB-ASSY, COWL VENTILATOR
55705BPANEL SUB-ASSY, COWL TOP SIDE, RH
55706BPANEL SUB-ASSY, COWL TOP SIDE, LH
55708LOUVER SUB-ASSY, COWL TOP VENTILATOR
55708CCLIP, COWL TOP VENTILATOR LOUVER
55752SHIELD, COWL VENTILATOR SPLASH
55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1
55787CINSULATOR, COWL TOP PANEL, NO.1
55787HCLIP, COWL TOP PANEL INSULATOR
BLACK
56111GLASS, WINDSHIELD
COLD AREA SPEC-WITH
COLD AREA SPEC-WITH
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
*D,L=1380,KOREA SPEC&COLD AREA SPEC-WITH&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE
*D,L=1380,PHV PREMIUM PACKAGE(PANORAMIC *MR)&COLD AREA SPEC-WITH&INSIDE REAR VIEWMIRROR-DIGITAL INNER MIRROR & HOME LINK
*D,L=1380,PHV PREMIUM PACKAGE(PANORAMIC *MR)&INSIDE REAR VIEW MIRROR-DIGITAL INNERMIRROR & HOME LINK
*D,L=1380,COLD AREA SPEC-WITH
*D,L=1380
*D,L=1380,COLD AREA SPEC-WITH&HEAD-UP DISPLAY-WITH
*D,L=1380,HEAD-UP DISPLAY-WITH
56153CMOULDING, FRONT WINDOW, INNER CENTER
75533GMOULDING, WINDSHIELD, OUTSIDE
75545MCLIP, WINDSHIELD OUTSIDE MOULDING
75547FCLIP, WINDSHIELD OUTSIDE MOULDING
8617
9011906786
main90119-06786
9017810029
main90178-10029
24 parts on this diagram · 1 diagram in section
