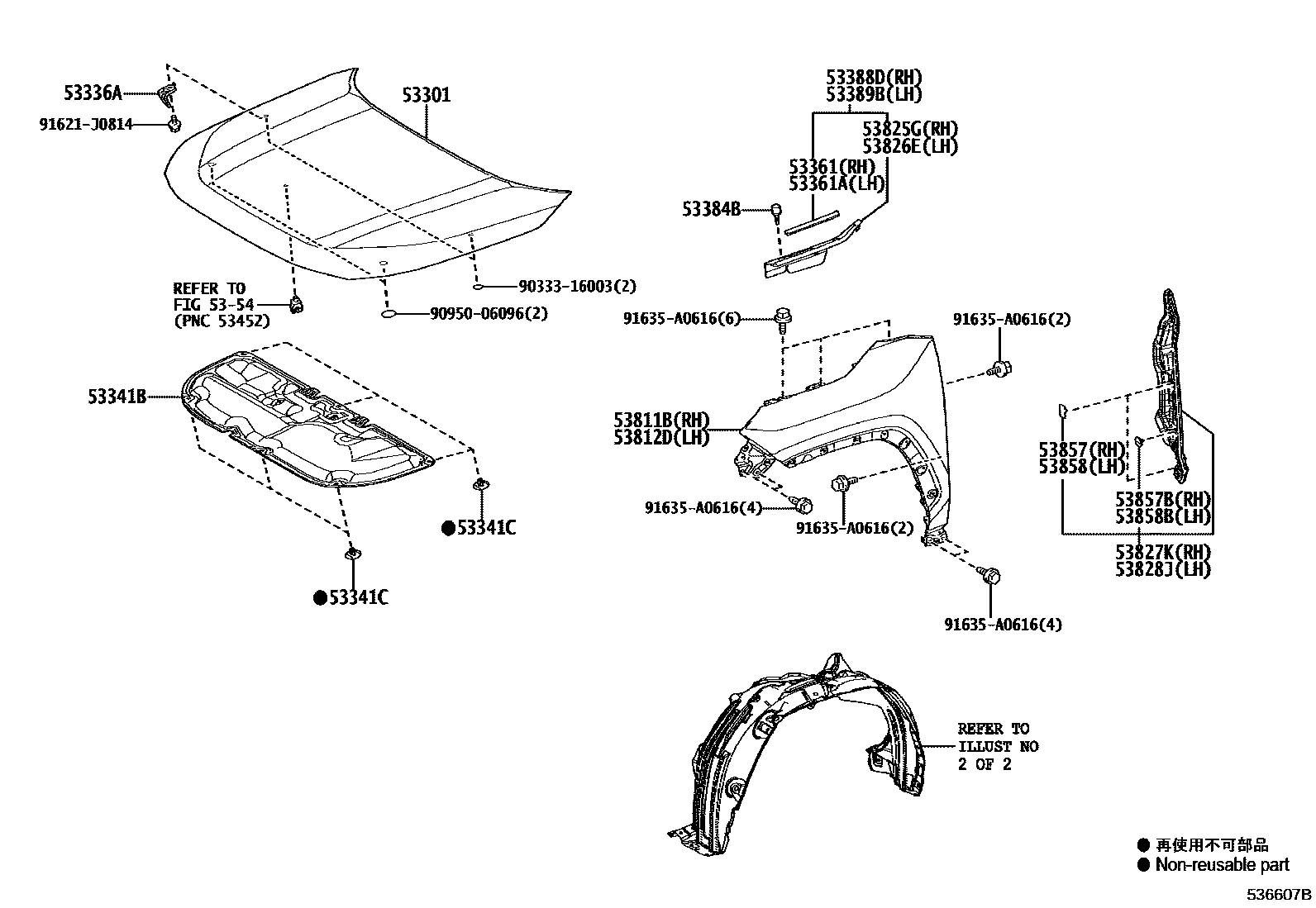

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER

53301HOOD SUB-ASSY

main53301-42150iAXAP54¥61,400202006-202310

53336ABRACKET, HOOD STAY

main53336-42010iAXAP54¥280202006-202310

53341BINSULATOR, HOOD

main53341-42100iAXAP54¥7,600202006-202310

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iAXAP54¥120202006-202310

53361WEATHERSTRIP, HOOD

main53361-42020iAXAP54¥210202006-202310

53361AWEATHERSTRIP, HOOD

main53361-42020iAXAP54¥210202006-202310

53384BCUSHION, HOOD, CENTER

main53384-22070iAXAP54¥210202006-202310

53388DSEAL, HOOD TO FRONT FENDER, RH

main53388-42040iAXAP54¥1,360202006-202310

53389BSEAL, HOOD TO FRONT FENDER, LH

main53389-42060iAXAP54¥1,360202006-202310

5354

53811BPANEL, FRONT FENDER, RH

main53811-42330iAXAP54¥38,800202006-202310

53812DPANEL, FRONT FENDER, LH

main53812-42360iAXAP54¥38,800202006-202310

53825GPROTECTOR, FRONT FENDER, UPPER RH

main53825-42050iAXAP54¥1,300202006-202310

53826EPROTECTOR, FRONT FENDER, UPPER LH

main53826-42030iAXAP54¥1,300202006-202310

53827KPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-42060iAXAP54¥2,060202006-202310

53828JPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-42080iAXAP54¥2,060202006-202310

53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-12010iAXAP54¥100202006-202310

53857BRETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-47011iAXAP54¥60202006-202310

53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-12010iAXAP54¥100202006-202310

53858BRETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-47011iAXAP54¥60202006-202310

9033316003

main90333-16003¥80

9095006096

main90950-06096¥100

91621J0814

main91621-J0814¥60

91635A0616

main91635-A0616¥60

24 parts on this diagram · 2 diagrams in section
