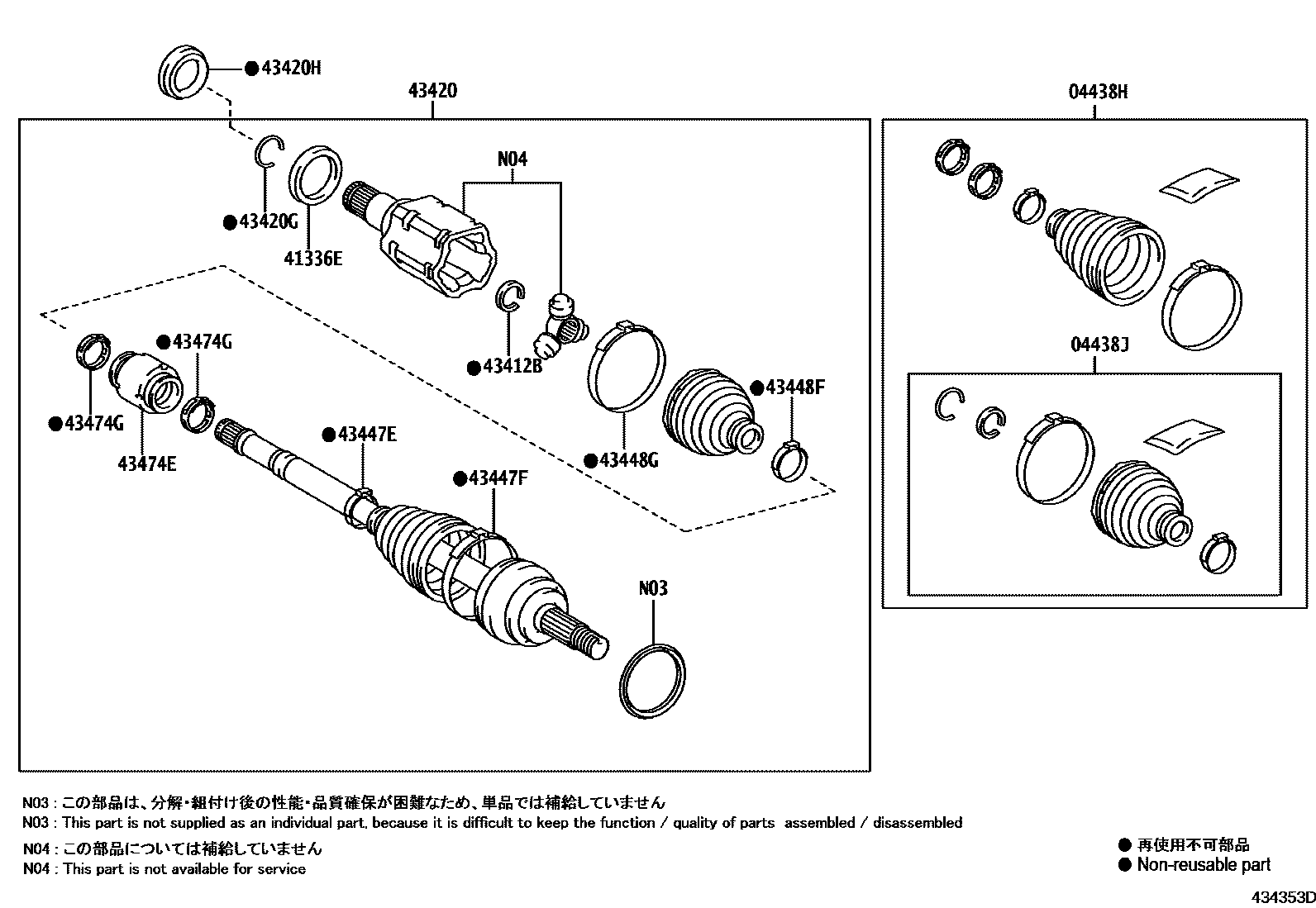

FRONT DRIVE SHAFT

0001 1LH 0002 1RH

04438HBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH

main04428-42170iAXAP54202006-202210

main04428-48170iAXAP54202211-202310

04438JBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH

main04437-42090iAXAP54202006-202210

main04438-48170iAXAP54202211-202310

41336ECOVER, FRONT DRIVE SHAFT DUST, LH

main41336-42030iAXAP54202006-202210

43412BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)

main43425-42040iAXAP54202006-202210

43420SHAFT ASSY, FRONT DRIVE, LH

main43420-42280iAXAP54202006-202210

main43420-42281iAXAP54202211-202310

43420GRING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH)

main43425-42060iAXAP54202006-202210

43420HOIL SEAL, FRONT DRIVE SHAFT, LH

main90311-50059iAXAP54202006-202210

43447ECLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)

main42345-42030iAXAP54202006-202210

main42345-48240iAXAP54202211-202310

43447FCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)

main42345-42140iAXAP54202006-202210

main42345-48280iAXAP54202211-202310

43448FCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)

main42345-42030iAXAP54202006-202210

main42345-48240iAXAP54202211-202310

43448GCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)

main42345-42020iAXAP54202006-202210

main42345-48270iAXAP54202211-202310

43474EDAMPER, FRONT DRIVE SHAFT, LH

main43474-42080iAXAP54202006-202210

43474GCLAMP (FOR FRONT DRIVE SHAFT DAMPER LH)

main42345-42130×2iAXAP54202006-202204

main42345-42250×2iAXAP54202205-202210

13 parts on this diagram · 2 diagrams in section
