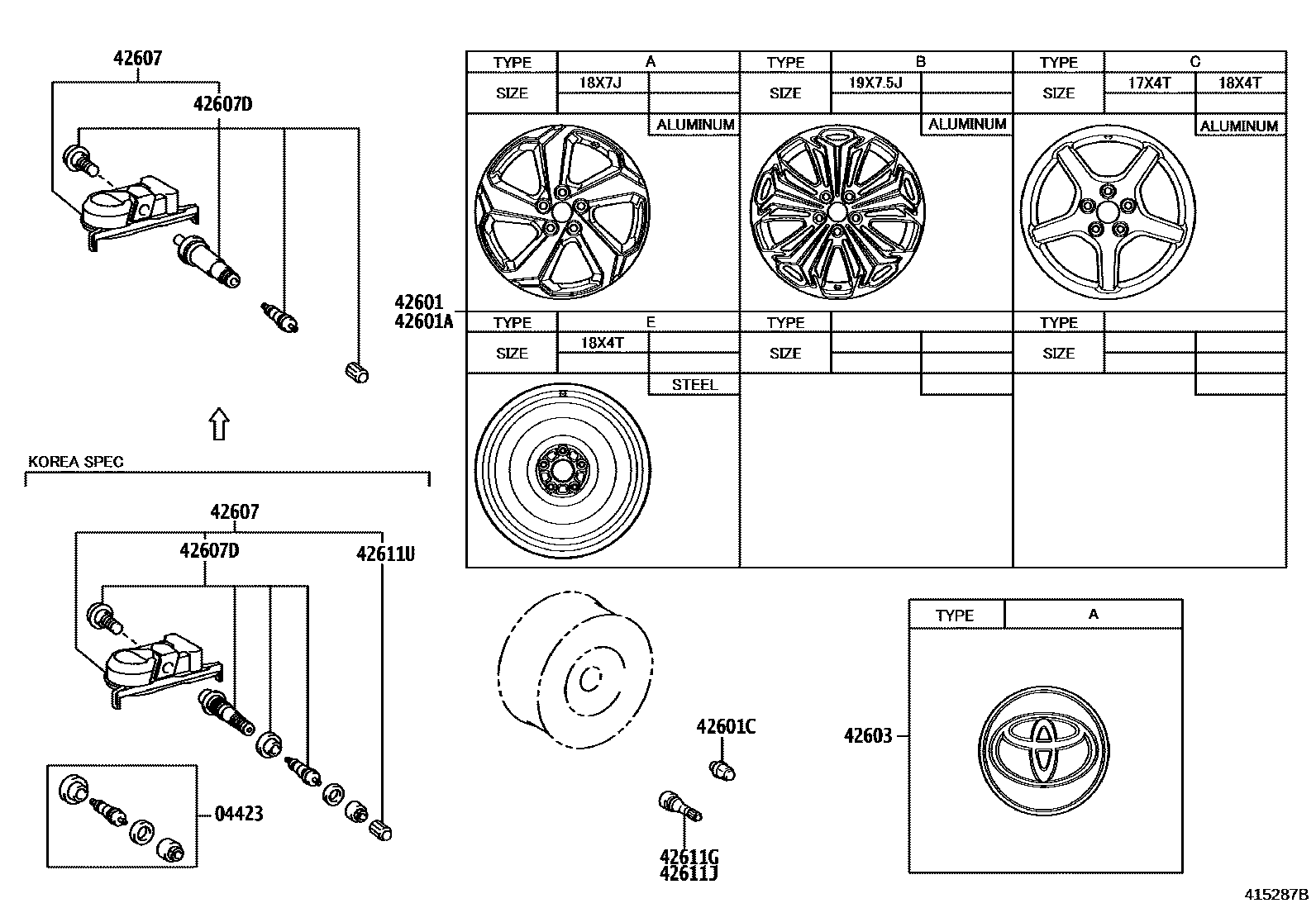

DISC WHEEL & WHEEL CAP

04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE

main04423-33060

42601WHEEL, DISC

main42611-42580iAXAP54..SE202006-202310

18X7J,#,TYPE A:REFER ILLUST.

main42611-42590iAXAP54..XSE202006-202310

19X7.5J,#,TYPE B:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

main42611-33E70iAXAP54..SE202006-202310

17X4T,TYPE C:REFER ILLUST.

main42611-42780iAXAP54..XSE202006-202310

18X4T,TYPE C:REFER ILLUST.

main4261B-42020iAXAP54202310

18X4T,TYPE E:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90942-01033iAXAP54202006-202310

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-42130iAXAP54202006-202310

*ALU,TYPE A:REFER ILLUST.

42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR

main42607-12010iAXAP54..USA202006-202310

42607DVALVE, TIRE PRESSURE MONITOR

main90942-05043iAXAP54..USA202006-202310

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009iAXAP54..CND202006-202310

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iAXAP54202006-202310

42611UCAP, TIRE VALVE

10 parts on this diagram · 1 diagram in section
