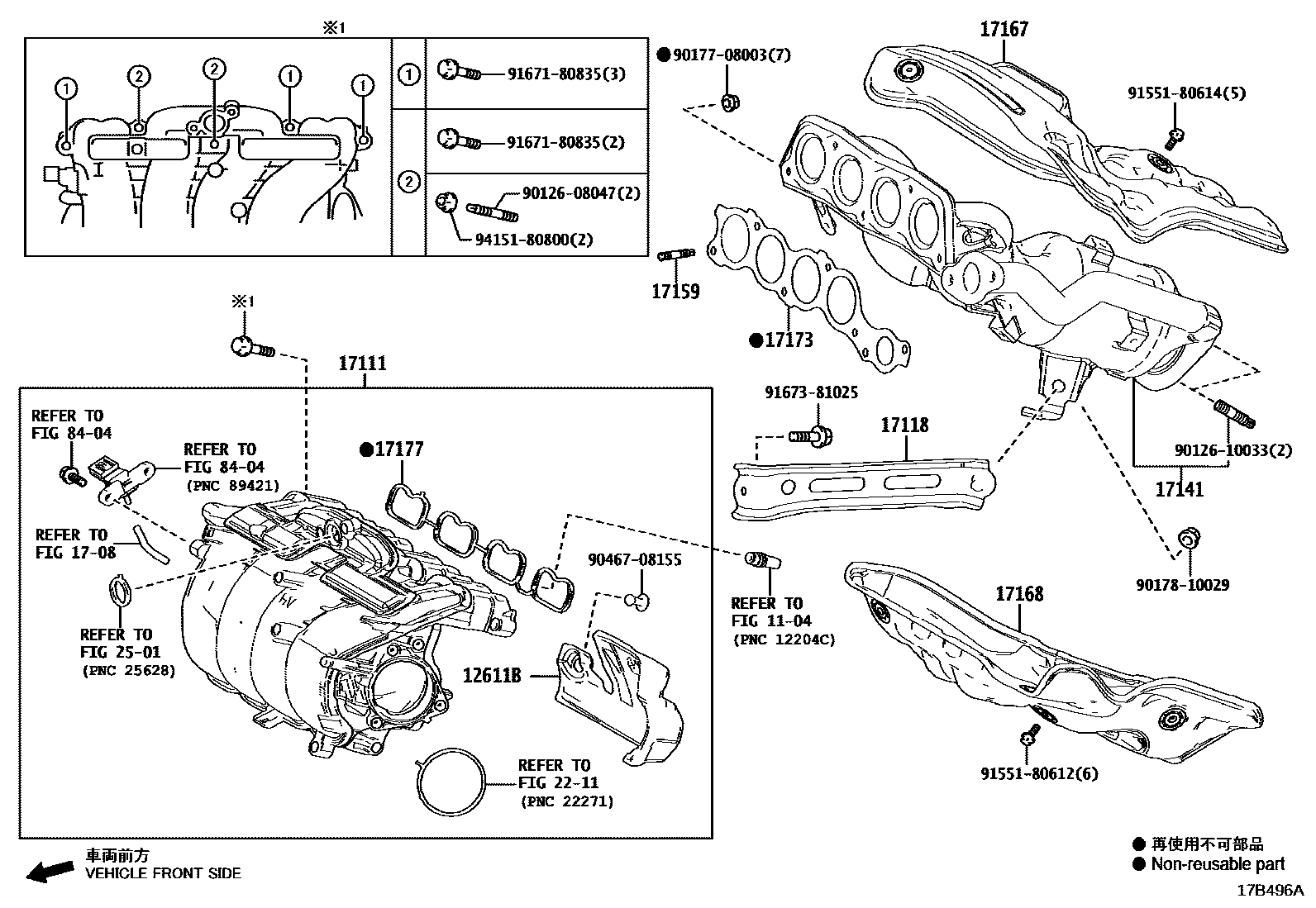

MANIFOLD

0001 1 0002 1

1104

12611BCOVER, ENGINE, NO.1

main12613-25020iA25AFXS..AXAP54¥1,700202006-202310

1708

17111MANIFOLD, INTAKE

main17120-25020iA25AFXS..AXAP54¥26,500202006-202310

17118STAY, MANIFOLD

main17118-25030iA25AFXS..AXAP54¥1,540202006-202310

17141MANIFOLD, EXHAUST

main17141-25150iA25AFXS..AXAP54¥132,000202006-202007

*114=TOYOTA/25150/Y

sub17141-25151¥110,000

sub17167-25040¥3,320

sub17168-25040¥3,050

main17141-25151iA25AFXS..AXAP54¥110,000202007-202301

*114=TOYOTA/25150/Y

sub17141-25161¥99,300

main17141-25161iA25AFXS..AXAP54¥99,300202209-202310

*114=TOYOTA/25160/Y

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90126-08052iA25AFXS..AXAP54¥80202006-202310

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-25010iA25AFXS..AXAP54¥3,650202006-202007

main17167-25040iA25AFXS..AXAP54¥3,320202007-202310

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-25010iA25AFXS..AXAP54¥3,360202006-202007

main17168-25040iA25AFXS..AXAP54¥3,050202007-202310

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-25020iA25AFXS..AXAP54¥1,060202006-202310

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17171-25010iA25AFXS..AXAP54¥820202006-202310

2211

2501

8404

9012608047

main90126-08047¥80

9012610033

main90126-10033¥440

9017708003

main90177-08003¥80

9017810029

main90178-10029¥100

9046708155

main90467-08155¥110

9155180612

main91551-80612¥60

9155180614

main91551-80614¥60

9167180835

main91671-80835¥100

9167381025

main91673-81025¥120

9415180800

main94151-80800¥80

24 parts on this diagram · 2 diagrams in section
