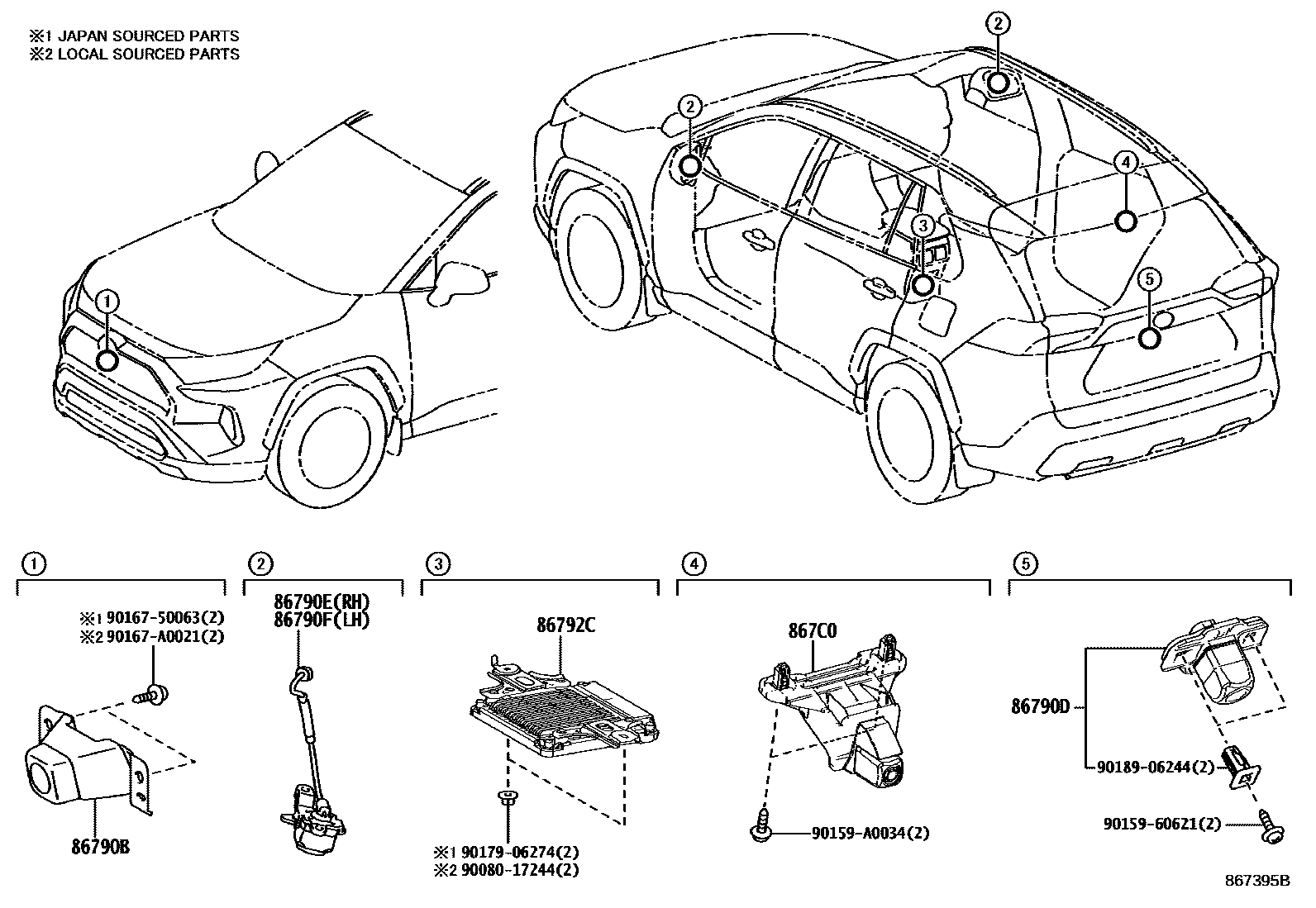

CAMERA & REAR MONITOR DISPLAY
86790BCAMERA ASSY, TELEVISION, FR
BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
AUDIO-JBL & 10.5INCH DISPLAY&CLEARANCE & BACK SONAR-WITH
AUDIO-JBL & 10.5INCH DISPLAY&CLEARANCE & BACK SONAR-WITH
AUDIO-JBL & 10.5INCH DISPLAY&CLEARANCE & BACK SONAR-WITH
BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
86790DCAMERA ASSY, TELEVISION, RR
BACK MONITOR-WITH(*BGM)
BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
AUDIO-JBL & 10.5INCH DISPLAY&CLEARANCE & BACK SONAR-WITH
AUDIO-JBL & 10.5INCH DISPLAY&CLEARANCE & BACK SONAR-WITH
AUDIO-JBL & 10.5INCH DISPLAY&CLEARANCE & BACK SONAR-WITH
86790ECAMERA ASSY, TELEVISION, SIDE RH
AUDIO-JBL & 10.5INCH DISPLAY&CLEARANCE & BACK SONAR-WITH
AUDIO-JBL & 10.5INCH DISPLAY&CLEARANCE & BACK SONAR-WITH
BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
AUDIO-JBL & 10.5INCH DISPLAY&CLEARANCE & BACK SONAR-WITH
BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
86790FCAMERA ASSY, TELEVISION, SIDE LH
AUDIO-JBL & 10.5INCH DISPLAY&CLEARANCE & BACK SONAR-WITH
AUDIO-JBL & 10.5INCH DISPLAY&CLEARANCE & BACK SONAR-WITH
BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
AUDIO-JBL & 10.5INCH DISPLAY&CLEARANCE & BACK SONAR-WITH
BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
86792CCOMPUTER, PARKING ASSIST
AUDIO-JBL & 8INCH DISPLAY & AVN&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
AUDIO-JBL & 9INCH DISPLAY&CLEARANCE & BACK SONAR-WITH&BACK MONITOR-WITH(PANORAMICVIEW MONITOR)&BLIND SPOT MONITOR-WITH & *RCTB
AUDIO-JBL & 8INCH DISPLAY & AVN&CLEARANCE & BACK SONAR-WITH&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&BLIND SPOT MONITOR-WITH & *RCTB
AUDIO-JBL & 9INCH DISPLAY & AVN&CLEARANCE & BACK SONAR-WITH&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&BLIND SPOT MONITOR-WITH & *RCTB
BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
TRD OFFROAD PACKAGE&CLEARANCE & BACK SONAR-WITH&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&BLIND SPOT MONITOR-WITH & *RCTB
BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
TRD OFFROAD PACKAGE&CLEARANCE & BACK SONAR-WITH&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&BLIND SPOT MONITOR-WITH & *RCTB
867C0CAMERA ASSY, INNER MIRROR
INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR & HOME LINK
INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
9008017244
main90080-17244
9015960621
main90159-60621
90159A0034
main90159-A0034
9016750063
main90167-50063
90167A0021
main90167-A0021
9017906274
main90179-06274
9018906244
main90189-06244
13 parts on this diagram · 2 diagrams in section
