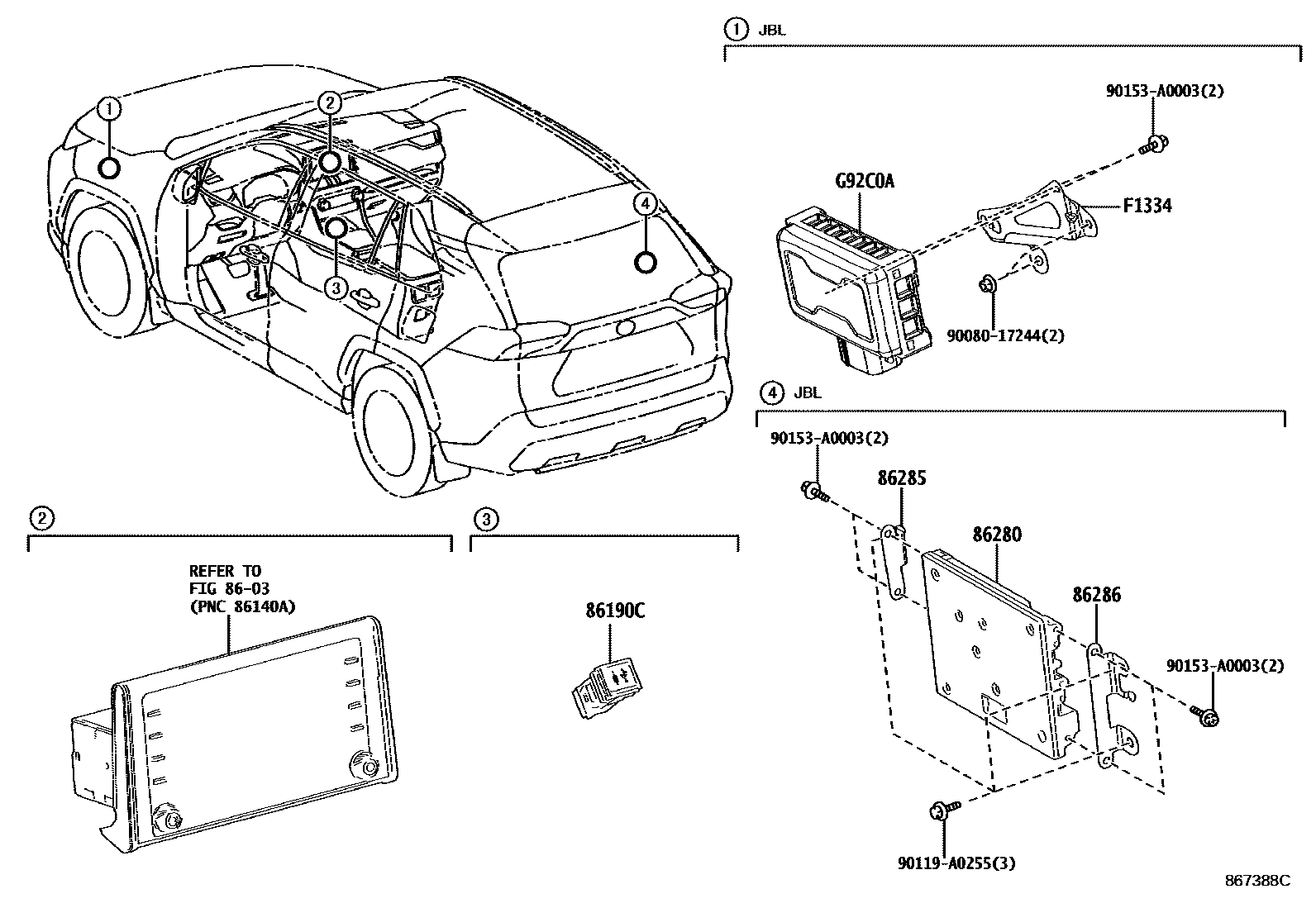

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1AMPLIFIER 0002 1CONDENSER

8603

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-12040iAXAA5#,AXAH54201812-201910

main86190-34010iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54202211

main86190-42030iAXAA5#,AXAH54,AXAL54201910-202008

sub86190-42031

main86190-42031iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54202009-202211

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-0R060iAXAA5#,AXAH54,AXAL54..M..USA201812-202112

AUDIO-JBL & 8INCH DISPLAY & AVN

main86280-0R060iAXAA5#,AXAH54,AXAL54..M..USA201812-202112

AUDIO-JBL & 8INCH DISPLAY

main86280-0R060iAXAA5#,AXAH54,AXAL54..G202112-202211

AUDIO-6PEAKER & 8INCH DISPLAY

main86280-0R060iAXAA5#,AXAH54,AXAL54..G202112-202211

AUDIO-JBL & 9INCH DISPLAY

main86280-0R060iAXAA5#,AXAH54,AXAL54..G202112-202211

AUDIO-JBL & 9INCH DISPLAY & AVN

main86280-0R090iAXAA5#,AXAH54,AXAL54..G202211

AUDIO-JBL & 10.5INCH DISPLAY

main86280-0R090iAXAA54..V..CND202211

TRD OFFROAD PACKAGE

86285BRACKET, AMPLIFIER, NO.1

main86285-0R030iAXAH54..P..CND202211

AUDIO-JBL & 10.5INCH DISPLAY

main86285-0R030iAXAA54..V..USA201812-202112

AUDIO-JBL & 8INCH DISPLAY

main86285-0R030iAXAA5#..(G,V)..USA;AXAH54,AXAL54..(G,M)..USA201812-202112

AUDIO-JBL & 8INCH DISPLAY & AVN

main86285-0R030iAXAA5#,AXAH54,AXAL54..G202112-202211

AUDIO-6PEAKER & 8INCH DISPLAY

main86285-0R030iAXAA5#,AXAH54,AXAL54..G202112-202211

AUDIO-JBL & 9INCH DISPLAY

main86285-0R030iAXAA5#,AXAH54,AXAL54..G202112-202211

AUDIO-JBL & 9INCH DISPLAY & AVN

main86285-0R030iAXAA5#,AXAH54,AXAL54..G202211

TRD OFFROAD PACKAGE

86286BRACKET, AMPLIFIER, NO.2

main86286-0R030iAXAA54..V..USA201812-202112

AUDIO-JBL & 8INCH DISPLAY

main86286-0R030iAXAA5#..(G,V)..USA;AXAH54,AXAL54..(G,M)..USA201812-202112

AUDIO-JBL & 8INCH DISPLAY & AVN

main86286-0R030iAXAA5#,AXAH54,AXAL54..G202112-202211

AUDIO-6PEAKER & 8INCH DISPLAY

main86286-0R030iAXAA5#,AXAH54,AXAL54..G202112-202211

AUDIO-JBL & 9INCH DISPLAY

main86286-0R030iAXAA5#,AXAH54,AXAL54..G202112-202211

AUDIO-JBL & 9INCH DISPLAY & AVN

main86286-0R030iAXAA5#,AXAH54,AXAL54..G202211

TRD OFFROAD PACKAGE

main86286-0R030iAXAA5#,AXAH54,AXAL54..G202211

AUDIO-JBL & 10.5INCH DISPLAY

F1334BRACKET, CONVERTER CONTROL, NO.1

mainF133442020iAXAA5#..M..USA201910-202112

AUDIO-JBL & 8INCH DISPLAY

mainF133442020iAXAA5#..M..CND202009-202112

AUDIO-JBL & 8INCH DISPLAY & AVN

mainF133442020iAXAA5#..M..USA202112-202211

AUDIO-JBL & 9INCH DISPLAY

G92C0ACONVERTER ASSY, ECO-RUN VEHICLE

mainG92C030020iAXAA5#..M..USA201910-202112

AUDIO-JBL & 8INCH DISPLAY

mainG92C030020iAXAA5#..M..CND202009-202112

AUDIO-JBL & 8INCH DISPLAY & AVN

mainG92C030020iAXAA5#..M..USA202112-202211

AUDIO-JBL & 9INCH DISPLAY

9008017244

main90080-17244

90119A0255

main90119-A0255

90153A0003

main90153-A0003

10 parts on this diagram · 2 diagrams in section
