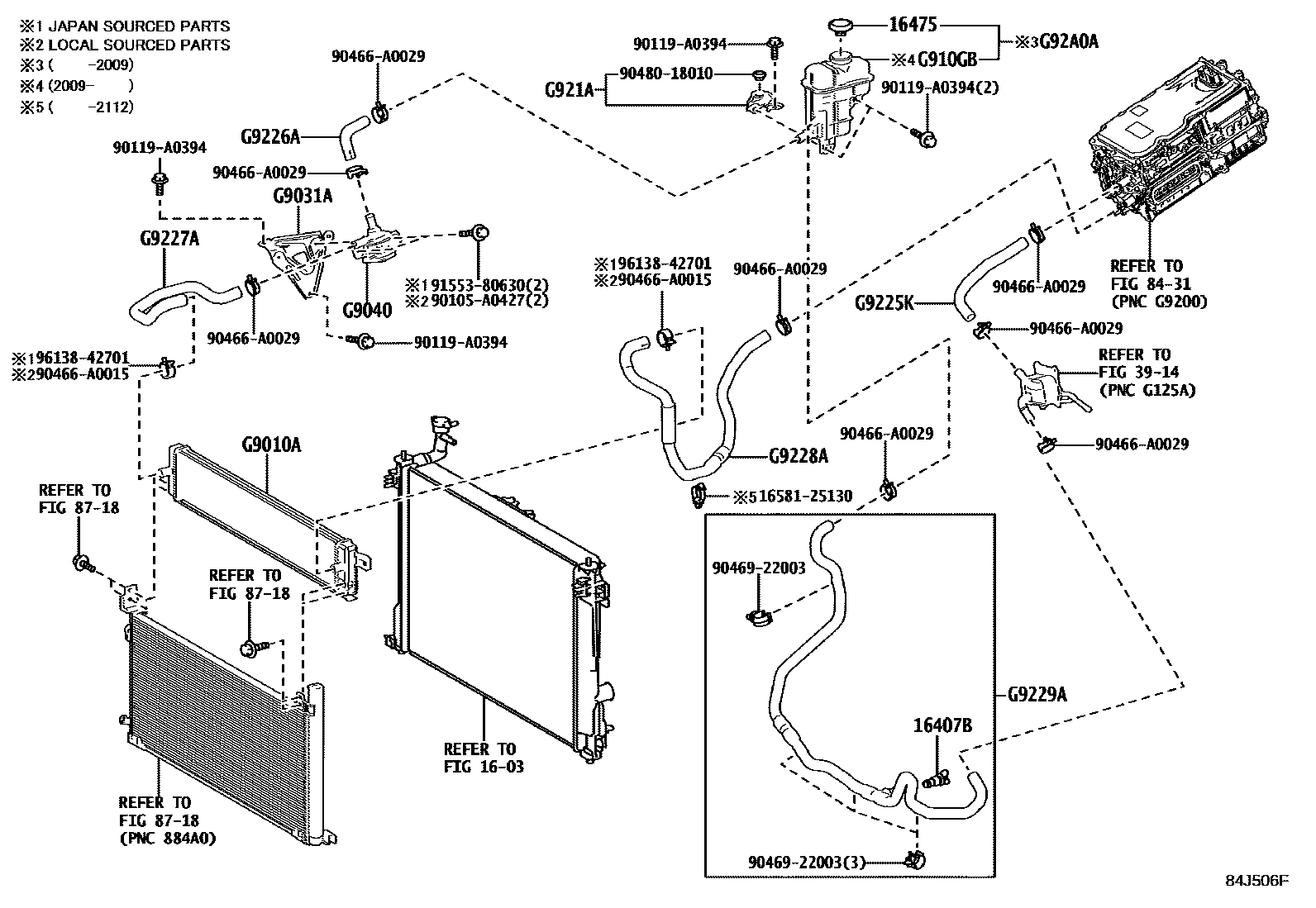

INVERTER COOLING

0001 1 0002 1

1603

16407BCOCK SUB-ASSY, RADIATOR DRAIN

main16407-64010iA25AFXS..AXAH54,AXAL54201903-202112

16475CAP, RESERVE TANK

main16475-28140iA25AFXS..AXAH54,AXAL54201903-202211

3914

8431

8718

G9010ARADIATOR ASSY

mainG901042030iAXAH54,AXAL54201903-202112

G9031ABRACKET SUB-ASSY, HV WATER PUMP

mainG91410E020iAXAH54,AXAL54202106-202112

mainG914142010iAXAH54,AXAL54201903-202106

mainG9141F6010iAXAH54,AXAL54202112-202211

G9040INVERTER WATER PUMP ASSY(W/MOTOR)

mainG90400E060iAXAH54,AXAL54202311-202404

(L),MARK G9040-0E060

subG9040-0R040

mainG90400R040iAXAH54,AXAL54202404-202411

MARK=G9040-0R040,(L),MARK G9040-0E060

mainG90400R040iAXAH54,AXAL54202411

mainG904042010iAXAH54,AXAL54201903-202112

mainG904048050iAXAH54,AXAL54202311-202411

(J),MARK G9040-48050

mainG904048050iAXAH54,AXAL54202112-202311

G910GBTANK SUB-ASSY, INVERTER RESERVE W/O CAP

mainG910G0R010iAXAH54,AXAL54202009-202211

G921ABRACKET, INVERTER RESERVE TANK, NO.1

mainG91H20R010iAXAH54,AXAL54201903-202211

G9225KHOSE, INVERTER COOLING, NO.1

mainG92250R020iAXAH54,AXAL54201903-202211

G9226AHOSE, INVERTER COOLING, NO.2

mainG92260R020iAXAH54,AXAL54201903-202112

mainG9226F6010iAXAH54,AXAL54202112-202211

G9227AHOSE, INVERTER COOLING, NO.3

mainG92270R020iAXAH54,AXAL54201903-202112

mainG9227F6010iAXAH54,AXAL54202112-202211

G9228AHOSE, INVERTER COOLING, NO.4

mainG92280R020iAXAH54,AXAL54201903-202112

mainG92280R060iAXAH54,AXAL54202112-202211

G9229AHOSE, INVERTER COOLING, NO.5

mainG92290R020iAXAH54,AXAL54201903-202112

mainG92290R070iAXAH54,AXAL54202112-202211

G92A0ATANK ASSY, INVERTER RESERVE

mainG91H00R020iAXAH54,AXAL54201903-202009

1658125130CLAMP, HOSE(FOR WATER HOSE)

main16581-25130

90105A0427

main90105-A0427

90119A0394

main90119-A0394

90466A0015

main90466-A0015

90466A0029

main90466-A0029

9046922003

main90469-22003

9048018010

main90480-18010

9155380630

main91553-80630

9613842701

main96138-42701

26 parts on this diagram · 2 diagrams in section
