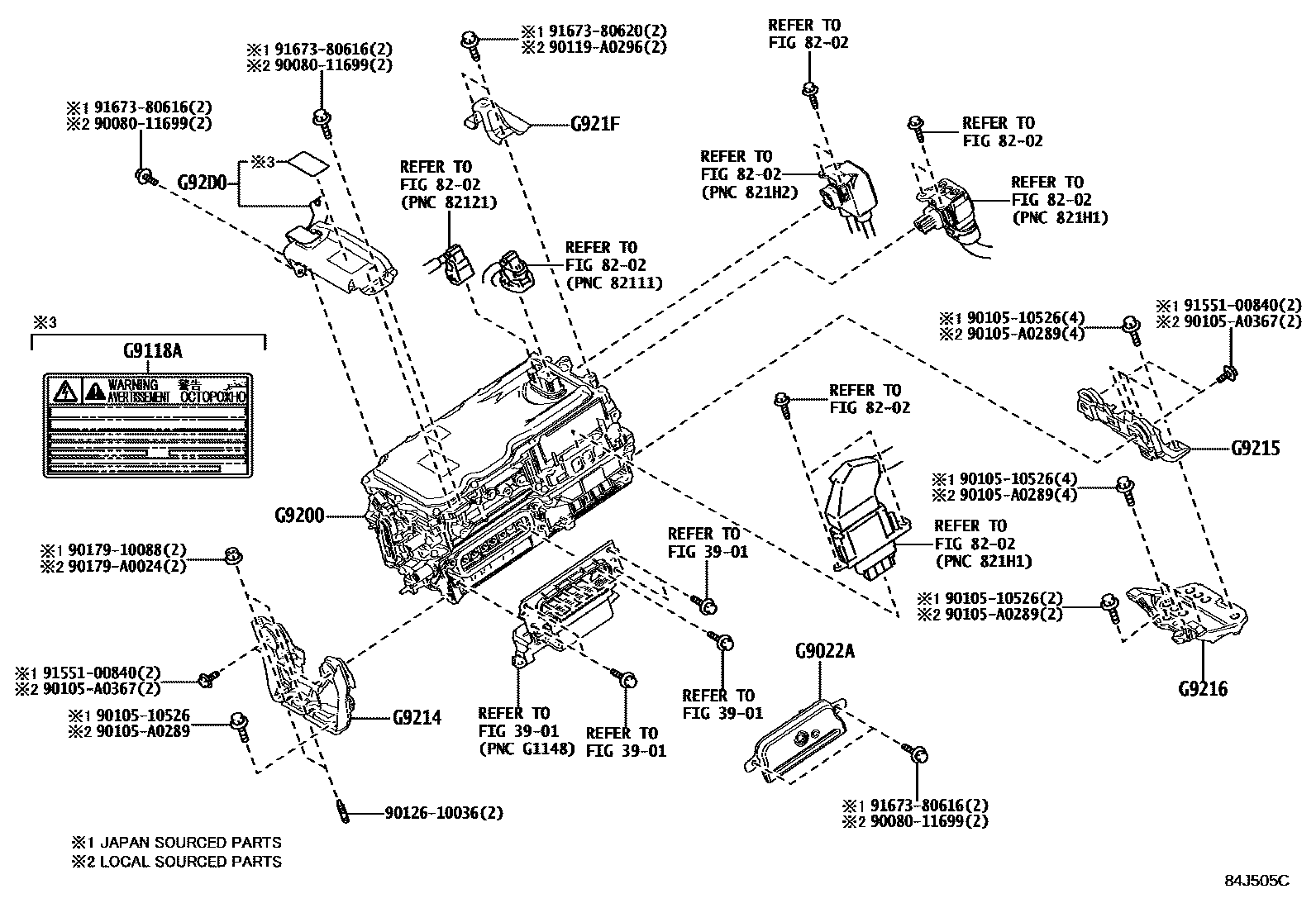

HEV INVERTER

0001 1 0002 1 0003 1HV CONVERTER KIT

3901

8202

G9022ACOVER SUB-ASSY, INVERTER, UPPER

mainG902247050iAXAH54,AXAL54201903-202211

G9118ALABEL, HV MOTOR CONTROL INVERTER CAUTION

mainG911876010iAXAH54201903-202006

G9200INVERTER ASSY, W/CONVERTER

mainG92A042070iAXAH54,AXAL54201903-202106

subG92A0-42071

mainG92A042071iAXAH54,AXAL54202107-202206

subG92A0-42072

mainG92A042072iAXAH54,AXAL54202207-202211

G9214BRACKET, INVERTER, NO.1

mainG921433040iAXAH54,AXAL54201903-202211

G9215BRACKET, INVERTER, NO.2

mainG921542010iAXAH54,AXAL54201903-202211

G9216BRACKET, INVERTER, NO.3

mainG921642010iAXAH54,AXAL54201903-202211

G921FPROTECTOR, INVERTER, NO.2

mainG921F42010iAXAH54201903-202006

G92D0PROTECTOR ASSY, HYBRID INVERTER

mainG92D042010iAXAH54201903-202006

9008011699

main90080-11699

9010510526

main90105-10526

90105A0289

main90105-A0289

90105A0367

main90105-A0367

90119A0296

main90119-A0296

9012610036

main90126-10036

9017910088

main90179-10088

90179A0024

main90179-A0024

9155100840

main91551-00840

9167380616

main91673-80616

9167380620

main91673-80620

21 parts on this diagram · 3 diagrams in section
