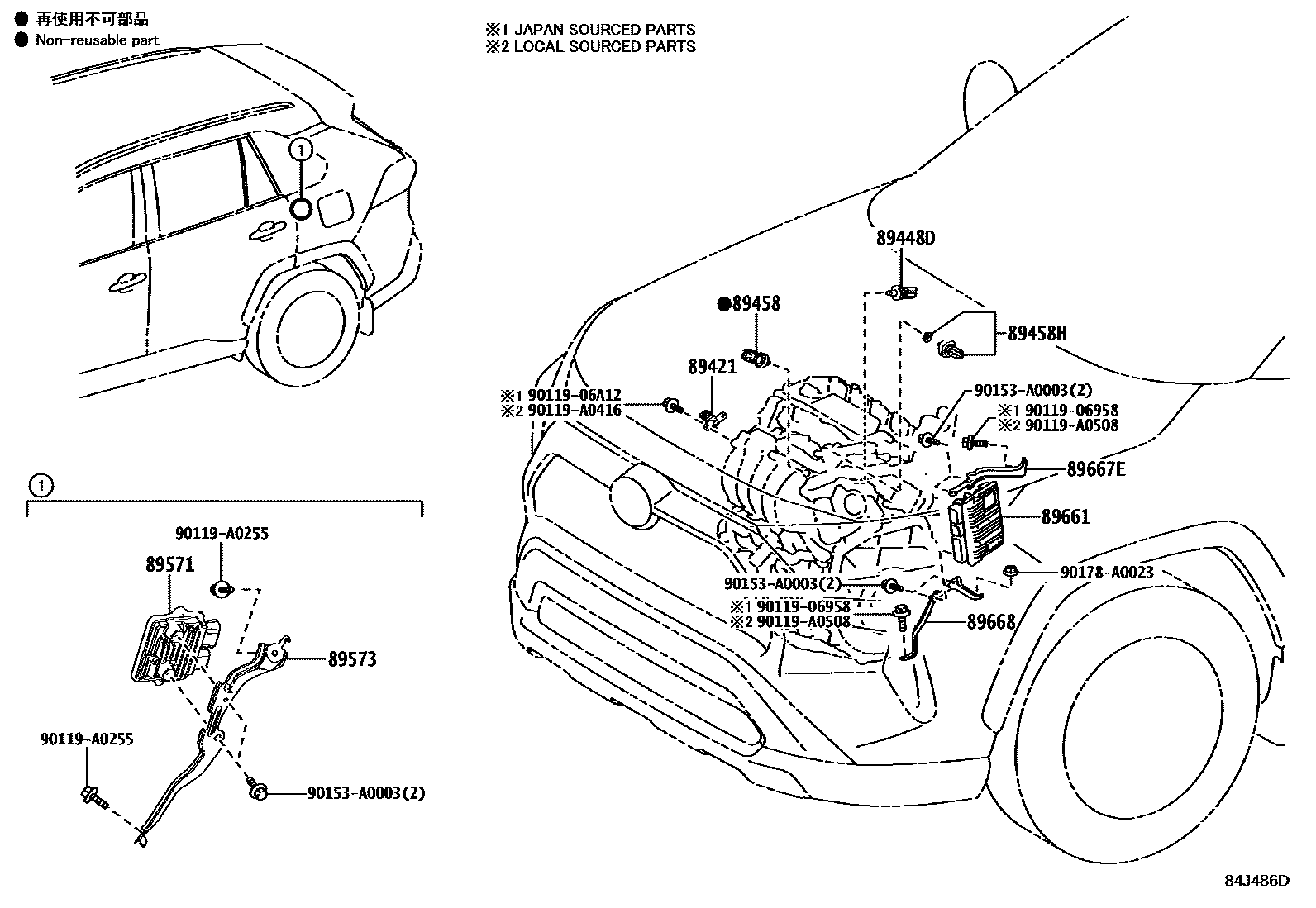

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-06020iAXAA52..M..CND201812-202211

(L)

main89421-33010iAXAA5#,AXAH54,AXAL54201812-202211

(J)

89448DSENSOR, OIL PRESSURE & TEMPERATURE

main89448-06010iAXAA5#,AXAH54,AXAL54201812-202211

(L)

main89448-33010iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54201812-202211

(J)

89458SENSOR, FUEL PRESSURE

main89458-06010iAXAA5#,AXAH54,AXAL54201812-202009

(L)

main89458-33030iAXAA5#,AXAH54,AXAL54201812-202009

(J)

89458HSENSOR, FUEL PRESSURE, NO.2

main89458-06021iAXAA5#,AXAH54,AXAL54201812-202306

(L)

main89458-06022iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54202307

(L)

main89458-33041iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54201812-202306

(J)

main89458-33042iAXAA52..M..CND202307

(J)

89571COMPUTER, FUEL PUMP CONTROL

main89571-0R010iAXAA52..M..CND201901-202211

(L)

main89571-42010iAXAA5#201812-201901

main89571-42010iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54201901-202211

(J)

89573BRACKET, FUEL PUMP CONTROL COMPUTER

main89573-0R010iAXAA52..M..CND201812-202211

89661COMPUTER, ENGINE CONTROL

main89661-0R410iAXAA54..G,V201812-201910

DENSO

main89661-0R420iAXAH54..G..USA202010-202112

MEXICO SPEC

main89661-0R430iAXAA52..G201812-201910

DENSO

main89661-0R690iAXAH54201903-201910

DENSO

sub89661-0R691

main89661-0R700iAXAA52..M,X201812-201910

DENSO

main89661-0R730iAXAA54..M..USA;AXAA54..(M,X)..CND201812-201910

DENSO

main89661-0R820iAXAA54..X..USA201812-201910

DENSO

main89661-0R890iAXAH54202009-202012

DENSO

main89661-0R891iAXAH54202012-202112

DENSO

sub89661-0R892

main89661-0RA00iAXAL54202007-202012

DENSO

sub89661-0RA01

main89661-0RA01iAXAL54202012-202112

DENSO

main89661-0RA10iAXAA52..G202009-202112

DENSO

main89661-0RA20iAXAA54..(M,X)..CND201910-201912

DENSO

sub89661-0RA21

main89661-0RA21iAXAA54..(M,X)..CND202001-202009

DENSO

main89661-0RA30iAXAA54..G,V201910-201912

DENSO

sub89661-0RA31

main89661-0RA31iAXAA54..G,V202001-202009

DENSO

main89661-0RA40iAXAA54..(M,X)..USA201910-201912

DENSO

sub89661-0RA41

main89661-0RA41iAXAA54..(M,X)..USA202001-202009

DENSO

main89661-0RA50iAXAA52..X;AXAA52..M..CND201910-201912

DENSO

sub89661-0RA51

main89661-0RA51iAXAA52..X;AXAA52..M..CND202001-202009

DENSO

main89661-0RA60iAXAA52..G201910-201912

DENSO

sub89661-0RA61

main89661-0RA61iAXAA52..G202001-202009

DENSO

main89661-0RA70iAXAA52..M..USA201910-201912

DENSO

sub89661-0RA71

main89661-0RA71iAXAA52..M..USA202001-202009

DENSO

main89661-0RA80iAXAH54201910-202009

DENSO

sub89661-0RA81

main89661-0RA90iAXAA52..X202009-202112

DENSO

main89661-0RB00iAXAA52..M202009-202112

DENSO

main89661-0RB10iAXAA54..M,X202009-202112

DENSO

main89661-0RB20iAXAA54..G,V202009-202112

DENSO

main89661-0RB50iAXAA52..(M,X)..USA202010-202112

DENSO,MEXICO SPEC

main89661-0RB60iAXAA54..(G,V)..USA202010-202112

DENSO,MEXICO SPEC

main89661-0RB80iAXAH54202112-202205

DENSO

sub89661-0RB81

main89661-0RB81iAXAH54202206-202211

DENSO

main89661-0RB90iAXAL54202112-202205

DENSO

sub89661-0RB91

main89661-0RB91iAXAL54202206-202211

DENSO

main89661-0RC00iAXAH54..G..USA202112-202211

DENSO,MEXICO SPEC

main89661-0RC10iAXAA52..G202112-202206

DENSO

sub89661-0RC11

main89661-0RC11iAXAA52..G202207-202310

DENSO

main89661-0RC20iAXAA54..M,X202112-202206

DENSO

sub89661-0RC21

main89661-0RC21iAXAA54..M,X202207-202211

DENSO

main89661-0RC30iAXAA52..X202112-202206

DENSO

sub89661-0RC31

main89661-0RC31iAXAA52..X202207-202310

DENSO

main89661-0RC40iAXAA54..G,V202112-202206

DENSO

sub89661-0RC41

main89661-0RC41iAXAA54..G,V202207-202211

DENSO

main89661-0RC50iAXAA52..M202112-202206

DENSO

sub89661-0RC51

main89661-0RC51iAXAA52..M..USA202207-202310

DENSO

main89661-0RC60iAXAA52..(M,X)..USA202112-202211

DENSO,MEXICO SPEC

main89661-0RC70iAXAA54..(G,V)..USA202112-202211

DENSO,MEXICO SPEC

main89661-0RC80iAXAA52..G,X;AXAA52..M..USA202411

DENSO

main89661-0RF30iAXAH54202211-202411

DENSO

main89661-0RF40iAXAH54..G..USA202211-202411

DENSO,MEXICO SPEC

main89661-0RF50iAXAL54202211-202411

DENSO

main89661-0RF80iAXAA54..M,X202211-202310

DENSO

main89661-0RG00iAXAA54..G,V202211-202310

DENSO

main89661-0RG20iAXAA52..(M,X)..USA202211-202411

DENSO,MEXICO SPEC

main89661-0RG30iAXAA54..(G,V)..USA202211-202411

DENSO,MEXICO SPEC

main89661-0RJ20iAXAA54..M,X202310-202411

main89661-0RJ30iAXAA52..G,X;AXAA52..M..USA202310-202411

main89661-0RJ50iAXAA54..G,V202310-202411

main89661-0RM90iAXAH54202411

DENSO

main89661-0RN00iAXAL54202411

DENSO

main89661-0RN10iAXAH54..G..USA202411

DENSO,MEXICO SPEC

main89661-0RN20iAXAA54..M,X202411

DENSO

main89661-0RN30iAXAA54..G,V202411

DENSO

main89661-0RN40iAXAA52..(M,X)..USA202411

DENSO,MEXICO SPEC

main89661-0RN50iAXAA54..(G,V)..USA202411

DENSO,MEXICO SPEC

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-06240iAXAA5#202001-202103

(L)

sub89667-33190

main89667-06240iAXAA5#201812-202001

sub89667-33190

main89667-0R030iAXAH54,AXAL54201903-202405

main89667-0R031iAXAH54,AXAL54202406

main89667-33190iAXAA52..M..CND202103-202211

main89667-33190iAXAA5#202001-202211

(J)

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-0R030iAXAA52..M..CND201812-202211

main89668-0R040iAXAH54,AXAL54201903-202211

9011906958

main90119-06958

9011906A12

main90119-06A12

90119A0255

main90119-A0255

90119A0416

main90119-A0416

90119A0508

main90119-A0508

90153A0003

main90153-A0003

90178A0023

main90178-A0023

16 parts on this diagram · 2 diagrams in section
