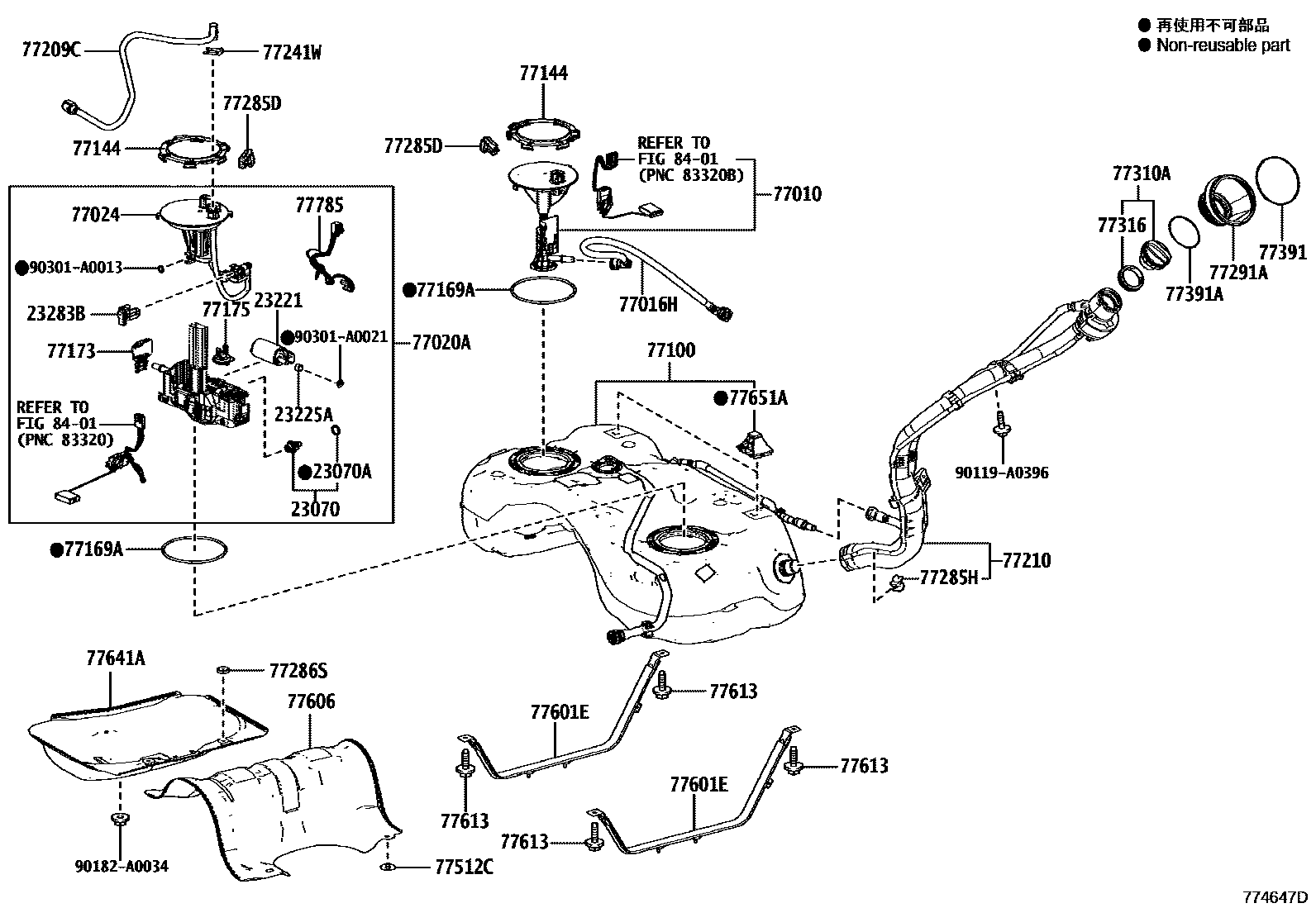

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TUBE 0003 1FUEL LID OPENER 0004 1FUEL TANK 0005 1FUEL TANK 0006 1FUEL TUBE 0007 1FUEL TUBE 0008 1FUEL LID OPENER

23070VALVE ASSY, FUEL MAIN

main23070-25020iA25AFKS..AXAA52..M..CND202009

23070ARING, O, NO.1(FOR FUEL MAIN VALVE)

main90301-15024iA25AFKS..AXAA52..G,X;A25AFKS..AXAA52..M..USA;A25#..AXAA54,AXAH54,AXAL54202211

23221PUMP, FUEL

main23221-25030iA25AFKS..AXAA52..M..CND202009

23225ASPACER, FUEL PUMP

main23225-31020iA25#..AXAA5#,AXAH54,AXAL54202003-202009

(J)

main23225-F0010iA25AFXS..AXAH54,AXAL54202211

(L)

23283BHOLDER, FUEL PRESSURE REGULATOR

main23283-F0010iA25AFKS..AXAA52..G,X;A25AFKS..AXAA52..M..USA;A25#..AXAA54,AXAH54,AXAL54202009-202211

77010TUBE ASSY, FUEL TANK VENT

main77010-0R010iAXAA5#201812-202009

77016HTUBE SUB-ASSY, FUEL RETURN VENT

main77016-0R020iAXAA54;AXAA52..G,X;AXAA52..M..USA202211

77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE

main77020-0R050iAXAA5#201812-202009

main77020-0R051iAXAA54;AXAA52..G,X;AXAA52..M..USA202108-202211

main77020-0R060iAXAH54,AXAL54202009-202010

main77020-0R061iAXAH54,AXAL54202211

77024TUBE SUB-ASSY, FUEL MAIN & RETURN, FRONT

main77024-0R040iAXAA5#201812-202009

77100TANK ASSY, FUEL

main77001-0R090iAXAA52..M..CND202009

main77001-0R100iAXAH54,AXAL54201903-202009

main77001-0R101iAXAH54,AXAL54202211

77144RETAINER, FUEL PUMP GAUGE

main77144-06040×2iAXAA5#201812-202009

(L)

main77144-30030×2iAXAH54,AXAL54202211

(J)

77169AGASKET, FUEL SUCTION TUBE SET

main77169-0R030iAXAH54,AXAL54202009-202211

main77169-F4050iAXAH54,AXAL54202308

77173BRACKET, FUEL GAGE

main77173-0E010iAXAA52..M..CND202009

main77173-0E020iAXAH54,AXAL54202009-202202

main77173-0E021iAXAH54,AXAL54202203-202211

(L)

main77173-12020iAXAH54,AXAL54202211

(J)

77175SUPPORT, FUEL SUCTION, NO.2

main77175-0R010iAXAH54,AXAL54202211

(L)

main77175-12030iAXAH54,AXAL54202205-202211

(J)

77209CTUBE SUB-ASSY, FUEL TANK MAIN

main77209-0R060iAXAA5#201812-202009

main77209-0R070iAXAH54,AXAL54202211

77210PIPE ASSY, FUEL TANK FILLER

main77210-0R060iAXAA54;AXAA52..G,X;AXAA52..M..USA202211

main77210-0R070iAXAH54,AXAL54202211

77241WCLIP, TUBE JOINT

main77241-02010×2iAXAH54,AXAL54202009-202211

77285DCLAMP, FUEL TUBE, NO.1

main77285-06240iAXAH54,AXAL54202009-202211

77285HCLAMP, FUEL TUBE, NO.1

main77285-0R100iAXAA5#,AXAH54,AXAL54201812-202009

77286SCUSHION, FUEL TANK PROTECTOR

main77286-12110×3iAXAA5#201812-202009

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-0R050iAXAA5#,AXAH54,AXAL54201812-202009

77310ACAP ASSY, FUEL TANK

main77300-06090iAXAH54,AXAL54202103-202211

main77300-07040iAXAA54;AXAA52..G,X;AXAA52..M..USA202009-202211

main77300-53040iAXAH54,AXAL54202009-202102

77316GASKET, FUEL TANK CAP

main77316-06090iAXAA54;AXAA52..G,X;AXAA52..M..USA;AXAH54,AXAL54..P,S202009-202211

main77316-75020iAXAH54,AXAL54202009-202103

77391RING, FUEL INLET BOX

main77391-42010iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54202009-202211

77391ARING, FUEL INLET BOX

main77391-12020iAXAA5#,AXAH54,AXAL54201812-202009

77512CBRACKET, FUEL TANK

main77512-06060×4iAXAA54;AXAA52..G,X;AXAA52..M..USA202009-202211

77601EBAND SUB-ASSY, FUEL TANK

main77601-0R040×2iAXAA5#201812-202009

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-0R010iAXAA52..M..CND202009

main77606-0R020iAXAH54,AXAL54202211

77613BOLT, FUEL TANK BAND SET

main90119-10967×2iAXAH54,AXAL54201903-202009

NO.1:REFER ILLUST.

main90119-10992×2iAXAH54,AXAL54202206-202211

NO.1:REFER ILLUST.

main90119-10A05×4iAXAA5#201812-202009

main90119-A0509×4iAXAH54,AXAL54202009-202211

NO.1:REFER ILLUST.

77641APROTECTOR, FUEL TANK, NO.1

main77641-0R070iAXAA5#201812-202009

77651ACUSHION, FUEL TANK, NO.1

main77651-06060×2iAXAA54;AXAA52..G,X;AXAA52..M..USA202211

77785HARNESS, FUEL PUMP

main77785-0R040iAXAH54,AXAL54202211

(L)

main77785-42070iAXAH54,AXAL54202211

(J)

8401

90119A0396

main90119-A0396

90182A0034

main90182-A0034

90301A0013

main90301-A0013

90301A0021

main90301-A0021

37 parts on this diagram · 8 diagrams in section
