SEAT BELT
73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
LT.GRAY,TRIM2#,4#
LT.GRAY,TRIM1#,2#,4#
BLACK,TRIM2#
73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
LT.GRAY,TRIM1#,2#,4#
LT.GRAY,TRIM2#,4#
BLACK,TRIM2#
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73210BELT ASSY, FRONT SEAT OUTER, RH
BLACK,TRIM1#,2#,4#
sub73210-0R080
BLACK,BLACK,BLACK,TRIM1#,2#,4#
sub73210-0R080
73214PLATE, FRONT SEAT BELT ANCHOR
(L)
(J)
73219STOPPER, TONGUE PLATE
BLACK
GRAY
BEIGE
73220BELT ASSY, FRONT SEAT OUTER, LH
BLACK,TRIM2#,4#
sub73220-06390
73230BELT ASSY, FRONT SEAT INNER, RH
BLACK,TRIM1#,2#,4#
FRONT SEAT SLIDE-*DRS:POWER(W(SEAT MEMORY)), *PAS:MANUAL,BLACK,TRIM1#,2#,4#
BLACK,TRIM2#,4#
BLACK,TRIM2#
BLACK,TRIM1#,2#,4#
73233COVER, LAP BELT OUTER ANCHOR
BLACK,TRIM2#,4#
BLACK,TRIM1#,2#,4#
BLACK,TRIM2#
73240BELT ASSY, FRONT SEAT INNER, LH
BLACK,TRIM2#,4#
BLACK,TRIM1#,2#,4#
BLACK,TRIM1#,2#,4#
BLACK,TRIM2#,4#
FRONT SEAT SLIDE-*DRS:POWER(W(SEAT MEMORY)), *PAS:MANUAL,BLACK,TRIM1#,2#,4#
FRONT SEAT SLIDE-*DRS:POWER, *PAS:MANUAL,BLACK,TRIM1#,2#,4#
BLACK,TRIM2#
9008017195
main90080-17195
9010510523
90105A0082
main90105-A0082
90105A0186
main90105-A0186
9010911059
90109A0033
main90109-A0033
9017811002
9017911010
9155380612

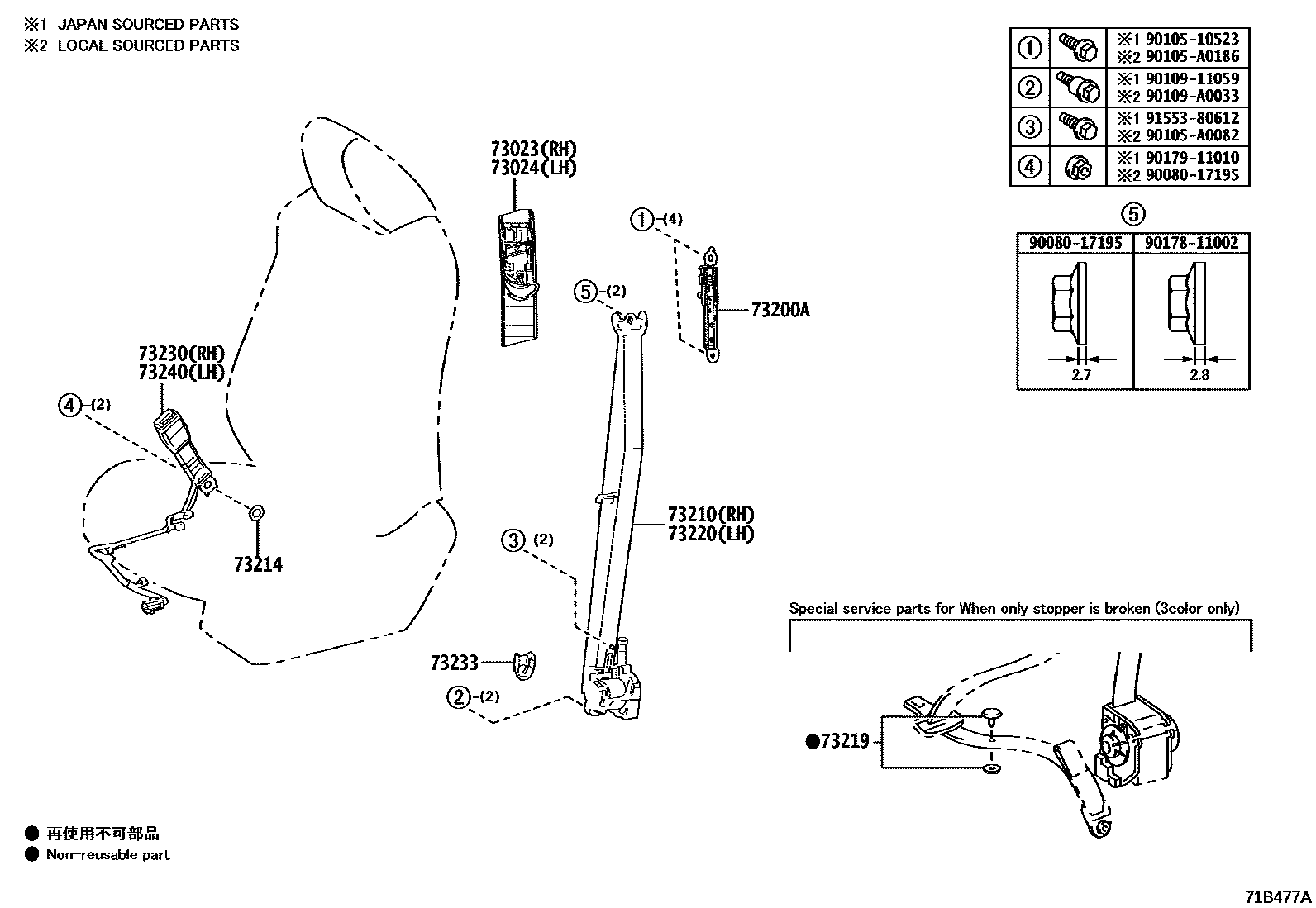

19 parts on this diagram · 2 diagrams in section
