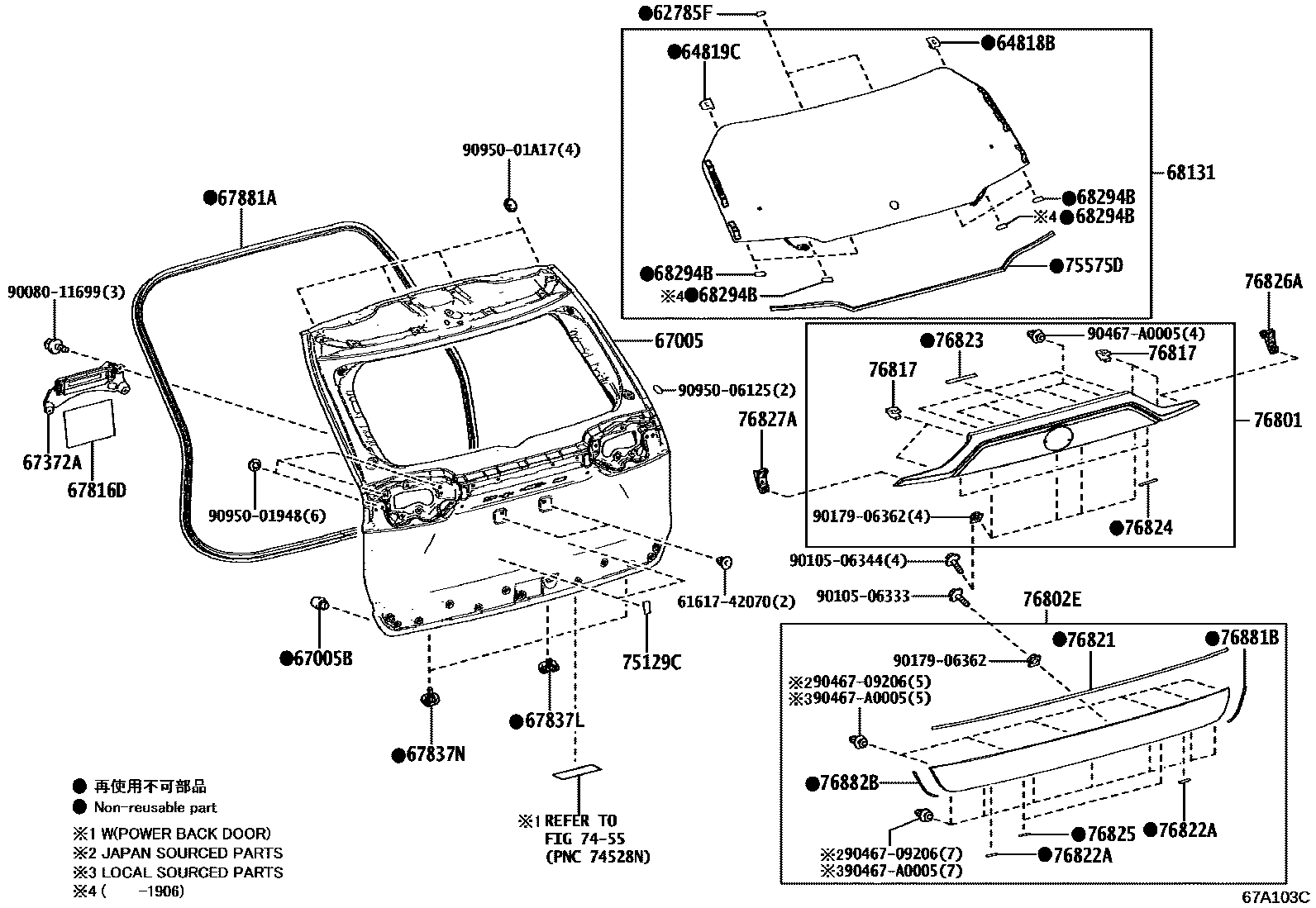

BACK DOOR PANEL & GLASS
62785FSPACER, BACK DOOR GLASS
64818BSPACER, BACK DOOR GLASS, NO.1
64819CSPACER, BACK DOOR GLASS, NO.2
67005PANEL SUB-ASSY, BACK DOOR
POWER DOOR LOCK-W(TWO OPERATION) & W(POWER BACK DOOR)
67005BCUSHION(FOR BACK DOOR PANEL)
67372AWEIGHT, BACK DOOR
67816DSHEET, BACK DOOR PANEL SILENCER
67837LSEAL, DOOR DUST PROOF
67837NSEAL, BACK DOOR DUST PROOF
67881AWEATHERSTRIP, BACK DOOR
68131GLASS, BACK DOOR
68294BDAM, BACK DOOR GLASS ADHESIVE
7455
75129CCUSHION, REAR LICENCE PLATE
75575DMOULDING, BACK WINDOW, LOWER
76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE
PAINT REQ.
76802EGARNISH SUB-ASSY, BACK DOOR, OUTSIDE LOWER
76817CLIP, BACK DOOR OUTSIDE GARNISH
76821PROTECTOR, BACK DOOR GARNISH MOULDING, UPPER
76822APROTECTOR, BACK DOOR GARNISH MOULDING, LWR
76824PROTECTOR, BACK DOOR GARNISH MOULDING, LH
76825PROTECTOR, BACK DOOR OUTSIDE GARNISH
76826ARETAINER, BACK DOOR GARNISH, NO.1
(L)
(J)
76827ARETAINER, BACK DOOR GARNISH, NO.2
(L)
(J)
76881BPROTECTOR, BACK DOOR LOWER MOULDING, RH
76882BPROTECTOR, BACK DOOR LOWER MOULDING, LH
6161742070REINFORCEMENT, BACK FRAME UPPER CORNER, RH
9008011699
9010506333
9010506344
9017906362
9046709206
90467A0005
main90467-A0005
9095001948
9095001A17
9095006125
37 parts on this diagram · 2 diagrams in section
