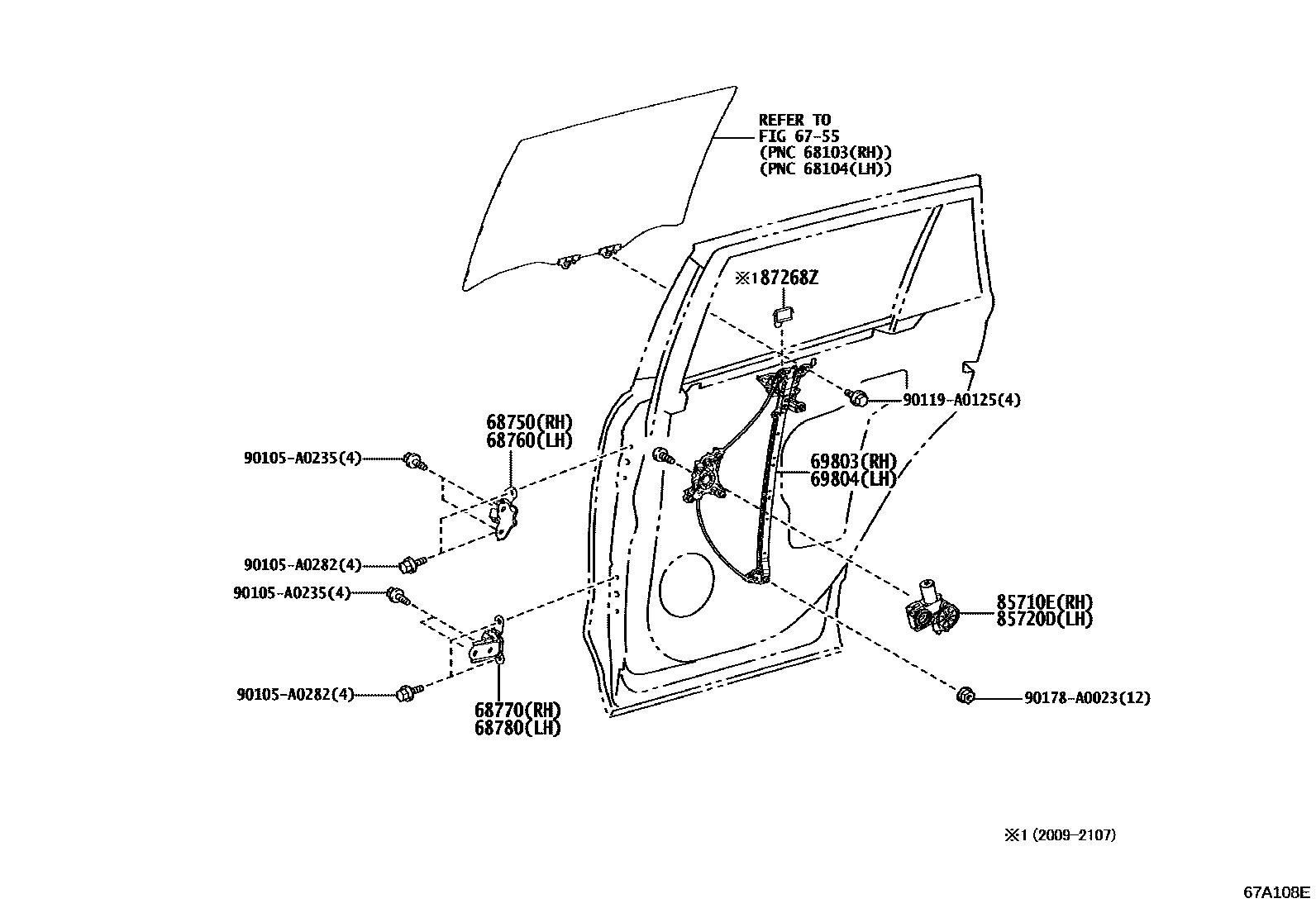

REAR DOOR WINDOW REGULATOR & HINGE

6755

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-06010iAXAA5#,AXAH54,AXAL54201812-202211

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-06010iAXAA5#,AXAH54,AXAL54201812-202211

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-06050iAXAA5#,AXAH54,AXAL54201812-202211

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-06050iAXAA5#,AXAH54,AXAL54201812-202211

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-0R050iAXAA5#,AXAH54,AXAL54201812-202009

sub69803-0R110

main69803-0R052iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54202107-202211

main69803-0R110iAXAA5#,AXAH54,AXAL54202009-202107

sub69803-0R052

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-0R050iAXAA5#,AXAH54,AXAL54201812-202009

sub69804-0R110

main69804-0R052iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54202107-202211

main69804-0R110iAXAA5#,AXAH54,AXAL54202009-202107

sub69804-0R052

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-0R020iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54201812-202211

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-0R080iAXAA5#,AXAH54,AXAL54201812-202211

87268ZPROTECTOR

main87268-0R190iAXAA5#,AXAH54,AXAL54202009-202107

RH

main87268-0R200iAXAA5#,AXAH54,AXAL54202009-202107

LH

90105A0235

main90105-A0235

90105A0282

main90105-A0282

90119A0125

main90119-A0125

90178A0023

main90178-A0023

14 parts on this diagram · 1 diagram in section
