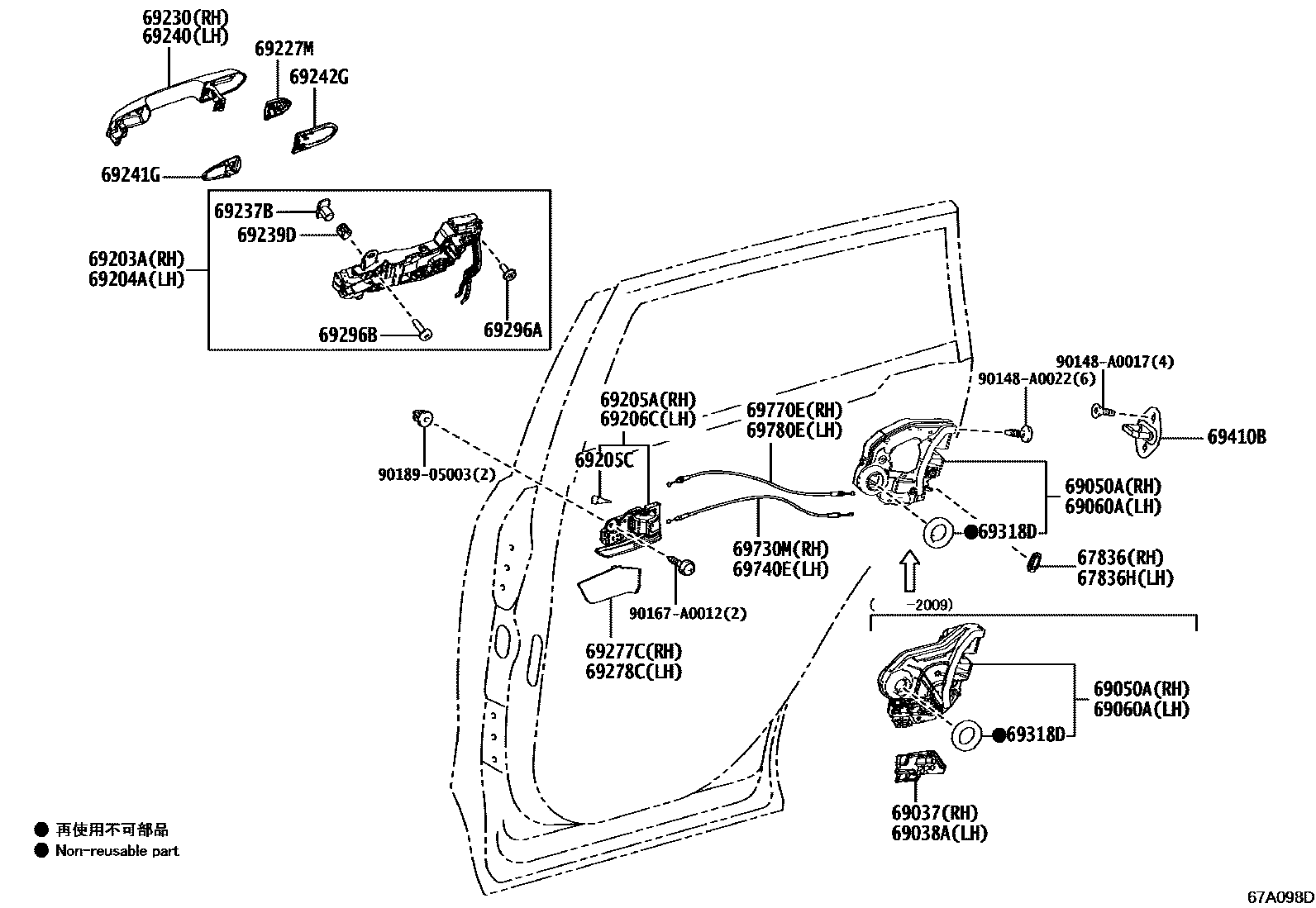

REAR DOOR LOCK & HANDLE

67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH

main67836-60010iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54202211

67836HCOVER, REAR DOOR LOCK CHILD PROTECTION, LH

main67836-60010iAXAA5#,AXAH54,AXAL54201812-202009

69037COVER SUB-ASSY, REAR DOOR LOCK, RH

main69037-02030iAXAA5#,AXAH54,AXAL54201812-202009

69038ACOVER SUB-ASSY, REAR DOOR LOCK, LH

main69038-02030iAXAA5#,AXAH54,AXAL54201812-202009

69050ALOCK ASSY, REAR DOOR W/MOTOR, RH

main69050-02340iAXAA5#,AXAH54,AXAL54201812-202009

main69050-06100iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54202211

69060ALOCK ASSY, REAR DOOR W/MOTOR, LH

main69060-02340iAXAA5#,AXAH54,AXAL54201812-202009

main69060-06100iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54202009-202211

69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH

main69203-0R070iAXAA5#,AXAH54,AXAL54201812-202009

main69203-0R060iAXAA5#,AXAH54,AXAL54..G,P202211

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)

69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH

main69204-0R070iAXAA52..M..CND202009

main69204-0R060iAXAA5#,AXAH54,AXAL54..G201812-202009

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-02300-C0iAXAA5#,AXAH54,AXAL54..X..USA201812-202009

BLACK,TRIM2#,4#

main69205-06120-C0iAXAA54..V202211

BLACK,TRIM2#

69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)

main90080-54005×2iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54202009-202211

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-02350-C0iAXAA5#,AXAH54,AXAL54..X..USA201812-202009

BLACK,TRIM2#,4#

main69206-06160-C0iAXAA54..V202009-202211

BLACK,TRIM2#,4#

69227MCOVER, REAR DOOR OUTSIDE HANDLE

main69227-0R080×2iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54202211

main69227-0R070×2iAXAA5#,AXAH54,AXAL54..G,P202009-202211

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69210-0R110-A1iAXAA5#,AXAH54,AXAL54..G202211

PLATINUM WHITE PEARL MC.,089

main69211-0R070-A0iAXAA5#,AXAH54,AXAL54..M,V,X201812-202009

SUPER WHITE 2,040

main69211-0R070-A1iAXAH54,AXAL54..M202009-202211

WHITE PEARL CS.,070 ,2QJ

main69211-0R070-A2iAXAA52..M..USA;AXAA54,AXAH54,AXAL54..M,S202211

PLATINUM WHITE PEARL MC.,089

main69211-0R070-B0iAXAA52..X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54..M,S,X202211

SILVER ME.,2QY

main69211-0R070-B1iAXAA54..V202009-202211

GRAY ME.,1G3 ,2QX

main69211-0R070-C0iAXAH54,AXAL54..M202211

ATTITUDE BLACK MC.,218 ,2UE ,M02

main69211-0R070-D0iAXAA5#,AXAH54,AXAL54..M,V,X201812-202009

RED MC.,3T3

main69211-0R070-G0iAXAA54..V202009-202211

URBAN KHAKI,2QU ,6X3

main69211-0R070-G2iAXAA54..V202310

DK.GREEN,6V7 ,M30

main69211-0R070-J0iAXAA54..V201812-202009

CYAN METALLIC,2QV ,8W9

main69211-0R070-J1iAXAH54,AXAL54..M201903-202009

DK. BLUE MC.,2RA ,8X8

main69211-0R070-J2iAXAA54..V202112-202211

GRAYISH BLUE,2TU ,8W2

main69210-0R070iAXAH54,AXAL54..P202211-202310

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)

main69210-0R070-A1supersedes 69211-0R070-A1iAXAH54,AXAL54..P202112-202211

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),WHITE PEARL CS.,2QJ

main69210-0R070-A2iAXAH54,AXAL54..P202310

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),PLATINUM WHITE PEARL MC.,2PS

main69210-0R070-B0supersedes 69211-0R070-B0iAXAH54,AXAL54..P202112-202211

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),SILVER ME.,2QY

main69210-0R070-B1supersedes 69211-0R070-B1iAXAH54,AXAL54..P202310

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),GRAY ME.,2QZ

main69210-0R070-J2supersedes 69211-0R070-J2iAXAH54,AXAL54..P202112-202211

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),GRAYISH BLUE,2VV

main69210-0R090iAXAA5#,AXAH54,AXAL54..G202211-202310

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)

main69210-0R090-A0supersedes 69210-0R110-A0iAXAA5#,AXAH54,AXAL54..G202009-202211

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),WHITE PEARL CS.,070

main69210-0R090-A1iAXAA5#,AXAH54,AXAL54..G202310

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),PLATINUM WHITE PEARL MC.,089

main69210-0R090-B0supersedes 69210-0R110-B0iAXAA5#,AXAH54,AXAL54..G202310

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),SILVER ME.,1D6

main69210-0R090-B1supersedes 69210-0R110-B1iAXAA5#,AXAH54,AXAL54..G202009-202211

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),GRAY ME.,1G3

main69210-0R090-C0supersedes 69210-0R110-C0iAXAA5#,AXAH54,AXAL54..G202009-202211

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),ATTITUDE BLACK MC.,218

main69210-0R090-D0supersedes 69210-0R110-D0iAXAA5#,AXAH54,AXAL54..G201812-202009

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),RED MC.,3T3

main69210-0R090-J0supersedes 69210-0R110-J0iAXAA5#,AXAH54,AXAL54..G202009-202211

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),DK. BLUE MC.,8X8

69237BNUT, REAR DOOR HANDLE

main69237-06030×2iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54202211

main69237-62010×2iAXAA5#,AXAH54,AXAL54..G201812-202009

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)

sub69237-0E010

69239DBUSH, REAR DOOR HANDLE

main69239-06030×2iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54202009-202211

main69239-06040×2iAXAA5#,AXAH54,AXAL54..G,P202009-202211

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69210-0R110-A1iAXAA5#,AXAH54,AXAL54..G202211

PLATINUM WHITE PEARL MC.,089

main69211-0R070-A0iAXAA52..X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54..M,V,X202211

SUPER WHITE 2,040

main69211-0R070-A1iAXAH54,AXAL54..M202009-202211

WHITE PEARL CS.,070 ,2QJ

main69211-0R070-A2iAXAH54,AXAL54..P202211

PLATINUM WHITE PEARL MC.,089

main69211-0R070-B0iAXAA52..X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54..M,S,X202211

SILVER ME.,2QY

main69211-0R070-B1iAXAA54..V202211

GRAY ME.,1G3 ,2QX

main69211-0R070-C0iAXAA54..V202009-202211

ATTITUDE BLACK MC.,218 ,2QW

main69211-0R070-D0iAXAA5#,AXAH54,AXAL54..M,V,X201812-202009

RED MC.,3T3

main69211-0R070-G0iAXAA54..V..USA202211-202310

URBAN KHAKI,2QU ,6X3

main69211-0R070-G2iAXAA54..V202310

DK.GREEN,6V7 ,M30

main69211-0R070-J0iAXAA54..V201812-202009

CYAN METALLIC,2QV ,8W9

main69211-0R070-J1iAXAH54,AXAL54..M202009-202211

DK. BLUE MC.,8X8

main69211-0R070-J2iAXAA54..V202211

GRAYISH BLUE,2TU ,8W2

main69210-0R070iAXAH54,AXAL54..P202211-202310

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)

main69210-0R070-A1supersedes 69211-0R070-A1iAXAH54,AXAL54..P202112-202211

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),WHITE PEARL CS.,2QJ

main69210-0R070-A2iAXAH54,AXAL54..P202310

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),PLATINUM WHITE PEARL MC.,2PS

main69210-0R070-B0supersedes 69211-0R070-B0iAXAH54,AXAL54..P202310

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),SILVER ME.,2QY

main69210-0R070-B1supersedes 69211-0R070-B1iAXAH54,AXAL54..P202112-202211

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),GRAY ME.,2QZ

main69210-0R070-J2supersedes 69211-0R070-J2iAXAH54,AXAL54..P202310

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),GRAYISH BLUE,2VV

main69210-0R090iAXAA5#,AXAH54,AXAL54..G202211-202310

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)

main69210-0R090-A0supersedes 69210-0R110-A0iAXAA5#,AXAH54,AXAL54..G201812-202009

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),WHITE PEARL CS.,070

main69210-0R090-A1iAXAA5#,AXAH54,AXAL54..G202310

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),PLATINUM WHITE PEARL MC.,089

main69210-0R090-B0supersedes 69210-0R110-B0iAXAA5#,AXAH54,AXAL54..G202009-202211

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),SILVER ME.,1D6

main69210-0R090-B1supersedes 69210-0R110-B1iAXAA5#,AXAH54,AXAL54..G202310

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),GRAY ME.,1G3

main69210-0R090-C0supersedes 69210-0R110-C0iAXAA5#,AXAH54,AXAL54..G202310

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),ATTITUDE BLACK MC.,218

main69210-0R090-D0supersedes 69210-0R110-D0iAXAA5#,AXAH54,AXAL54..G201812-202009

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),RED MC.,3T3

main69210-0R090-J0supersedes 69210-0R110-J0iAXAA5#,AXAH54,AXAL54..G202310

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),DK. BLUE MC.,8X8

69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT

main69241-0R030×2iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54202009-202211

69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR

main69242-0R030×2iAXAA5#,AXAH54,AXAL54201812-202009

69277CBEZEL, REAR DOOR INSIDE HANDLE, RH

main69277-0R020-C0iAXAA54..V201812-202009

BLACK,TRIM2#,4#

69278CBEZEL, REAR DOOR INSIDE HANDLE, LH

main69278-0R020-C0iAXAA54..V201812-202009

BLACK,TRIM2#,4#

69296ASCREW, DOOR INSIDE HANDLE

main69296-02020×2iAXAA5#,AXAH54,AXAL54202009-202205

main90084-14006×2iAXAA52..M..CND202206

main69296-0T010×2iAXAA5#,AXAH54,AXAL54..G201812-202009

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)

main90148-50006×2iAXAA5#,AXAH54,AXAL54..G,P202203-202211

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)

69296BSCREW, DOOR INSIDE HANDLE

main69296-06070×2iAXAA5#,AXAH54,AXAL54201812-202009

main90148-50006×2iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54202206-202211

main90084-14006×2iAXAA5#,AXAH54,AXAL54..G,P202009-202211

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)

69318DSEAL, DOOR LOCK WIRING HARNESS

main69318-AA010×2iAXAA5#,AXAH54,AXAL54201812-202009

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-02030×2iAXAA5#,AXAH54,AXAL54201812-202009

69730MCABLE, REAR DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)

main69730-0R060iAXAA5#,AXAH54,AXAL54201812-202009

main69730-0R090iAXAA52..M..CND202009

69740ECABLE, REAR DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)

main69730-0R060iAXAA5#,AXAH54,AXAL54201812-202009

main69730-0R090iAXAA52..M..CND202009

69770ECABLE, REAR DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)

main69770-0R060iAXAA5#,AXAH54,AXAL54201812-202009

main69770-0R090iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54202211

69780ECABLE, REAR DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)

main69770-0R060iAXAA5#,AXAH54,AXAL54201812-202009

main69770-0R090iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54202211

90148A0017

main90148-A0017

90148A0022

main90148-A0022

90167A0012

main90167-A0012

9018905003

main90189-05003

32 parts on this diagram · 1 diagram in section
