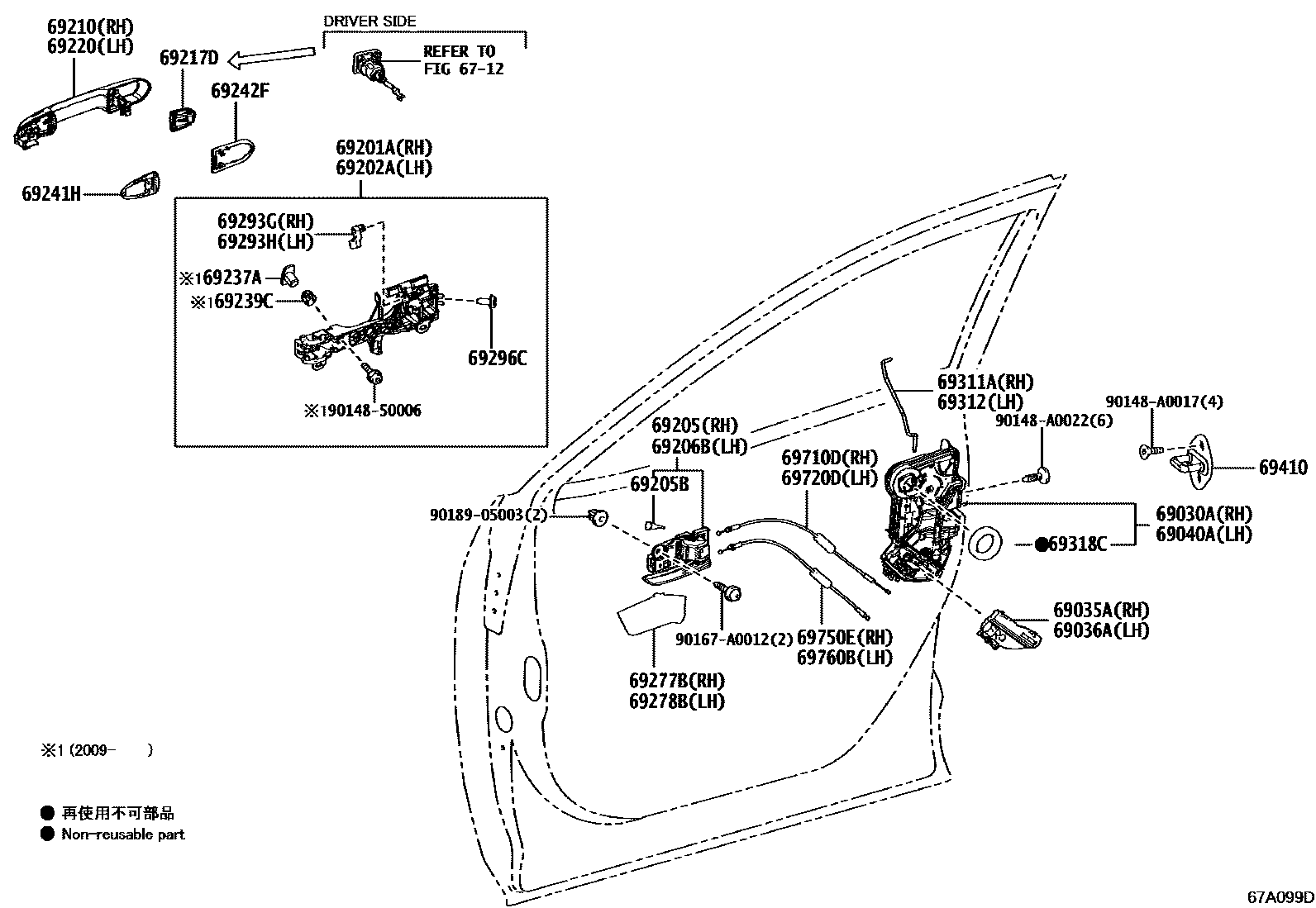

FRONT DOOR LOCK & HANDLE

6712LOCK CYLINDER SET

→ Go to FIG 67-12

69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH

main69030-02380iAXAA52..M..CND201812-202211

69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH

main69035-02030iAXAA52..M..CND201812-202211

69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH

main69036-02030iAXAA52..M..CND201812-202211

69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH

main69040-02440iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54201812-202211

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-0R040iAXAA5#,AXAH54,AXAL54..X201812-202009

KEY PLATE-FOR SMART ENTRY

main69201-0R040iAXAA52..(G,M)..USA;AXAA54,AXAH54,AXAL54..G,M,P,S,V202009-202211

main69201-0R050iAXAA5#,AXAH54,AXAL54..X201812-202211

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-0R040iAXAA52..(G,M)..USA;AXAA54,AXAH54,AXAL54..G,M,P,S,V202009-202211

main69202-0R040iAXAA5#,AXAH54,AXAL54..G,M,V201812-202009

KEY PLATE-FOR SMART ENTRY

main69202-0R050iAXAA5#,AXAH54,AXAL54..X201812-202211

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-02300-C0iAXAA5#,AXAH54,AXAL54..X201812-202211

BLACK,TRIM2#,4#

main69205-02300-C0iAXAA5#,AXAH54..X..CND201812-202009

BLACK,TRIM1#,2#,4#

main69205-06120-C0iAXAA52..(G,M)..USA;AXAA54,AXAH54,AXAL54..G,M201812-202211

BLACK,TRIM1#,2#,4#

main69205-06120-C0iAXAA5#,AXAH54,AXAL54..G,M201812-202211

BLACK,TRIM2#,4#

main69205-06120-C0iAXAA52..(G,M)..USA;AXAA54,AXAH54,AXAL54..G,M202112-202211

BLACK,TRIM2#

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90080-54005iAXAA5#,AXAH54,AXAL54201812-202211

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-02350-C0iAXAA5#,AXAH54,AXAL54..X..USA201812-202009

BLACK,TRIM1#,2#,4#

main69206-02350-C0iAXAA5#,AXAH54,AXAL54..X..USA201812-202211

BLACK,TRIM2#,4#

main69206-06160-C0iAXAA54..V201812-202211

BLACK,TRIM2#,4#

main69206-06160-C0iAXAA54..V201812-202211

BLACK,TRIM1#,2#,4#

main69206-06160-C0iAXAH54,AXAL54..P,S202112-202211

BLACK,TRIM2#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-0R070-A0iAXAA52..M..USA;AXAA54,AXAH54,AXAL54..M,V201812-202211

SUPER WHITE 2,040

main69210-0R070-A0iAXAA5#,AXAH54,AXAL54..M,V201812-202009

KEY PLATE-FOR SMART ENTRY,SUPER WHITE 2,040

main69210-0R070-A1iAXAA54..M;AXAA52..M..USA;AXAH54,AXAL54..S202009-202211

WHITE PEARL CS.,070

main69210-0R070-A1iAXAH54,AXAL54..M202009-202211

WHITE PEARL CS.,070 ,2QJ

main69210-0R070-A1iAXAH54,AXAL54..P201903-202211

WHITE PEARL CS.,2QJ

main69210-0R070-A2iAXAH54,AXAL54..P202211

PLATINUM WHITE PEARL MC.,089

main69210-0R070-A2iAXAH54,AXAL54..P202211

PLATINUM WHITE PEARL MC.,2PS

main69210-0R070-B0iAXAH54,AXAL54..P202112-202211

SILVER ME.,2QY

main69210-0R070-B0iAXAA5#,AXAH54,AXAL54..X201812-202009

KEY PLATE-FOR SMART ENTRY,SILVER ME.,1D6

main69210-0R070-B0iAXAH54,AXAL54..M201903-202211

SILVER ME.,1D6 ,2QY

main69210-0R070-B0iAXAA52..M..CND201812-202211

SILVER ME.,1D6

main69210-0R070-B1iAXAH54,AXAL54..P201812-202211

GRAY ME.,1G3

main69210-0R070-B1iAXAA52..M..USA;AXAA54,AXAH54,AXAL54..M,S202112-202211

GRAY ME.,2QZ

main69210-0R070-B1iAXAA54..V201812-202211

GRAY ME.,1G3 ,2QX

main69210-0R070-B1iAXAA54..V201812-202009

KEY PLATE-FOR SMART ENTRY,GRAY ME.,1G3

main69210-0R070-B1iAXAH54,AXAL54..M201903-202211

GRAY ME.,1G3 ,2QZ

main69210-0R070-C0iAXAA54..V..CND201812-202211

ATTITUDE BLACK MC.,218

main69210-0R070-C0iAXAA54..V..CND201812-202211

ATTITUDE BLACK MC.,218 ,2QW

main69210-0R070-C0iAXAA54..M..CND;AXAH54,AXAL54..S;AXAA5#..(M,V)..USA202211

ATTITUDE BLACK MC.,218 ,2UE ,M02

main69210-0R070-C0iAXAA54..V201812-202009

KEY PLATE-FOR SMART ENTRY,ATTITUDE BLACK MC.,218

main69210-0R070-C1iAXAA54..V202211

BLACK,2QW

main69210-0R070-D0iAXAA5#,AXAH54,AXAL54..M,V201812-202009

KEY PLATE-FOR SMART ENTRY,RED MC.,3T3

main69210-0R070-D0iAXAA5#,AXAH54,AXAL54..X201812-202211

RED MC.,3T3

main69210-0R070-G0iAXAA5#,AXAH54,AXAL54..M201812-202310

URBAN KHAKI,2QU ,6X3

main69210-0R070-G0iAXAA52..M..CND201812-202310

URBAN KHAKI,6X3

main69210-0R070-G2iAXAA54..V202310

DK.GREEN,6V7 ,M30

main69210-0R070-J0iAXAA54..V201812-202112

CYAN METALLIC,2QV ,8W9

main69210-0R070-J0iAXAA54..V201812-202112

CYAN METALLIC,8W9

main69210-0R070-J0iAXAA54..V201812-202112

KEY PLATE-FOR SMART ENTRY,CYAN METALLIC,8W9

main69210-0R070-J1iAXAH54,AXAL54..M201903-202211

DK. BLUE MC.,2RA ,8X8

main69210-0R070-J1iAXAH54,AXAL54..M201812-202211

DK. BLUE MC.,8X8

main69210-0R070-J2iAXAH54,AXAL54..S202112-202211

GRAYISH BLUE,2VV

main69210-0R070-J2iAXAA54..V202112-202211

GRAYISH BLUE,2TU ,8W2

main69210-0R070-J2iAXAA54..V202112-202310

GRAYISH BLUE,8W2

main69210-0R090-A0iAXAA5#,AXAH54,AXAL54..G201812-202211

WHITE PEARL CS.,070

main69210-0R090-A1iAXAA5#,AXAH54,AXAL54..G202211

PLATINUM WHITE PEARL MC.,089

main69210-0R090-B0iAXAA5#,AXAH54,AXAL54..G201812-202211

SILVER ME.,1D6

main69210-0R090-B1iAXAA5#,AXAH54,AXAL54..G201812-202211

GRAY ME.,1G3

main69210-0R090-C0iAXAA5#,AXAH54,AXAL54..G201812-202211

ATTITUDE BLACK MC.,218

main69210-0R090-D0iAXAA5#,AXAH54,AXAL54..G201812-202211

RED MC.,3T3

main69210-0R090-J0iAXAA5#,AXAH54,AXAL54..G201812-202211

DK. BLUE MC.,8X8

main69211-0R070-A0iAXAA5#,AXAH54,AXAL54..X201812-202211

SUPER WHITE 2,040

main69211-0R070-B0iAXAA5#,AXAH54,AXAL54..X201812-202211

SILVER ME.,1D6

main69211-0R070-B1iAXAA5#,AXAH54,AXAL54..X201812-202211

GRAY ME.,1G3

main69211-0R070-C0iAXAA5#,AXAH54,AXAL54..X201812-202211

ATTITUDE BLACK MC.,218

main69211-0R070-D0iAXAA5#,AXAH54,AXAL54..X201812-202211

RED MC.,3T3

main69211-0R070-J0iAXAA5#,AXAH54,AXAL54..X201812-202112

CYAN METALLIC,8W9

69217DCOVER, FRONT DOOR OUTSIDE HANDLE

main69217-0R160iAXAA52..(G,M)..USA;AXAA54,AXAH54,AXAL54..G,M,P,S,V202009-202211

main69217-0R160iAXAA5#,AXAH54,AXAL54..G,M,V201812-202009

KEY PLATE-FOR SMART ENTRY

main69217-0R170iAXAA5#,AXAH54,AXAL54..X201812-202211

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69210-0R080-A0iAXAA5#,AXAH54,AXAL54..X201812-202009

KEY PLATE-FOR SMART ENTRY,SUPER WHITE 2,040

main69210-0R080-A0iAXAA52..M..USA;AXAA54,AXAH54,AXAL54..M,V201812-202211

SUPER WHITE 2,040

main69210-0R080-A1iAXAH54,AXAL54..M201903-202211

WHITE PEARL CS.,2QJ

main69210-0R080-A1iAXAA54..M;AXAA52..M..USA;AXAH54,AXAL54..S202009-202211

WHITE PEARL CS.,070 ,2QJ

main69210-0R080-A1iAXAA54..M;AXAA52..M..USA;AXAH54,AXAL54..S202009-202211

WHITE PEARL CS.,070

main69210-0R080-A2iAXAA52..M..USA;AXAA54,AXAH54,AXAL54..M,S202211

PLATINUM WHITE PEARL MC.,089

main69210-0R080-A2iAXAA52..M..USA;AXAA54,AXAH54,AXAL54..M,S202211

PLATINUM WHITE PEARL MC.,2PS

main69210-0R080-B0iAXAH54,AXAL54..M201812-202211

SILVER ME.,1D6

main69210-0R080-B0iAXAH54,AXAL54..M201903-202211

SILVER ME.,1D6 ,2QY

main69210-0R080-B0iAXAA5#..M201812-202009

KEY PLATE-FOR SMART ENTRY,SILVER ME.,1D6

main69210-0R080-B0iAXAH54,AXAL54..P202112-202211

SILVER ME.,2QY

main69210-0R080-B1iAXAA54..V201812-202211

GRAY ME.,1G3

main69210-0R080-B1iAXAH54,AXAL54..P202112-202211

GRAY ME.,2QZ

main69210-0R080-B1iAXAA54..V201812-202211

GRAY ME.,1G3 ,2QX

main69210-0R080-B1iAXAA54..V201812-202009

KEY PLATE-FOR SMART ENTRY,GRAY ME.,1G3

main69210-0R080-B1iAXAH54,AXAL54..M201903-202211

GRAY ME.,1G3 ,2QZ

main69210-0R080-C0iAXAA54..V201812-202211

ATTITUDE BLACK MC.,218 ,2QW

main69210-0R080-C0iAXAA54..V..CND202211

ATTITUDE BLACK MC.,218 ,2UE ,M02

main69210-0R080-C0iAXAA54..V..CND201812-202211

ATTITUDE BLACK MC.,218

main69210-0R080-C0iAXAA5#,AXAH54,AXAL54..X201812-202009

KEY PLATE-FOR SMART ENTRY,ATTITUDE BLACK MC.,218

main69210-0R080-C1iAXAA54..V202211

BLACK,2QW

main69210-0R080-D0iAXAA5#,AXAH54,AXAL54..M,V201812-202009

KEY PLATE-FOR SMART ENTRY,RED MC.,3T3

main69210-0R080-D0iAXAA5#,AXAH54,AXAL54..X201812-202211

RED MC.,3T3

main69210-0R080-G0iAXAA52..M..USA;AXAA54,AXAH54,AXAL54..M201812-202310

URBAN KHAKI,2QU ,6X3

main69210-0R080-G0iAXAA54..V201812-202310

URBAN KHAKI,6X3

main69210-0R080-G2iAXAA54..V202310

DK.GREEN,6V7 ,M30

main69210-0R080-J0iAXAA5#,AXAH54,AXAL54..X201812-202112

KEY PLATE-FOR SMART ENTRY,CYAN METALLIC,8W9

main69210-0R080-J0iAXAA54..V201812-202112

CYAN METALLIC,8W9

main69210-0R080-J0iAXAA5#,AXAH54,AXAL54..M201812-202112

CYAN METALLIC,2QV ,8W9

main69210-0R080-J1iAXAH54,AXAL54..M201812-202211

DK. BLUE MC.,8X8

main69210-0R080-J1iAXAA54..M;AXAA52..M..USA201903-202211

DK. BLUE MC.,2RA ,8X8

main69210-0R080-J2iAXAA54..V202112-202310

GRAYISH BLUE,8W2

main69210-0R080-J2iAXAA54..V202112-202211

GRAYISH BLUE,2VV

main69210-0R080-J2iAXAA54..V202112-202211

GRAYISH BLUE,2TU ,8W2

main69210-0R100-A0iAXAA5#,AXAH54,AXAL54..G201812-202211

WHITE PEARL CS.,070

main69210-0R100-A1iAXAA5#,AXAH54,AXAL54..G202211

PLATINUM WHITE PEARL MC.,089

main69210-0R100-B0iAXAA5#,AXAH54,AXAL54..G201812-202211

SILVER ME.,1D6

main69210-0R100-B1iAXAA5#,AXAH54,AXAL54..G201812-202211

GRAY ME.,1G3

main69210-0R100-C0iAXAA5#,AXAH54,AXAL54..G201812-202211

ATTITUDE BLACK MC.,218

main69210-0R100-D0iAXAA5#,AXAH54,AXAL54..G201812-202211

RED MC.,3T3

main69210-0R100-J0iAXAA5#,AXAH54,AXAL54..G201812-202211

DK. BLUE MC.,8X8

main69211-0R080-A0iAXAA5#,AXAH54,AXAL54..X201812-202211

SUPER WHITE 2,040

main69211-0R080-B0iAXAA5#,AXAH54,AXAL54..X201812-202211

SILVER ME.,1D6

main69211-0R080-B1iAXAA5#,AXAH54,AXAL54..X201812-202211

GRAY ME.,1G3

main69211-0R080-C0iAXAA5#,AXAH54,AXAL54..X201812-202211

ATTITUDE BLACK MC.,218

main69211-0R080-D0iAXAA5#,AXAH54,AXAL54..X201812-202211

RED MC.,3T3

main69211-0R080-J0iAXAA5#,AXAH54,AXAL54..X201812-202112

CYAN METALLIC,8W9

69237ANUT, FRONT DOOR HANDLE

main69237-06030iAXAA5#,AXAH54,AXAL54..X202009-202211

main69237-62010iAXAA5#,AXAH54,AXAL54..G,M,P,S,V202009

69239CBUSH, FRONT DOOR HANDLE

main69239-06030iAXAA5#,AXAH54,AXAL54..X202009-202211

main69239-06040iAXAA5#,AXAH54,AXAL54..G,M,P,S,V202009

69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT

main69241-0R030iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54201812-202211

69242FPAD, FRONT DOOR OUTSIDE HANDLE, REAR

main69242-0R030iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54201812-202211

69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH

main69277-0R020-C0iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54202007-202211

BLACK

main69277-0R020-C0iAXAA54..V201812-202009

BLACK,TRIM2#,4#

main69277-0R020-C0iAXAA54..V201812-202009

BLACK,TRIM1#,2#,4#

69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH

main69278-0R020-C0iAXAA54..V201812-202009

BLACK,TRIM1#,2#,4#

main69278-0R020-C0iAXAA54..V201812-202009

BLACK,TRIM2#,4#

main69278-0R020-C0iAXAL54202007-202211

BLACK

69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH

main69293-33030iAXAA5#,AXAH54,AXAL54..X201812-202009

KEY PLATE-FOR SMART ENTRY

main69293-33030iAXAA52..(G,M)..USA;AXAA54,AXAH54,AXAL54..G,M,P,S,V202009-202211

main69293-33050iAXAA5#,AXAH54,AXAL54..X201812-202211

69293HSNAP, FRONT DOOR OUTSIDE HANDLE, LH

main69293-33040iAXAA52..M..CND202009-202211

main69293-33040iAXAA5#,AXAH54,AXAL54..X201812-202009

KEY PLATE-FOR SMART ENTRY

main69293-33060iAXAA5#,AXAH54,AXAL54..X201812-202211

69296CSCREW, DOOR INSIDE HANDLE

main69296-02020iAXAA5#,AXAH54,AXAL54..X201812-202009

main90084-14006iAXAA5#,AXAH54,AXAL54..G,M,V201812-202009

KEY PLATE-FOR SMART ENTRY

main90084-14006iAXAA5#,AXAH54,AXAL54202009

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-0R050iAXAA5#,AXAH54,AXAL54201812-202211

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-0R050iAXAA52..M..CND201812-202211

69318CSEAL, DOOR LOCK WIRING HARNESS

main69318-AA010iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54201812-202211

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-02030iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54201812-202211

69710DCABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)

main69710-0R060iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54201812-202211

69720DCABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)

main69710-0R060iAXAA52..M..CND201812-202211

69750ECABLE, FRONT DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)

main69750-0R060iAXAA52..M..CND201812-202211

69760BCABLE, FRONT DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)

main69750-0R060iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54201812-202211

9014850006

main90148-50006

90148A0017

main90148-A0017

90148A0022

main90148-A0022

90167A0012

main90167-A0012

9018905003

main90189-05003

35 parts on this diagram · 1 diagram in section
