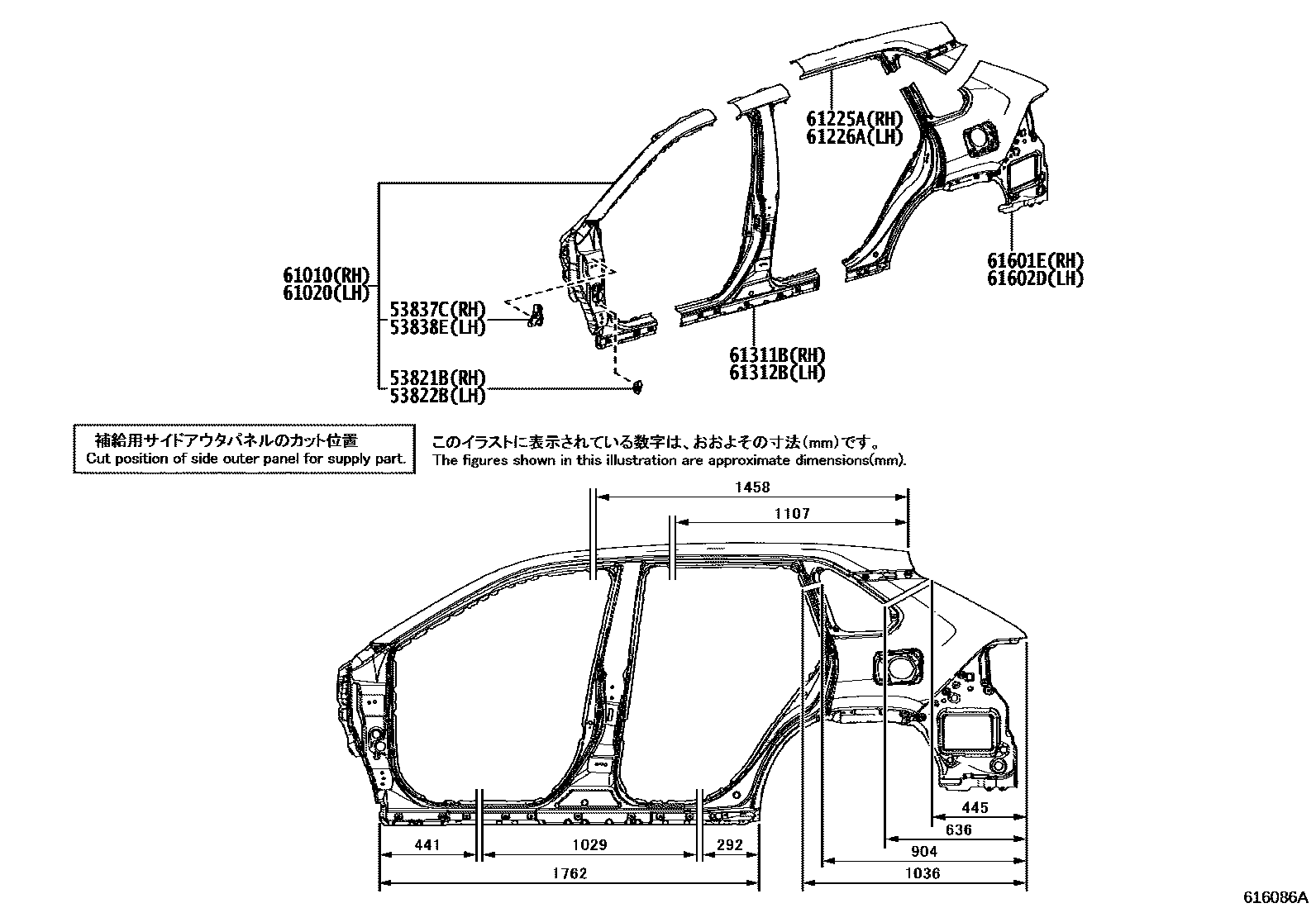

SIDE MEMBER

0001 1OUTER PANEL 0002 1INNER PANEL, RH 0003 1INNER PANEL, LH

53821BBRACKET, FRONT FENDER, REAR RH

main53821-0R040iAXAA5#,AXAH54,AXAL54201812-202211

53822BBRACKET, FRONT FENDER, REAR LH

main53821-0R040iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54201812-202211

53837CBRACKET, FRONT SIDE PANEL, NO.2 RH

main53837-0R010iAXAA52..M..CND201812-202211

53838EBRACKET, FRONT SIDE PANEL, NO.2 LH

main53838-0R010iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54201812-202211

61010MEMBER ASSY, SIDE, RH

main61010-0R020iAXAA5#,AXAH54,AXAL54201812-202112

main61010-0R021iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54202112-202211

61020MEMBER ASSY, SIDE, LH

main61020-0R020iAXAA5#,AXAH54,AXAL54201812-202112

main61020-0R021iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54202112-202211

61225ARAIL, ROOF SIDE OUTER UPPER NO.1, RH

main61210-0R010iAXAA5#,AXAH54,AXAL54201812-202112

main61210-0R011iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54202112-202211

61226ARAIL, ROOF SIDE OUTER UPPER NO.1, LH

main61220-0R010iAXAA5#,AXAH54,AXAL54201812-202112

main61220-0R011iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54202112-202211

61311BPILLAR, CENTER BODY, OUTER RH

main61311-0R060iAXAA5#,AXAH54,AXAL54201812-202112

main61311-0R061iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54202112-202211

61312BPILLAR, CENTER BODY, OUTER LH

main61312-0R070iAXAA5#,AXAH54,AXAL54201812-202112

main61312-0R071iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54202112-202211

61601EPANEL SUB-ASSY, QUARTER, OUTER RH

main61601-0R160iAXAA5#,AXAH54,AXAL54201812-202009

main61601-0R220iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54202009-202211

61602DPANEL SUB-ASSY, QUARTER, OUTER LH

main61602-0R160iAXAA5#,AXAH54,AXAL54201812-202009

main61602-0R200iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54202009-202211

12 parts on this diagram · 3 diagrams in section
