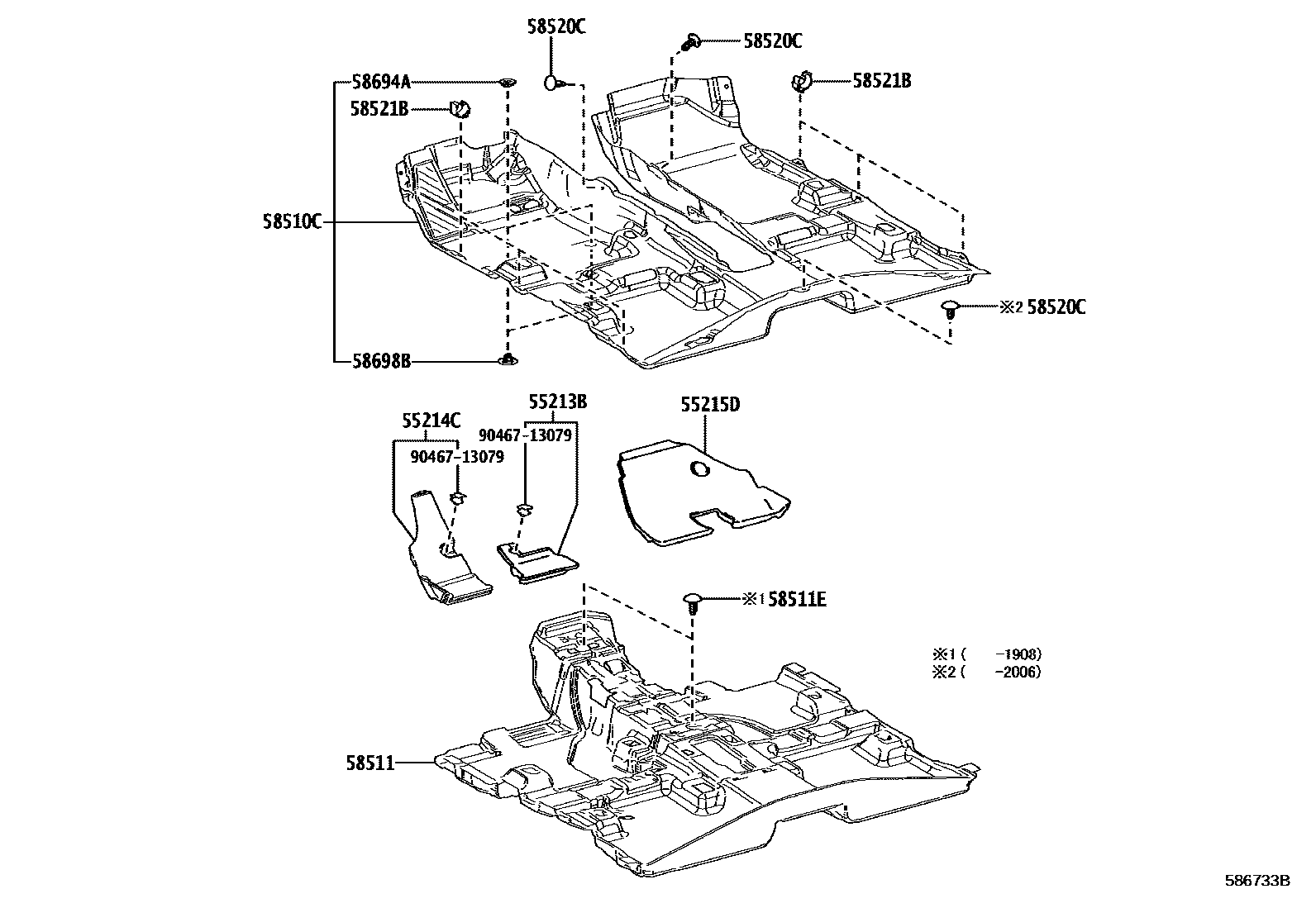

FLOOR MAT & SILENCER PAD

0001 1 0002 1

55213BPAD, DASH PANEL INSULATOR, NO.1

main55213-0R010iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54202211

55214CPAD, DASH PANEL INSULATOR, NO.2

main55214-0R050iAXAA5#,AXAH54,AXAL54201812-202009

55215DPAD, DASH PANEL INSULATOR, NO.3

main55215-0R010iAXAA5#,AXAH54,AXAL54201812-202009

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-0R130-C1iAXAA54..G,M;AXAA52..(G,M)..USA202009-202211

BLACK,TRIM2#,4#

main58510-0R150-C1iAXAH54,AXAL54..X202211

BLACK,TRIM2#,4#

58511MAT, FLOOR, FRONT

main58511-0R010iAXAA5#201812-202009

main58511-0R020iAXAH54,AXAL54202211

58511ECLIP(FOR FRONT FLOOR MAT)

main90467-07042-C4×2iAXAA5#,AXAH54201812-201908

BLACK

sub90467-06175

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-05164-C7×2iAXAA5#..(G,M)..USA;AXAA5#..(G,M,X)..CND202006-202009

BLACK,TRIM1#,2#,4#

58521BHOOK, FLOOR CARPET

main58521-06140×6iAXAA5#,AXAH54,AXAL54201911-202009

main58521-33060×6iAXAA5#,AXAH54201812-201910

58694APLATE, MAT SET, UPPER

main58694-33010×2iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54202009-202211

58698BPLATE, MAT SET, LOWER

main58698-33010×2iAXAA5#,AXAH54,AXAL54201812-202009

9046713079

main90467-13079

11 parts on this diagram · 2 diagrams in section
