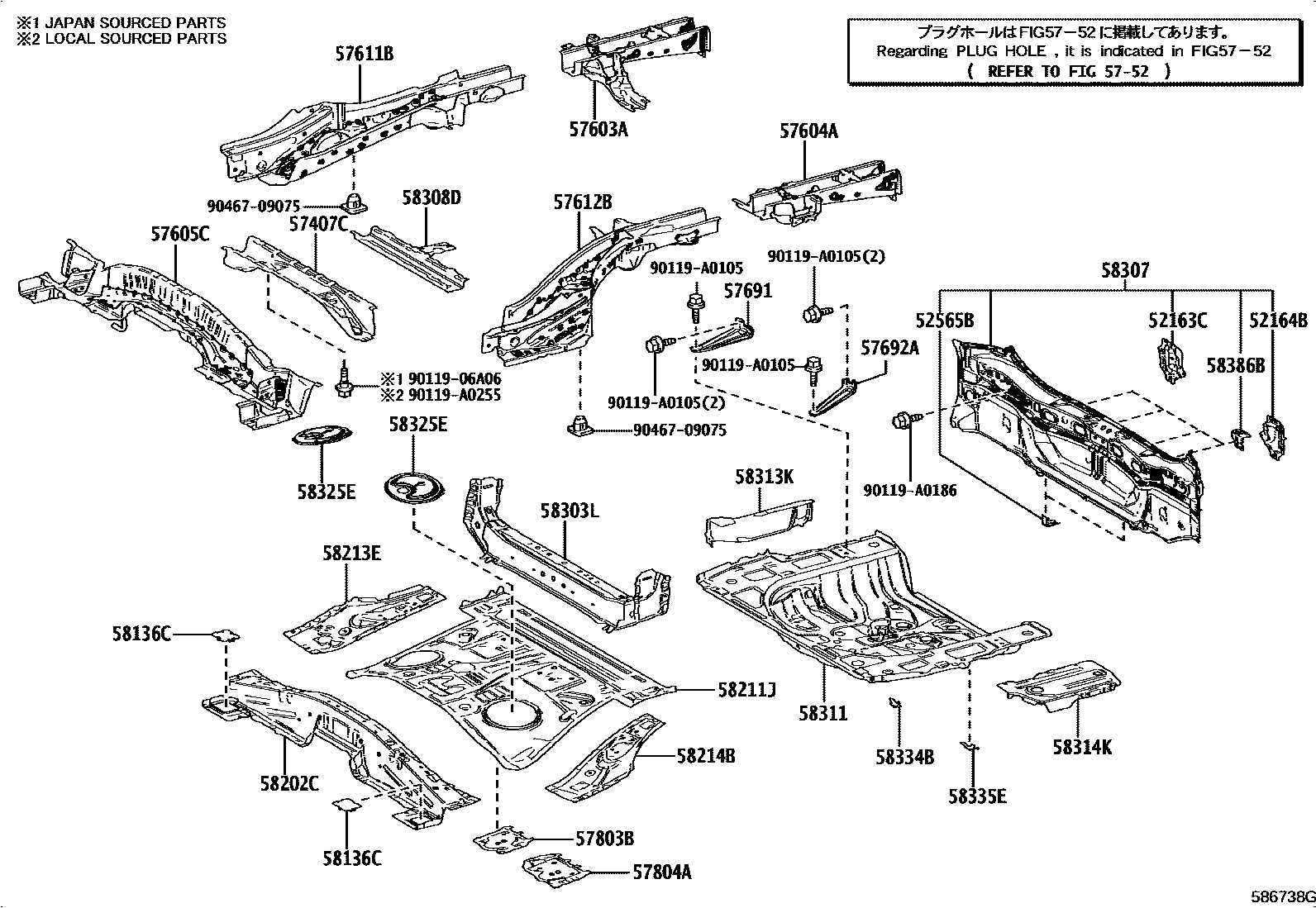

REAR FLOOR PANEL & REAR FLOOR MEMBER

0001 1 0002 1

52163CPLATE, REAR BUMPER REINFORCEMENT, RH

main52163-0R030iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54201812-202009

52164BPLATE, REAR BUMPER REINFORCEMENT, LH

main52164-0R030iAXAA5#,AXAH54,AXAL54201812-202009

52565BRETAINER, REAR BUMPER, LOWER

main52565-0R040iAXAA5#,AXAH54,AXAL54202009

57407CMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1

main57407-0R010iAXAA5#,AXAH54,AXAL54201812-202111

sub57407-0R011

main57407-0R011iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54202112-202211

5752

57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH

main57603-0R030iAXAA52..M..CND201812-202309

sub57603-0R031

main57603-0R031iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54202310-202406

main57603-0R032iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54202407

57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH

main57604-0R030iAXAA5#,AXAH54,AXAL54201812-202406

main57604-0R031iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54202407

57605CMEMBER SUB-ASSY, REAR FLOOR CROSS

main57605-0R030iAXAA5#201812-202211

main57605-0R040iAXAH54,AXAL54201903-202211

57611BMEMBER, REAR FLOOR SIDE, FRONT RH

main57611-0R900iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54201812-202211

57612BMEMBER, REAR FLOOR SIDE, FRONT LH

main57612-0R900iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54201812-202211

57691BRACE, REAR FLOOR NO.2 CROSSMEMBER, INNER RH

main57691-0R010iAXAA5#,AXAH54,AXAL54201812-202211

57692ABRACE, REAR FLOOR NO.2 CROSSMEMBER, INNER LH

main57692-0R010iAXAA5#,AXAH54,AXAL54201812-202211

57803BREINFORCE SUB-ASSY, BELT ANCHOR, NO.2 RH

main57803-0R030iAXAA52..M..CND201812-202211

57804AREINFORCE SUB-ASSY, BELT ANCHOR, NO.2 LH

main57804-0R030iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54201812-202211

58136CCOVER, REAR FLOOR HOLE

main58136-0R020iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54201812-202211

58202CPAN SUB-ASSY, CENTER FLOOR, FRONT

main58202-0R050iAXAA52..M..CND201812-202211

main58202-0R060iAXAH54,AXAL54201903-202211

58211JPAN, CENTER FLOOR

main58211-0R040iAXAA5#201812-202211

main58211-0R050iAXAH54,AXAL54201903-202211

58213EPANEL, SEAT FLOOR SIDE, RH

main58213-0R030iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54201812-202211

58214BPANEL, SEAT FLOOR SIDE, LH

main58214-0R030iAXAH54201812-202211

main58214-0R060iAXAH54,AXAL54202007-202211

58303LPANEL SUB-ASSY, REAR FLOOR PARTITION

main58303-0R030iAXAA5#,AXAH54,AXAL54201812-202211

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-0R070iAXAA5#,AXAH54,AXAL54201812-202111

sub58307-0R071

main58307-0R130iAXAA5#,AXAH54,AXAL54202112

58308DBRACKET SUB-ASSY, REAR FLOOR CROSSMEMBER

main58308-0R020iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54201812-202211

58311PAN, REAR FLOOR

main58311-0R900iAXAA52..M..CND201812-202312

sub58311-0R902

main58311-0R901iAXAH54,AXAL54201903-202312

sub58311-0R903

main58311-0R902iAXAA54;AXAA52..G,X;AXAA52..M..USA202312

main58311-0R903iAXAH54,AXAL54202312

58313KPANEL, REAR FLOOR, RH

main58313-0R040iAXAA5#201812-202211

58314KPANEL, REAR FLOOR, CENTER

main58314-0R030iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54201812-202211

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-0R020iAXAA5#201812-202211

58334BPLATE, REAR FLOOR CROSSMEMBER, CENTER RH

main58334-0R020iAXAA5#,AXAH54,AXAL54201812-202211

58335EPLATE, REAR FLOOR CROSSMEMBER, CENTER LH

main58334-0R020iAXAA5#,AXAH54,AXAL54201812-202211

58386BBRACKET, REAR BUMPER COVER, NO.2

main58386-0R030iAXAA5#,AXAH54,AXAL54201812-202009

9011906A06

main90119-06A06

90119A0105

main90119-A0105

90119A0186

main90119-A0186

90119A0255

main90119-A0255

9046709075

main90467-09075

34 parts on this diagram · 2 diagrams in section
