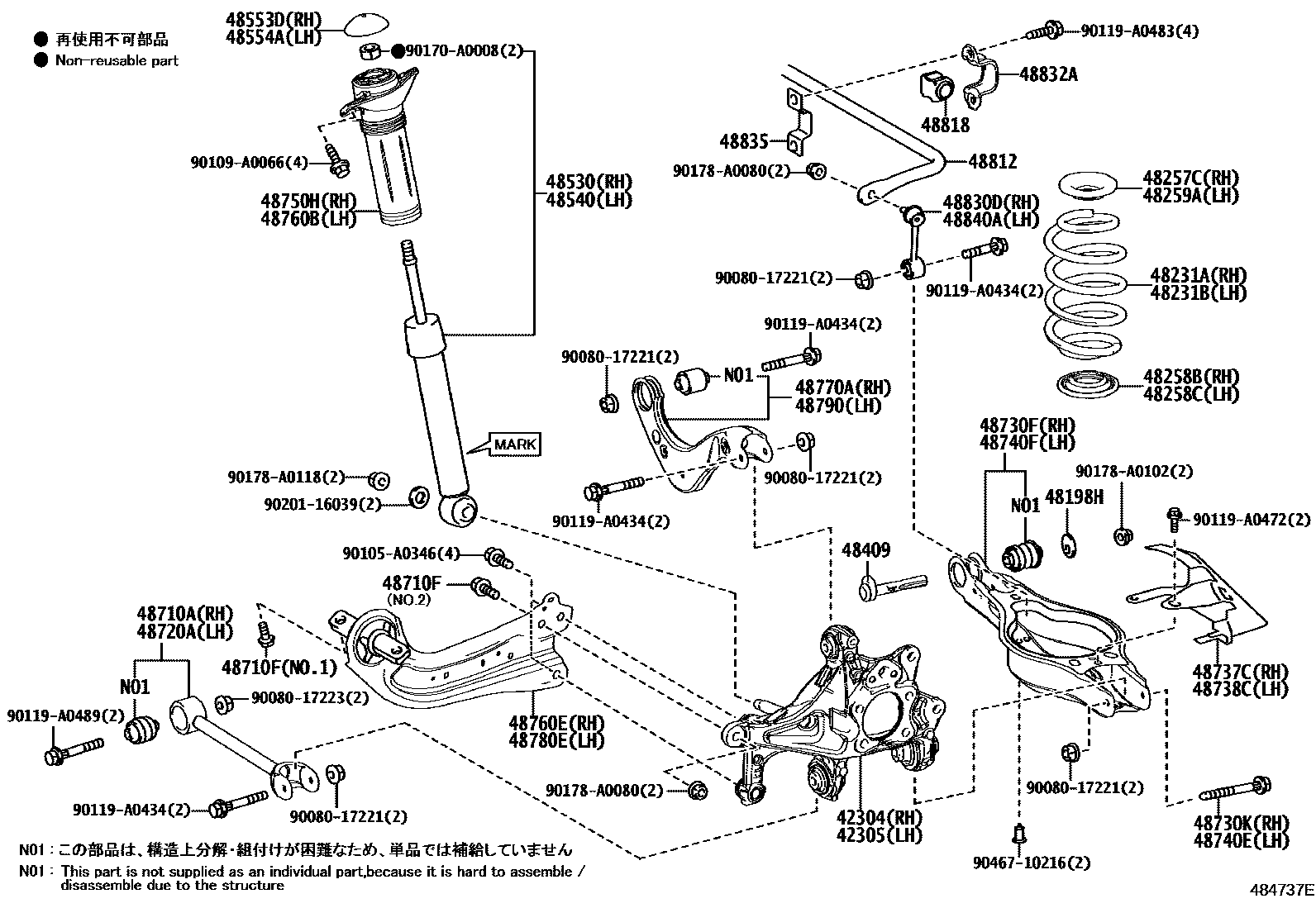

REAR SPRING & SHOCK ABSORBER

42304CARRIER SUB-ASSY, REAR AXLE, RH

main42304-0R090iAXAA52201812-202211

main42304-0R100iAXAA54,AXAH54,AXAL54201812-202211

42305CARRIER SUB-ASSY, REAR AXLE, LH

main42305-0R090iAXAA52..G,X;AXAA52..M..USA201812-202211

main42305-0R100iAXAA54,AXAH54,AXAL54201812-202211

48198HCAM, CAMBER ADJUST, NO.2

main48198-07010iAXAA5#,AXAH54,AXAL54201912-202211

(L)

main48198-47010iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54201912-202211

(J)

main48198-47010iAXAA5#,AXAH54201812-201912

48231ASPRING, COIL, REAR RH

main48231-0R240iAXAA52..M,X201812-201912

sub48231-0R241

main48231-0R241iAXAA52..M,X202001-202304

sub48231-0R242

main48231-0R242iAXAA52..X202305

main48231-0R250iAXAA52..G201812-201912

sub48231-0R251

main48231-0R251iAXAA52..G202001-202304

main48231-0R252iAXAA52..(G,M)..USA202305

main48231-0R260iAXAA54..M,X201812-201912

sub48231-0R261

main48231-0R261iAXAA54..M,X202001-202112

main48231-0R270iAXAA54..V201812-201912

TRD OFFROAD PACKAGE

sub48231-0R271

main48231-0R271iAXAA54..V202001-202112

TRD OFFROAD PACKAGE

main48231-0R280iAXAH54..M,X201903-201912

sub48231-0R281

main48231-0R281iAXAH54,AXAL54..M,X202001-202211

sub48231-0R282

main48231-0R281iAXAH54,AXAL54..M202211-202304

WOODLAND EDITION

sub48231-0R282

main48231-0R282iAXAH54,AXAL54..M202305

WOODLAND EDITION

main48231-0R290iAXAH54..G201903-201912

sub48231-0R291

main48231-0R291iAXAH54,AXAL54..G202001-202304

sub48231-0R292

main48231-0R292iAXAH54,AXAL54..G202305

main48231-0R540iAXAH54..M201903-201912

WITH(BODY STRIPE)

sub48231-0R541

main48231-0R541iAXAH54,AXAL54..M202001-202112

WITH(BODY STRIPE)

sub48231-0R542

main48231-0R550iAXAA54..M,X202112-202304

main48231-0R551iAXAA54..M,X202305

main48231-0R660iAXAA54..V202112-202304

TRD OFFROAD PACKAGE

main48231-0R661iAXAA54..V202305

TRD OFFROAD PACKAGE

main48231-0R670iAXAH54,AXAL54..P,S202112-202304

main48231-0R671iAXAH54,AXAL54..P,S202305

main48231-42540iAXAA52..(M,X)..USA202010-202211

MEXICO SPEC

main48231-42590iAXAA54..(G,V)..USA202010-202211

MEXICO SPEC

main48231-42630iAXAH54..G..USA202010-202211

MEXICO SPEC

48231BSPRING, COIL, REAR LH

main48231-0R240iAXAA52..M,X201812-201912

sub48231-0R241

main48231-0R241iAXAA52..X202001-202304

sub48231-0R242

main48231-0R242iAXAA52..X202305

main48231-0R250iAXAA52..G201812-201912

sub48231-0R251

main48231-0R251iAXAA52..(G,M)..USA202001-202304

main48231-0R252iAXAA52..(G,M)..USA202305

main48231-0R260iAXAA54..M,X201812-201912

sub48231-0R261

main48231-0R261iAXAA54..M,X202001-202112

main48231-0R270iAXAA54..G,V201812-201912

TRD OFFROAD PACKAGE

sub48231-0R271

main48231-0R271iAXAA54..G,V202001-202112

TRD OFFROAD PACKAGE

main48231-0R280iAXAH54..M,X201903-201912

sub48231-0R281

main48231-0R281iAXAH54,AXAL54..M,X202001-202211

sub48231-0R282

main48231-0R281iAXAH54,AXAL54..M202211-202304

WOODLAND EDITION

sub48231-0R282

main48231-0R282iAXAH54,AXAL54..M202305

WOODLAND EDITION

main48231-0R290iAXAH54..G201903-201912

sub48231-0R291

main48231-0R291iAXAH54,AXAL54..G202001-202304

sub48231-0R292

main48231-0R292iAXAH54,AXAL54..G202305

main48231-0R540iAXAH54..M201903-201912

WITH(BODY STRIPE)

sub48231-0R541

main48231-0R541iAXAH54,AXAL54..M202001-202112

WITH(BODY STRIPE)

sub48231-0R542

main48231-0R550iAXAA54..M,X202112-202304

main48231-0R551iAXAA54..M,X202305

main48231-0R660iAXAA54..G,V202112-202304

TRD OFFROAD PACKAGE

main48231-0R661iAXAA54..V202305

TRD OFFROAD PACKAGE

main48231-0R670iAXAH54,AXAL54..P,S202112-202304

main48231-0R671iAXAH54,AXAL54..P,S202305

main48231-42540iAXAA52..(M,X)..USA202010-202211

MEXICO SPEC

main48231-42590iAXAA54..(G,V)..USA202010-202211

MEXICO SPEC

main48231-42630iAXAH54..G..USA202010-202211

MEXICO SPEC

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-06030iAXAA5#,AXAH54,AXAL54201812-202211

48258BINSULATOR, REAR COIL SPRING, LOWER RH

main48258-06230iAXAA5#,AXAH54,AXAL54201812-202211

48258CINSULATOR, REAR COIL SPRING, LOWER LH

main48258-06230iAXAA52..M..CND201812-202211

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-06030iAXAA5#,AXAH54,AXAL54201812-202211

48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST

main48409-06010iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54201912-202211

(L)

main48409-47011iAXAA5#,AXAH54201812-201912

main48409-47011iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54201912-202211

(J)

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-80895iAXAA52..(M,X)..USA202010-202211

MARK 48530-42190,MEXICO SPEC

main48530-80896iAXAA54..(G,V)..USA202010-202211

MARK 48530-42120,MEXICO SPEC

main48530-80898iAXAH54..G..USA202010-202211

MARK 48530-42140,MEXICO SPEC

main48530-8Z092iAXAA52201812-202009

MARK 48530-0R010

main48530-8Z093iAXAA54..V201812-202009

MARK 48530-0R270, TRD OFFROAD PACKAGE

main48530-8Z093iAXAA54201812-202211

MARK 48530-0R270

main48530-8Z093iAXAA54202009-202211

MARK 48530-0R270,TRD OFFROAD PACKAGE

main48530-8Z094iAXAH54,AXAL54..M201903-202112

MARK 48530-0R280,WITH(BODY STRIPE)

main48530-8Z094iAXAH54,AXAL54..P,S202112-202211

MARK 48530-0R280

main48530-8Z095iAXAH54,AXAL54..G,M,X201903-202211

MARK 48530-0R020

main48530-8Z095iAXAH54,AXAL54..G,M,X202211

MARK 48530-0R020,WOODLAND EDITION

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-80895iAXAA52..(M,X)..USA202010-202211

MARK 48530-42190,MEXICO SPEC

main48530-80896iAXAA54..(G,V)..USA202010-202211

MARK 48530-42120,MEXICO SPEC

main48530-80898iAXAH54..G..USA202010-202211

MARK 48530-42140,MEXICO SPEC

main48530-8Z092iAXAA52..G,X;AXAA52..M..USA201812-202009

MARK 48530-0R010

main48530-8Z093iAXAA54..V201812-202211

MARK 48530-0R270

main48530-8Z093iAXAA54201812-202009

MARK 48530-0R270, TRD OFFROAD PACKAGE

main48530-8Z093iAXAA54202009-202211

MARK 48530-0R270,TRD OFFROAD PACKAGE

main48530-8Z094iAXAH54,AXAL54..P,S202112-202211

MARK 48530-0R280

main48530-8Z094iAXAH54,AXAL54..M201903-202112

MARK 48530-0R280,WITH(BODY STRIPE)

main48530-8Z095iAXAH54,AXAL54..G,M,X202211

MARK 48530-0R020,WOODLAND EDITION

main48530-8Z095iAXAH54,AXAL54..M201903-202211

MARK 48530-0R020

48553DCAP, REAR SHOCK ABSORBER, RH

main48553-06010iAXAA5#,AXAH54,AXAL54201812-202211

48554ACAP, REAR SHOCK ABSORBER, LH

main48553-06010iAXAA5#,AXAH54,AXAL54201812-202211

48710AARM ASSY, REAR SUSPENSION, NO.1 RH

main48710-0R050iAXAA5#,AXAH54,AXAL54201812-202211

48710FBOLT(FOR REAR TRAILING ARM)

main90119-A0346iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54201812-202211

NO.2:REFER ILLUST.

main90119-A0491iAXAA5#,AXAH54,AXAL54201812-202211

NO.1:REFER ILLUST.

48720AARM ASSY, REAR SUSPENSION, NO.1 LH

main48710-0R050iAXAA5#,AXAH54,AXAL54201812-202211

48730FARM ASSY, REAR SUSPENSION, NO.2 RH

main48730-0R050iAXAA5#,AXAH54,AXAL54201812-202211

48730KBOLT(FOR REAR SUSPENSION ARM NO.2 RH)

main90119-A0433iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54201812-202211

48737CCOVER, LOWER CONTROL ARM, RH NO.2

main48737-0R010iAXAA5#,AXAH54,AXAL54201812-202211

48738CCOVER, LOWER CONTROL ARM, LH NO.2

main48738-0R010iAXAA5#,AXAH54,AXAL54201812-202211

48740EBOLT(FOR REAR SUSPENSION ARM NO.2 LH)

main90119-A0433iAXAA5#,AXAH54,AXAL54201812-202211

48740FARM ASSY, REAR SUSPENSION, NO.2 LH

main48730-0R050iAXAA5#,AXAH54,AXAL54201812-202211

48750HSUPPORT ASSY, REAR SUSPENSION, RH

main48750-0R010iAXAA5#,AXAH54,AXAL54201812-202211

48760BSUPPORT ASSY REAR SUSPENSION, LH

main48750-0R010iAXAA5#,AXAH54,AXAL54201812-202211

48760EARM ASSY, TRAILING, REAR RH

main48760-0R040iAXAA5#,AXAH54,AXAL54201812-202211

48770AARM ASSY, UPPER CONTROL, REAR RH

main48770-0R020iAXAA5#,AXAH54,AXAL54201812-202211

48780EARM ASSY, TRAILING, REAR LH

main48780-0R040iAXAA5#,AXAH54,AXAL54201812-202211

48790ARM ASSY, UPPER CONTROL, REAR LH

main48790-0R020iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54201812-202211

48812BAR, STABILIZER, REAR

main48812-0R050iAXAA5#201812-202211

main48812-0R060iAXAH54,AXAL54202010-202211

MEXICO SPEC

main48812-0R060iAXAH54,AXAL54201903-202211

48818BUSH, STABILIZER, REAR

main48818-0R050iAXAA54;AXAA52..G,X;AXAA52..M..USA201812-202211

main48818-0R060iAXAA54..(G,V)..USA202010-202211

MEXICO SPEC

main48818-0R060iAXAH54,AXAL54201903-202211

48830DLINK ASSY, REAR STABILIZER, RH

main48830-0R030iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54201812-202211

48832ABRACKET, REAR STABILIZER BAR, NO.1

main48832-0R031iAXAA5#,AXAH54,AXAL54201812-202211

48835BRACKET, REAR STABILIZER, LOWER

main48835-0R010iAXAA52..M..CND201812-202211

48840ALINK ASSY, REAR STABILIZER, LH

main48830-0R030iAXAA5#,AXAH54,AXAL54201812-202211

9008017221

main90080-17221

9008017223

main90080-17223

90105A0346

main90105-A0346

90109A0066

main90109-A0066

90119A0434

main90119-A0434

90119A0472

main90119-A0472

90119A0483

main90119-A0483

90119A0489

main90119-A0489

90170A0008

main90170-A0008

90178A0080

main90178-A0080

90178A0102

main90178-A0102

90178A0118

main90178-A0118

9020116039

main90201-16039

9046710216

main90467-10216

49 parts on this diagram · 1 diagram in section
