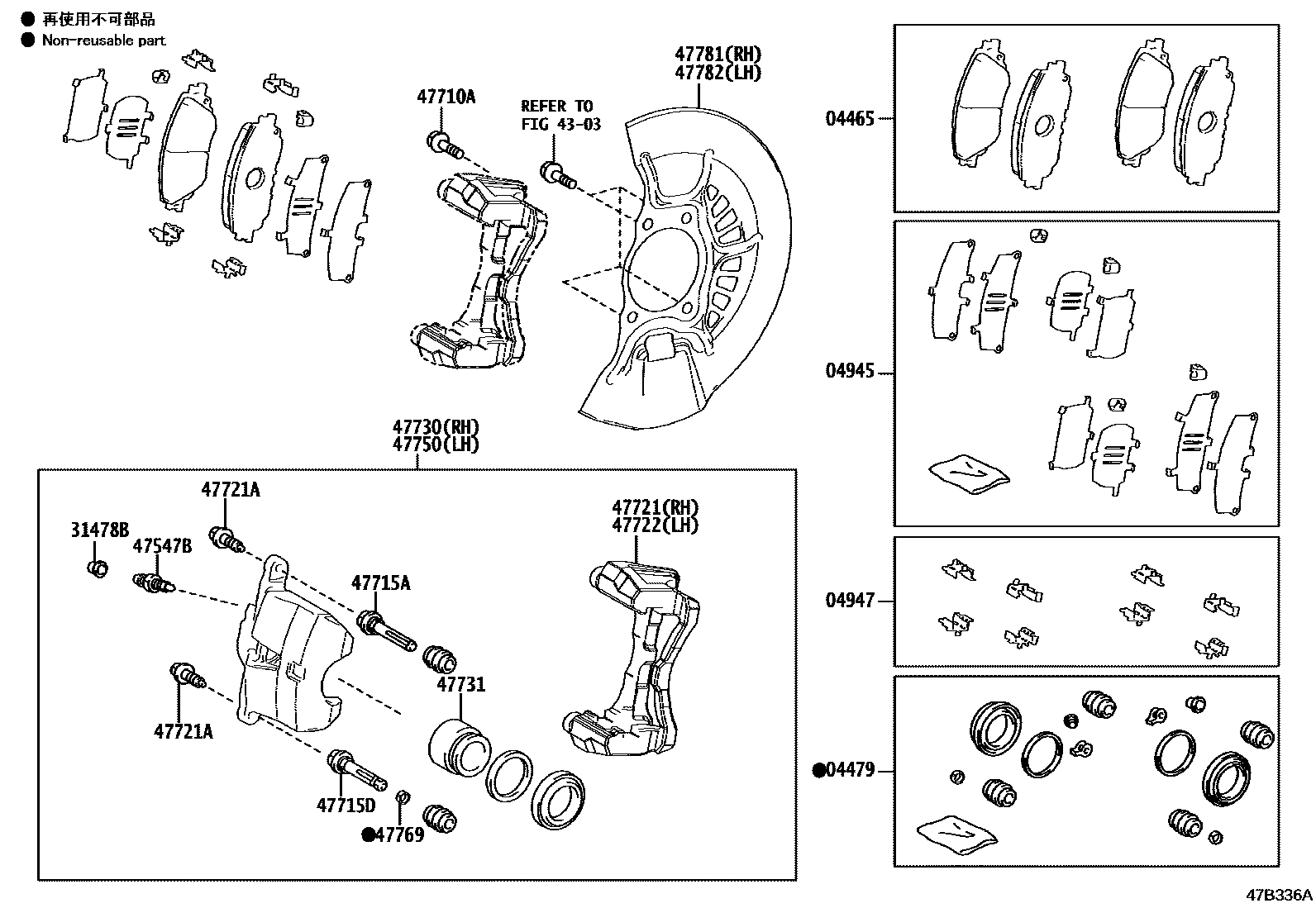

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-0E060iAXAA5#,AXAH54,AXAL54201812-202009

MARK NBK D6994H

main04465-0E080iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54202411

MARK NBK D6504H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-0E061iAXAA5#,AXAH54,AXAL54201812-202009

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-0E071iAXAA5#,AXAH54,AXAL54201812-202009

main04945-0E072iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54202411

04947FITTING KIT, DISC BRAKE, FRONT

main04947-0E031iAXAA5#,AXAH54,AXAL54201812-202009

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iAXAA5#,AXAH54,AXAL54201812-202009

4303

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12130×2iAXAA5#,AXAH54,AXAL54201812-202009

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90080-10067×4iAXAA52;AXAA54..X201812-202009

*12-1.25PX29.5-23

main90105-12401×4iAXAA54..G,V,X;AXAH54,AXAL54202009-202211

*12-1.25PX35.5-30

main90105-A0437×4iAXAA52..G;AXAA54..G,V,X;AXAH54,AXAL54202211

*12-1.25PX35.5-30,(L)

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-04080×2iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54202211-202411

main47715-08040×2iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54202411

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-33340×2iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54202009-202211

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-06322iAXAA5#,AXAH54,AXAL54201812-202009

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90016-AA103×4iAXAA52..M..CND202009

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-06322iAXAA52..M..CND202009

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-06321iAXAA5#,AXAH54,AXAL54201812-202009

47731PISTON, FRONT DISC BRAKE

main47731-06320×2iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54202009-202211

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-06321iAXAA52..M..CND202009

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-50010×2iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54202009-202211

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-06180iAXAA54..(G,V)..USA202009-202211

MEXICO SPEC

main47781-42070iAXAA52..G202112-202211

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-06180iAXAA54..(G,V)..USA202009-202211

MEXICO SPEC

main47782-42070iAXAA52..G202112-202211

19 parts on this diagram · 1 diagram in section
