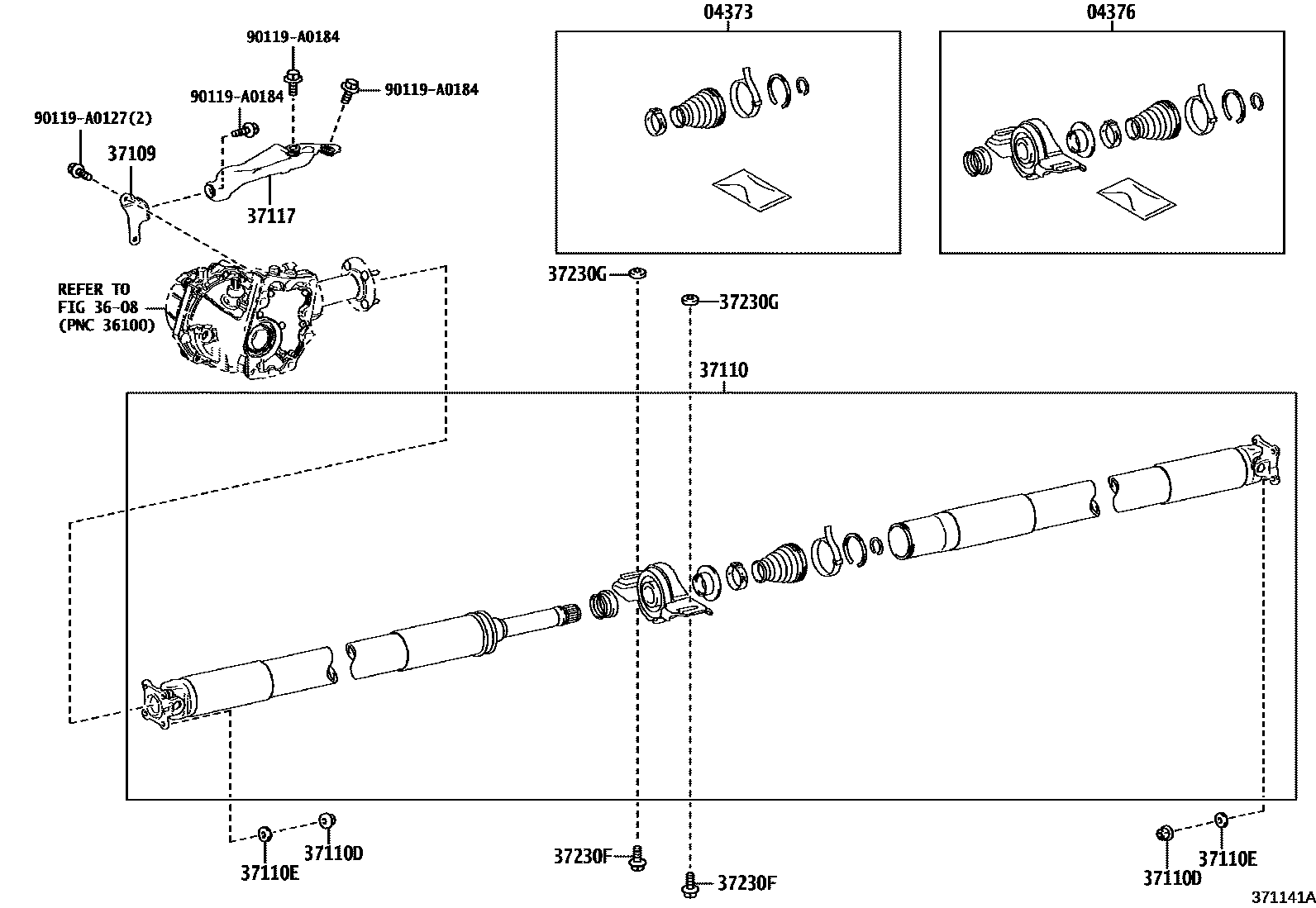

PROPELLER SHAFT & UNIVERSAL JOINT

04373BOOT KIT, UNIVERSAL

main04373-52010iAXAA54201812-202211

04376BEARING KIT, CENTER SUPPORT

main04376-52020iAXAA54201812-202211

3608

37109BRACKET SUB-ASSY, PROPELLER SHAFT HEAT INSULATOR, NO.1

main37109-0R010iAXAA54201812-202211

37110SHAFT ASSY, PROPELLER

main37100-42070iAXAA54..M,X201812-202211

main37100-42100iAXAA54..G,V201812-202211

37110DNUT (FOR PROPELLER SHAFT)

main90179-08197iAXAA54201812-202211

37110EWASHER (FOR PROPELLER SHAFT)

main90201-08097iAXAA54201812-202211

37117INSULATOR, PROPELLER SHAFT HEAT

main37117-0R010iAXAA54201812-202211

37230FBOLT, NO.1 (FOR CENTER SUPPORT BEARING)

main90119-A0246iAXAA54201812-202211

*10-1.25PX35-35

37230GWASHER, NO.2 (FOR CENTER SUPPORT BEARING)

main90201-10081iAXAA54201812-202211

T=4.5

main90201-10083iAXAA54201812-202211

T=6.5

main90201-10123iAXAA54201812-202211

T=2.0

90119A0127

main90119-A0127

90119A0184

main90119-A0184

12 parts on this diagram · 1 diagram in section
