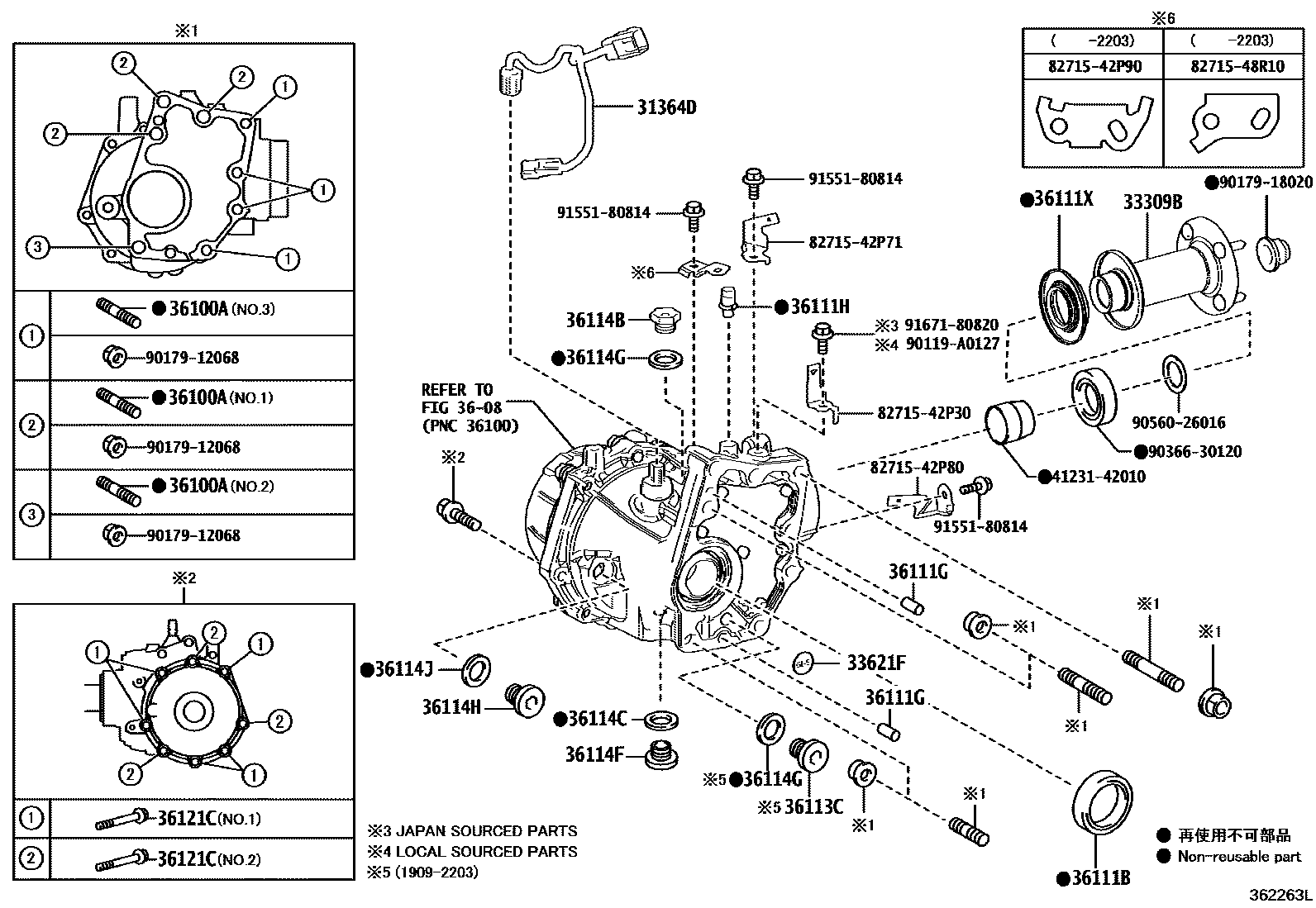

TRANSFER CASE & EXTENSION HOUSING
31364DWIRE, CLUTCH CONTROL SOLENOID
33309BFLANGE SUB-ASSY, OUTPUT SHAFT COMPANION
33621FLABEL, TRANSAXLE OIL INFORMATION
3608
36100ABOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING)
S=19 & 19,L=47,(L),NO.1:SEE ILLUST
S=22 & 22,L=69,NO.1:REFER ILLUST.
S=19 & 19,L=47,NO.2:REFER ILLUST.
S=19 & 19,L=47,(J),NO.1:SEE ILLUST
S=30 & 22,L=64,NO.2:REFER ILLUST.
S=30 & 22,L=64,NO.3:REFER ILLUST.
36111BSEAL, OIL (FOR TRANSFER CASE)
36111GPIN, STRAIGHT (FOR TRANSFER CASE)
L=20,OD=10
36111HPLUG, BREATHER (FOR TRANSFER CASE)
36111XSEAL, OIL (FOR TRANSFER CASE), NO.2
36113CPLUG (FOR TRANSFER CASE)
sub90341-18044
36114BPLUG, NO.1 (FOR TRANSFER CASE)
36114CGASKET, NO.1 (FOR TRANSFER CASE)
36114FPLUG (FOR TRANSFER DRAIN)
36114GGASKET (FOR TRANSFER DRAIN PLUG)
36114HPLUG, NO.2 (FOR TRANSFER CASE)
36114JGASKET, NO.2 (FOR TRANSFER CASE)
36121COVER, TRANSFER CASE, NO.1
36121CBOLT, WASHER BASED HEAD HEXAGON (FOR TRANSFER CASE COVER)
NO.2:REFER ILLUST.
NO.1:REFER ILLUST.
NO.1 & NO.2
4123142010SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
main41231-42010
8271542P30BRACKET,WIRING HARNESS CLAMP
main82715-42P30
8271542P71BRACKET,WIRING HARNESS CLAMP
main82715-42P71
8271542P80BRACKET,WIRING HARNESS CLAMP
main82715-42P80
8271542P90BRACKET,WIRING HARNESS CLAMP
main82715-42P90
8271548R10BRACKET,WIRING HARNESS CLAMP
main82715-48R10
90119A0127
main90119-A0127
9017912068
main90179-12068
9017918020
main90179-18020
9036630120
main90366-30120
9056026016
main90560-26016
9155180814
main91551-80814
9167180820
main91671-80820
31 parts on this diagram · 2 diagrams in section
