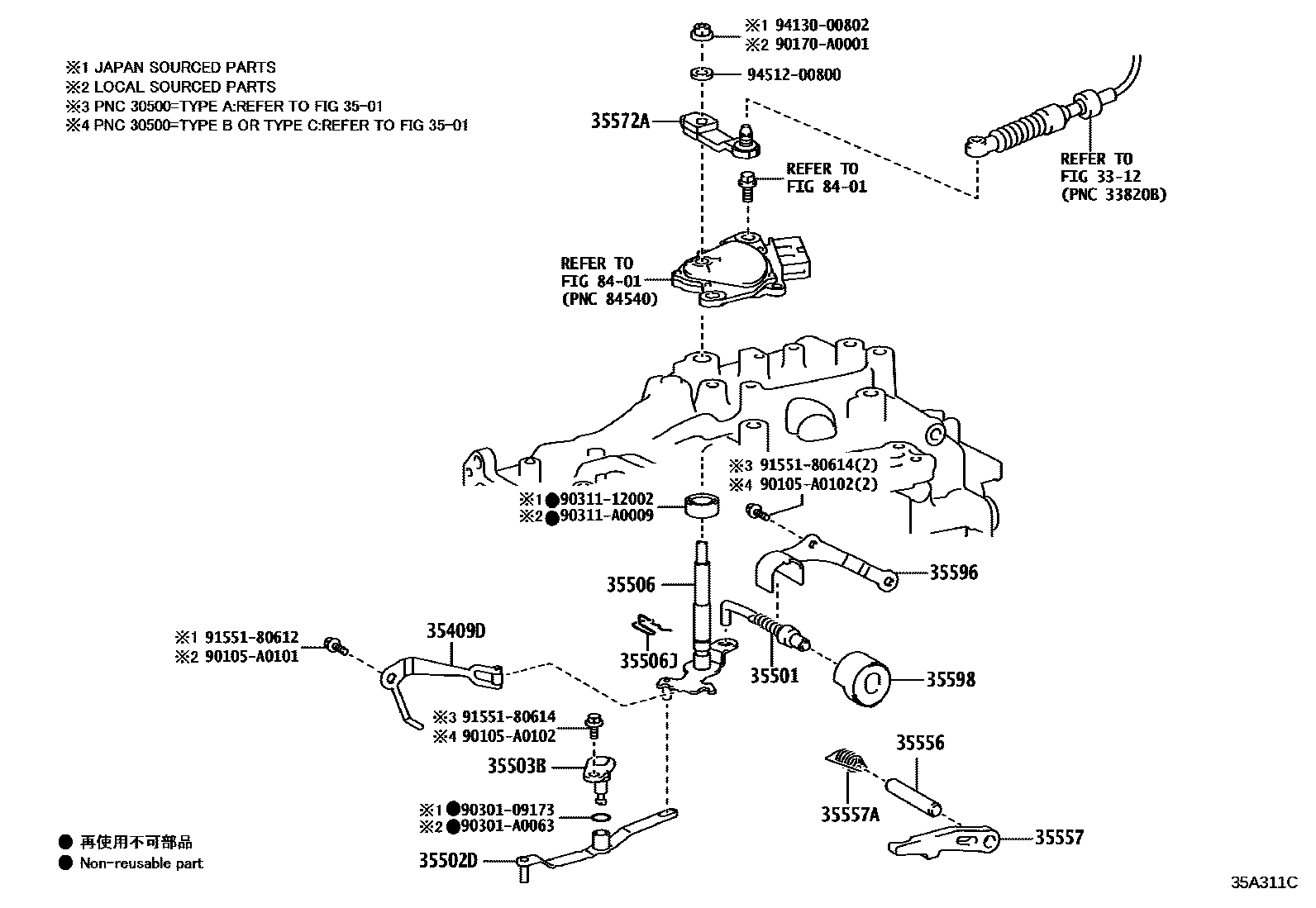

THROTTLE LINK & VALVE LEVER (ATM)

3312

35409DSPRING SUB-ASSY, MANUAL DETENT

main35409-48060iAXAA5#¥400201812-202211

TYPE A:REFER 35-01

main35409-48060iAXAA54;AXAA52..G,X;AXAA52..M..CND¥400201812-202211

TYPE B:REFER 35-01

main35409-48060iAXAA52..G,X;AXAA52..M..CND¥400202004-202211

TYPE C:REFER 35-01

main35409-48060iAXAA52..G,X¥400202211-202310

TYPE C:REFER 35-01,TYPE A:REFER 35-01

main35409-48060iAXAA54¥400202211

MEXICO SPEC,TYPE A:REFER 35-01

35501ROD SUB-ASSY, PARKING LOCK

main35501-33030iAXAA52..M..USA¥1,240201812-202211

TYPE A:REFER 35-01

main35501-33030iAXAA5#¥1,240201812-202211

TYPE B:REFER 35-01

main35501-33030iAXAA52..G,X;AXAA52..M..CND¥1,240202004-202211

TYPE C:REFER 35-01

main35501-33030iAXAA52..G,X¥1,240202211-202310

TYPE C:REFER 35-01,TYPE A:REFER 35-01

main35501-33030iAXAA54¥1,240202211

MEXICO SPEC,TYPE A:REFER 35-01

35502DLEVER SUB-ASSY, MANUAL VALVE LINK

main35502-33010iAXAA54;AXAA52..G,X¥230201812-202211

TYPE B:REFER 35-01

main35502-33010iAXAA52..M..USA¥230201812-202211

TYPE A:REFER 35-01

main35502-33010iAXAA52..G,X;AXAA52..M..CND¥230202004-202211

TYPE C:REFER 35-01

main35502-33010iAXAA52..G,X¥230202211-202310

TYPE C:REFER 35-01,TYPE A:REFER 35-01

main35502-33010iAXAA54¥230202211

MEXICO SPEC,TYPE A:REFER 35-01

35503BSHAFT SUB-ASSY, MANUAL VALVE LINK

main35503-48010iAXAA54;AXAA52..G,X;AXAA52..M..USA¥300201812-202211

TYPE A:REFER 35-01

main35503-48010iAXAA5#¥300201812-202211

TYPE B:REFER 35-01

main35503-48010iAXAA52..G,X;AXAA52..M..CND¥300202004-202211

TYPE C:REFER 35-01

main35503-48010iAXAA52..G,X¥300202211-202310

TYPE C:REFER 35-01,TYPE A:REFER 35-01

main35503-48010iAXAA54¥300202211

MEXICO SPEC,TYPE A:REFER 35-01

35506SHAFT SUB-ASSY, MANUAL VALVE LEVER

main35506-06030iAXAA52..G,X;AXAA52..M..CND202004-202310

TYPE C:REFER 35-01

main35506-06030iAXAA52..G,X202210-202211

MEXICO SPEC,TYPE C:REFER 35-01

main35506-06031iAXAA52..G,X202111-202210

TYPE C:REFER 35-01

main35506-06031iAXAA52..G,X202111-202210

MEXICO SPEC,TYPE C:REFER 35-01

main35506-33040iAXAA54;AXAA52..G,X201812-202205

TYPE B:REFER 35-01

main35506-33040iAXAA54;AXAA52..G,X201812-202205

TYPE A:REFER 35-01

main35506-33041iAXAA5#202205

TYPE B:REFER 35-01,TYPE A:REFER 35-01

main35506-33041iAXAA52..G,X202211-202310

TYPE A:REFER 35-01

main35506-33041iAXAA54202211

TYPE B:REFER 35-01

main35506-33041iAXAA54202211

MEXICO SPEC,TYPE A:REFER 35-01

35506JSPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT)

main90524-09004iAXAA54;AXAA52..G,X;AXAA52..M..USA¥60201812-202211

TYPE A:REFER 35-01

main90524-09004iAXAA5#¥60201812-202211

TYPE B:REFER 35-01

main90524-09004iAXAA52..G,X;AXAA52..M..CND¥60202004-202211

TYPE C:REFER 35-01

main90524-09004iAXAA52..G,X¥60202211-202310

TYPE C:REFER 35-01,TYPE A:REFER 35-01

main90524-09004iAXAA54¥60202211

MEXICO SPEC,TYPE A:REFER 35-01

35556SHAFT, PARKING LOCK PAWL

main35556-06010iAXAA52..G,X;AXAA52..M..CND202004-202010

TYPE C:REFER 35-01

sub35556-48030¥520

main35556-48030iAXAA52..G,X¥520202010-202310

TYPE C:REFER 35-01

main35556-48030iAXAA52..G,X¥520202010-202211

MEXICO SPEC,TYPE C:REFER 35-01

main35556-48040iAXAA54201812-202310

TYPE A:REFER 35-01

main35556-48040iAXAA54201812-202211

TYPE B:REFER 35-01

main35556-48040iAXAA54202211

MEXICO SPEC,TYPE A:REFER 35-01

35557PAWL, PARKING LOCK

main35557-33040iAXAA54;AXAA52..G,X;AXAA52..M..USA¥2,810201812-202211

TYPE B:REFER 35-01

main35557-33040iAXAA54;AXAA52..G,X;AXAA52..M..USA¥2,810202211

MEXICO SPEC,TYPE A:REFER 35-01

main35557-33040iAXAA52..M..USA¥2,810201812-202211

TYPE A:REFER 35-01

main35557-33040iAXAA52..G,X;AXAA52..M..CND¥2,810202004-202211

TYPE C:REFER 35-01

main35557-33040iAXAA52..G,X¥2,810202211-202310

TYPE C:REFER 35-01,TYPE A:REFER 35-01

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90508-29030iAXAA52..M..USA¥180201812-202211

TYPE A:REFER 35-01

main90508-29030iAXAA5#¥180201812-202211

TYPE B:REFER 35-01

main90508-29030iAXAA52..G,X;AXAA52..M..CND¥180202004-202211

TYPE C:REFER 35-01

main90508-29030iAXAA52..G,X¥180202211-202310

TYPE C:REFER 35-01,TYPE A:REFER 35-01

main90508-29030iAXAA54¥180202211

MEXICO SPEC,TYPE A:REFER 35-01

35572ALEVER, TRANSMISSION CONTROL SHAFT

main35572-48050iAXAA54;AXAA52..G,X;AXAA52..M..CND¥810201812-202009

TYPE B:REFER 35-01

sub35572-48051¥740

main35572-48050iAXAA52..M..USA¥810201812-202009

TYPE A:REFER 35-01

sub35572-48051¥740

main35572-48050iAXAA52..G,X;AXAA52..M..CND¥810202004-202111

TYPE C:REFER 35-01

sub35572-48051¥740

main35572-48050iAXAA5#¥810202009-202111

TYPE B:REFER 35-01,TYPE A:REFER 35-01

sub35572-48051¥740

main35572-48051iAXAA52..G,X¥740202111-202211

TYPE A:REFER 35-01

main35572-48051iAXAA52..G,X¥740202111-202211

TYPE B:REFER 35-01

main35572-48051iAXAA52..G,X¥740202111-202211

MEXICO SPEC,TYPE C:REFER 35-01,TYPE A:REFER 35-01

main35572-48051iAXAA54;AXAA52..G,X¥740202111-202211

TYPE C:REFER 35-01

main35572-48051iAXAA52..G,X¥740202211-202310

TYPE C:REFER 35-01,TYPE A:REFER 35-01

main35572-48051iAXAA54¥740202211

MEXICO SPEC,TYPE A:REFER 35-01

35596PLATE, PAWL STOPPER

main35596-33020iAXAA54;AXAA52..G,X201812-202211

TYPE A:REFER 35-01

main35596-33020iAXAA5#201812-202211

TYPE B:REFER 35-01

main35596-33020iAXAA52..G,X;AXAA52..M..CND202004-202211

TYPE C:REFER 35-01

main35596-33020iAXAA52..G,X202211-202310

TYPE C:REFER 35-01,TYPE A:REFER 35-01

main35596-33020iAXAA54202211

MEXICO SPEC,TYPE A:REFER 35-01

35598SLEEVE, PARKING LOCK

main35598-06020iAXAA52..M..CND201812-202211

TYPE B:REFER 35-01

main35598-06020iAXAA52..G,X202004-202310

TYPE C:REFER 35-01

main35598-48040iAXAA52..M..USA¥770202211

MEXICO SPEC,TYPE A:REFER 35-01

main35598-48040iAXAA54;AXAA52..G,X;AXAA52..M..CND¥770201812-202310

TYPE A:REFER 35-01

8401

90105A0101

main90105-A0101

90105A0102

main90105-A0102¥60

90170A0001

main90170-A0001

9030109173

main90301-09173¥140

90301A0063

main90301-A0063

9031112002

main90311-12002¥270

90311A0009

main90311-A0009

9155180612

main91551-80612¥60

9155180614

main91551-80614¥60

9413000802

main94130-00802¥90

9451200800

main94512-00800¥80

25 parts on this diagram · 1 diagram in section
